EVAP Canister Vent Shut Valve Replacement

  1. Raise the vehicle on a lift.
  2. Remove the EVAP canister cover (see step  2 ).
  3. Disconnect the EVAP canister vent shut valve 2P connector (A).

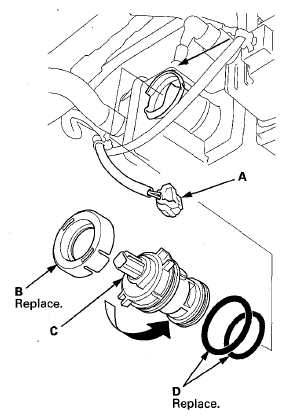

    Fig 1: Identifying EVAP Canister Vent Shut Valve
    G08075719Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the cap (B).
  5. Remove the EVAP canister vent shut valve (C).
  6. Install the parts in the reverse order of removal with new O-rings (D) and a new cap.
    NOTE: Do not coat the O-rings with oil.
