MAP Sensor Replacement

  1. Remove the engine cover (see step 1 on REMOVAL ).
  2. Disconnect the MAP sensor connector (A).

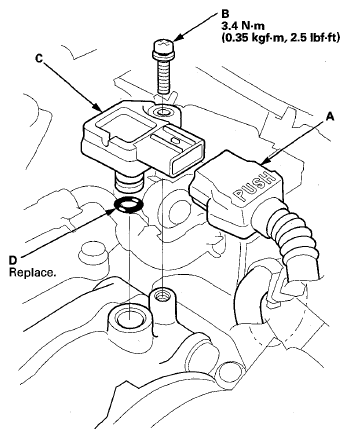

    Fig 1: MAP Sensor, Connector, Screw And O-Ring With Torque Specifications
    G08075656Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw (B).
  4. Remove the MAP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
