DTC P0685: Powertrain Control Module (PCM) Power Control Circuit/Internal Circuit Malfunction
>>
Notes
DTC P0685: Powertrain Control Module (PCM) Power Control Circuit/Internal Circuit Malfunction: Notes

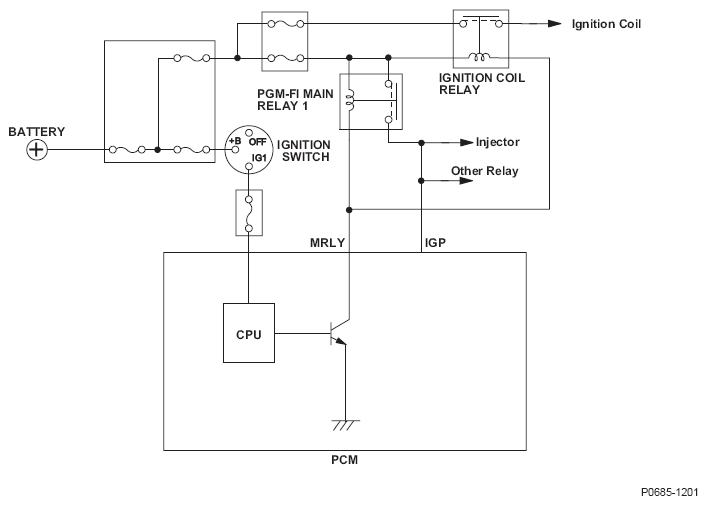

Fig 1: Powertrain Control Module Power Control Circuit
