Home >> Acura >> 2012 >> MDX >> Repair and Diagnosis >> Engine Performance >> System >> Advanced Diagnostics >> DTC P16BE: Starter Cut Relay 1 Malfunction >> Notes

DTC P16BE: Starter Cut Relay 1 Malfunction: Notes

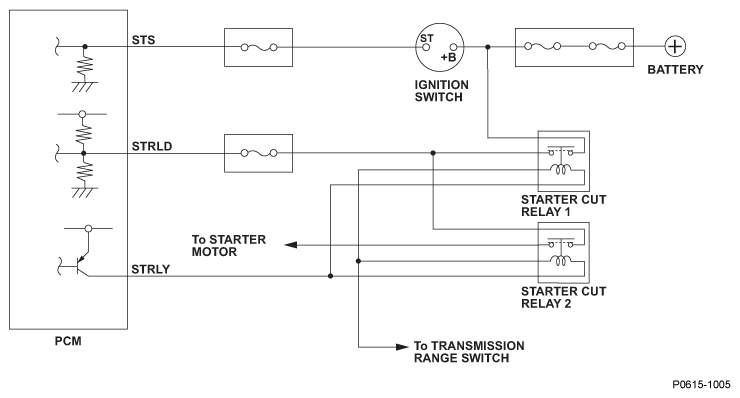

Fig 1: Starter Cut Relay Circuit Diagram

G06562762
