EGR Pipe Replacement

  1. Remove the EGR pipe mounting bolts (A).
    Fig 1: EGR Pipe Mounting Bolts With Torque Specifications
    G08052639Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Raise the vehicle on a lift.
  3. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  4. Remove the EGR pipe mounting nuts (A) and the EGR pipe (B).

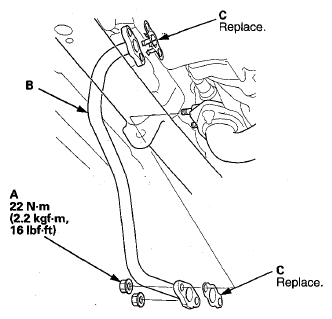

    Fig 2: EGR Pipe Mounting Nuts With Torque Specifications
    G08052640Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal with new gaskets (C).
