Home >> Acura >> 2012 >> TL Base >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Circuit Diagram >> With Keyless Access System-M/T model

With Keyless Access System-M/T model

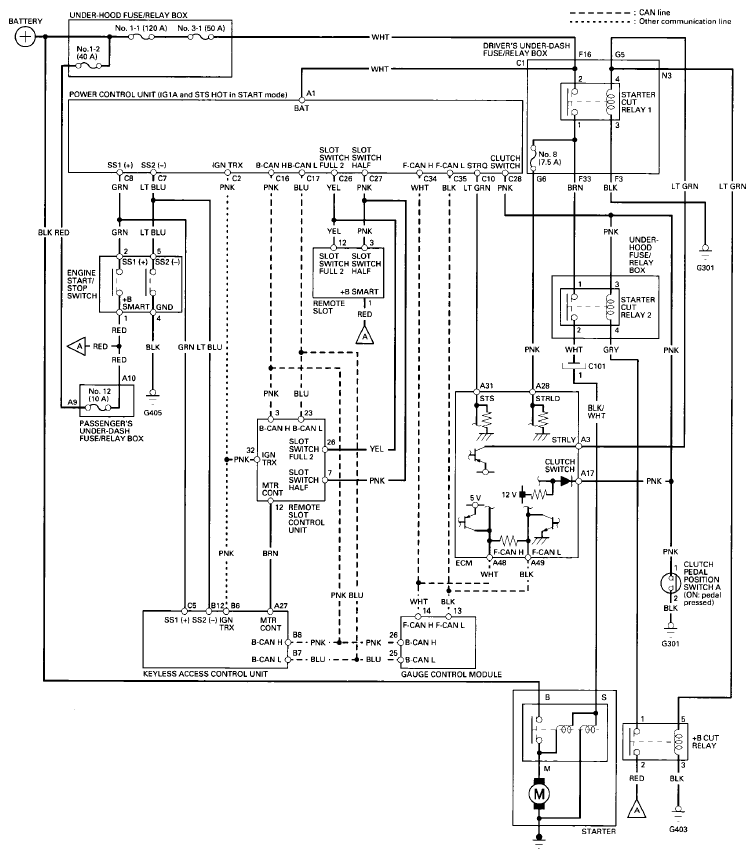

Fig 1: Starting System - Circuit Diagram (With Keyless Access System-M/T Model)

G08068517

Courtesy of AMERICAN HONDA MOTOR CO., INC.
