DTC U0122: F-CAN Malfunction (Engine Control Module (ECM)/Powertrain Control Module (PCM)-VSA Modulator-Control Unit): Notes

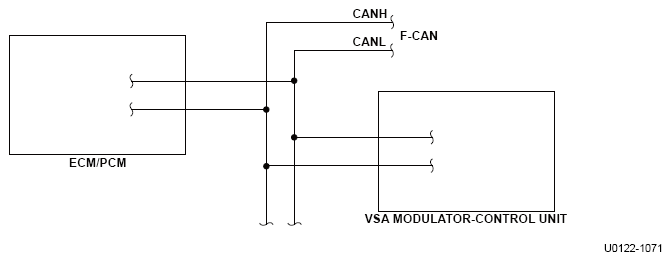

Fig 1: Engine Control Module/Powertrain Control Module And F-CAN - Circuit Diagram (VSA Modulator-Control Unit)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
