Home >> Acura >> 2012 >> TL Base >> Repair and Diagnosis >> Engine Performance >> System >> EGR System >> EGR Pipe Replacement

EGR Pipe Replacement

  1. Raise the vehicle on a lift.
  2. Remove the splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
  3. Remove the mounting nuts (A).
    Fig 1: Mounting Nuts With Torque Specifications
    G08069866Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Lower the vehicle.
  5. Remove the mounting bolts (A).

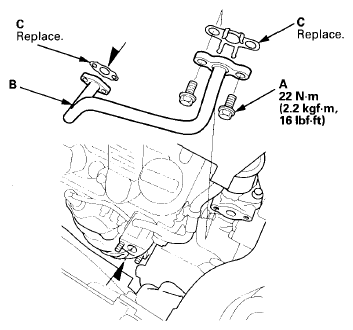

    Fig 2: EGR Pipe, Gasket And Mounting Nuts With Torque Specifications
    G08069867Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the EGR pipe (B).
  7. Install the parts in the reverse order of removal with new gaskets (C).
