MAP Sensor Replacement

  1. Disconnect the MAP sensor connector (A).

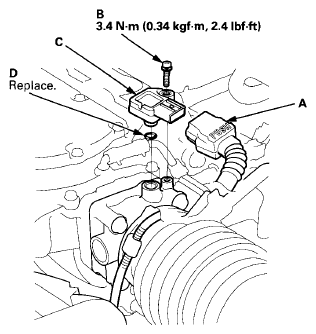

    Fig 1: MAP Sensor Connector, Screw, MAP Sensor And O-Ring With Torque Specifications
    G08069576Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screw (B).
  3. Remove the MAP sensor (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
