Rocker Arm Oil Control Solenoid Replacement

  1. Disconnect the rocker arm oil control solenoid connector (A).

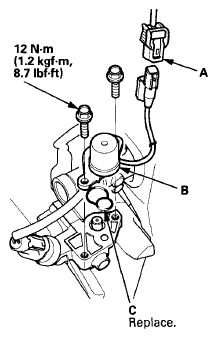

    Fig 1: Rocker Arm Oil Control Solenoid, Connector And O-Ring With Torque Specifications
    G08069678Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the rocker arm oil control solenoid (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
