Component Location Index: Overview

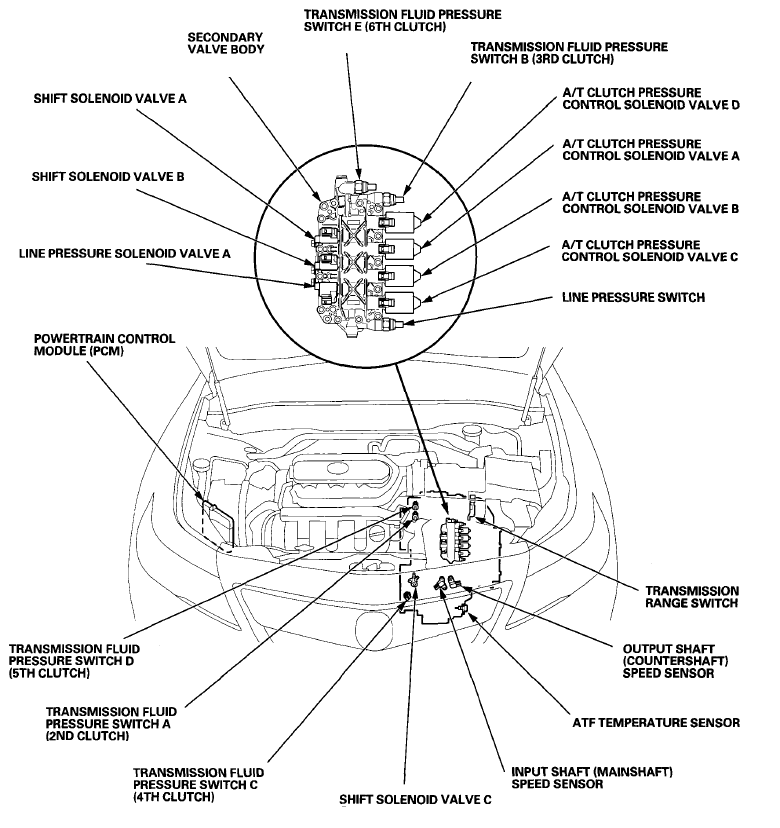

Fig 1: Identifying Automatic Transmission Components Location (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Automatic Transmission Components Location (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

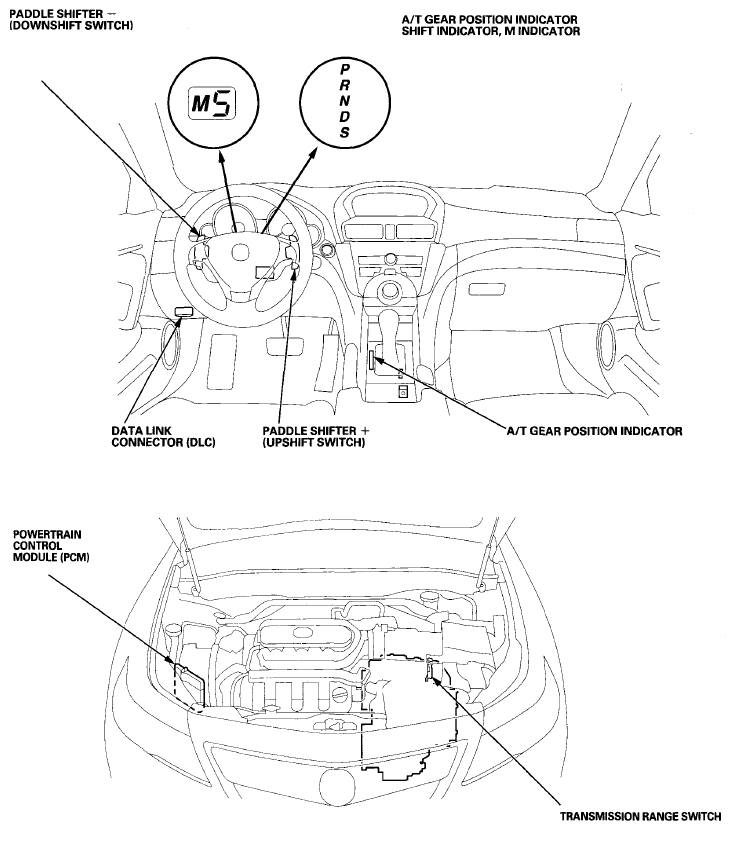

Fig 1: Identifying A/T Gear Position Indicator Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

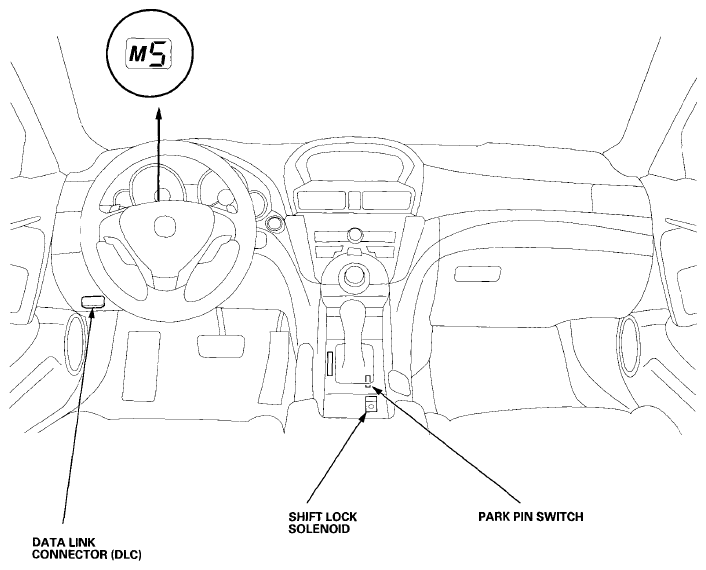

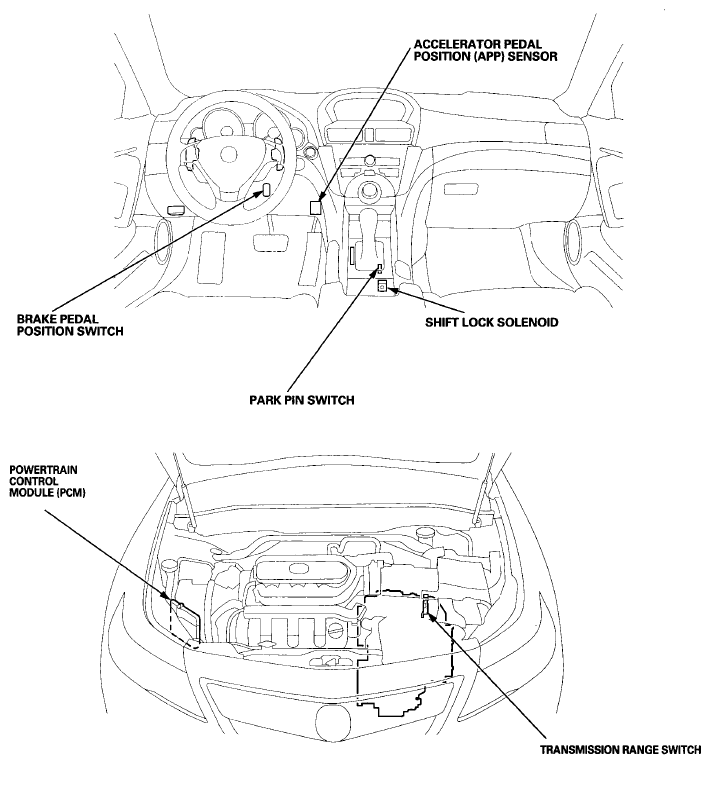

Fig 1: Identifying A/T Inter Lock System Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

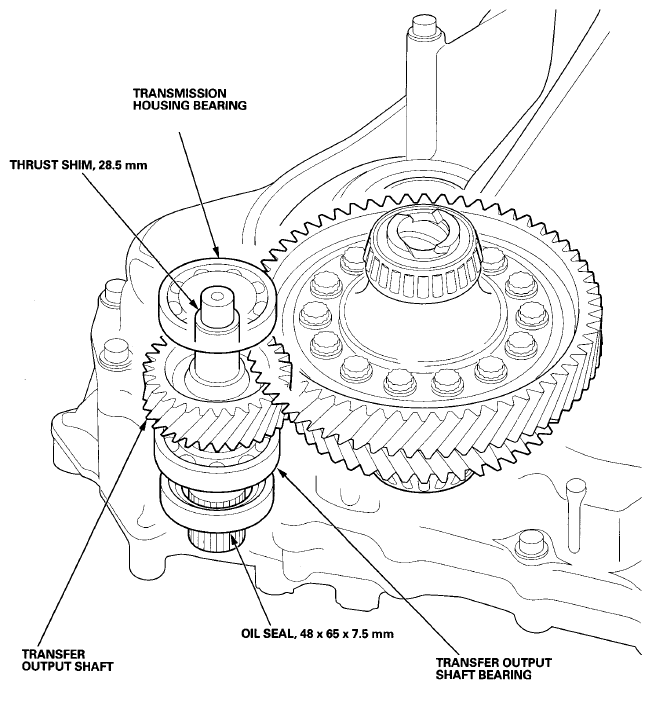

Fig 1: Identifying Transfer Output Shaft Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

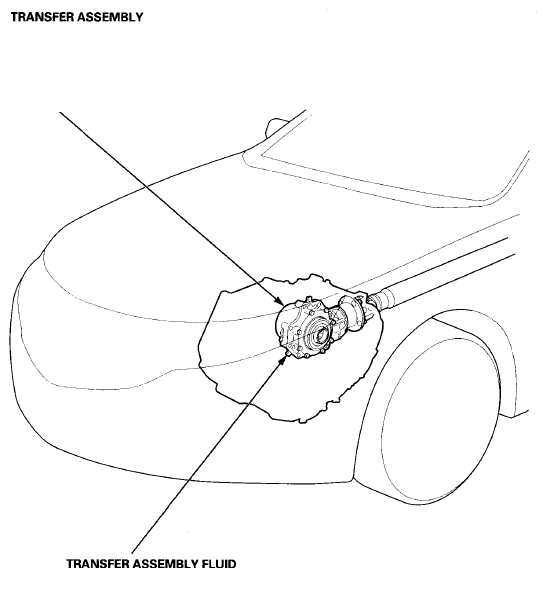

Fig 1: Identifying Transfer Assembly Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.
