Home
>>
Acura
>>
2013
>>
TL Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Mount Control System
>>
Circuit Diagram
>>
With Keyless Access System
With Keyless Access System

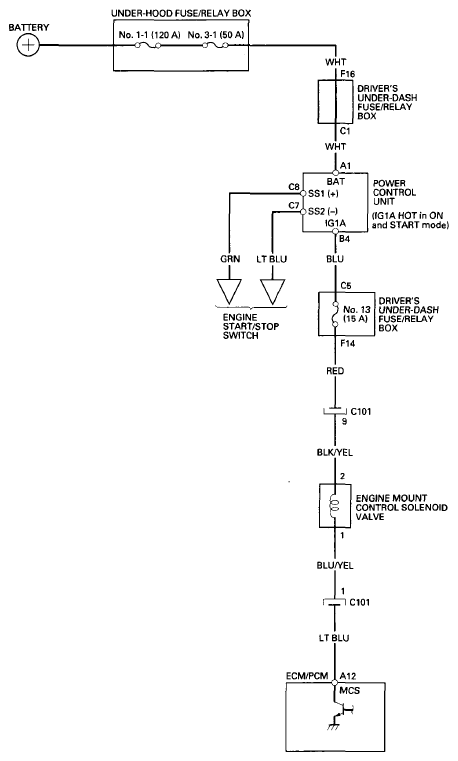

Fig 1: Engine Mount Control System - Circuit Diagram (With Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
