Throttle Position Learning Check

NOTE: If the malfunction indicator lamp (MIL) has been reported on, check for diagnostic trouble codes (DTCs).
  1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

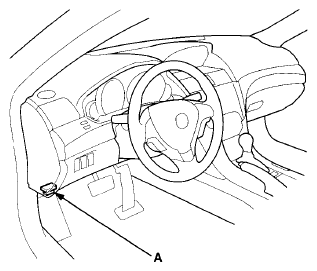

    Fig 1: Identifying Data Link Connector (DLC)
    G08069836Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
  3. Make sure the HDS communicates with the ECM/PCM. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  4. Select the INSPECTION MENU with the HDS.
  5. Do the TP LEARNING CHECK in the ETCS TEST. If needed, clean the throttle body .
