Checking Electrically

  1. Disconnect harness connector at wastegate by-pass regulator valve. See Fig 1.
  2. Connect DVOM multimeter switched to resistance range to wastegate by-pass regulator valve, using adapters from (VW 1594) connector test kit. See Fig 2.
  3. Measure resistance, must be 25-35 ohms. If NO: Replace wastegate by-pass regulator valve.

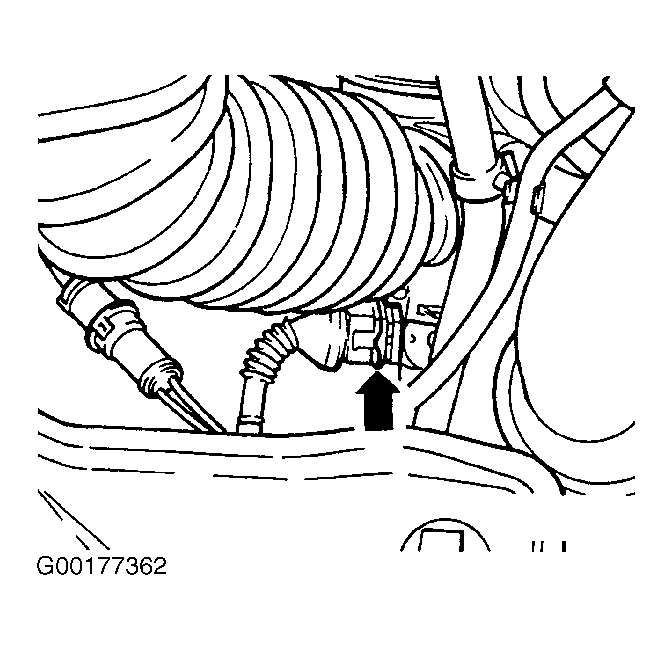

Fig 1: Locating Wastegate By-Pass Regulator Valve
G00177362Courtesy of AUDI OF AMERICA, INC.

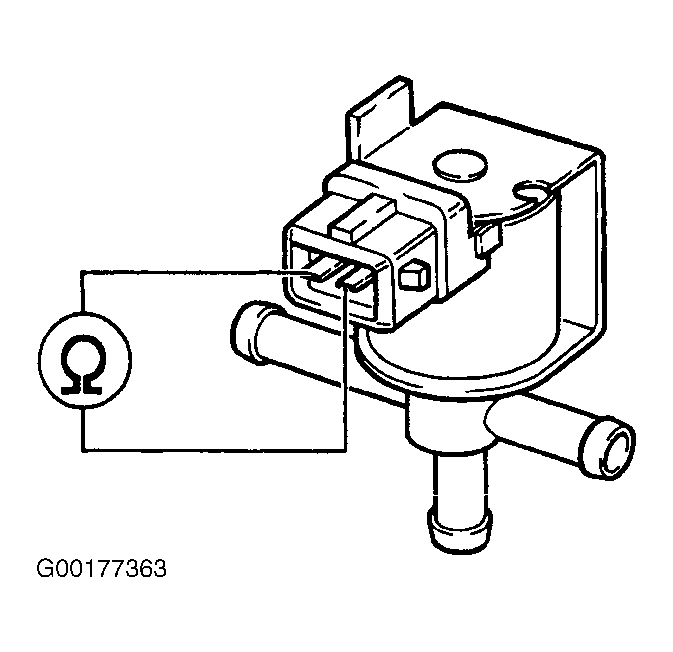

Fig 2: Measuring Resistance Of The Wastegate By-Pass Regulator Valve
G00177363Courtesy of AUDI OF AMERICA, INC.
