Radio/navigation clock, servicing
NOTE:
The radio/navigation clock can be identified by an antenna symbol in the left upper display for the clock.
- Remove multi-function trip computer. See INSTRUMENT CLUSTER, REMOVING AND INSTALLING .

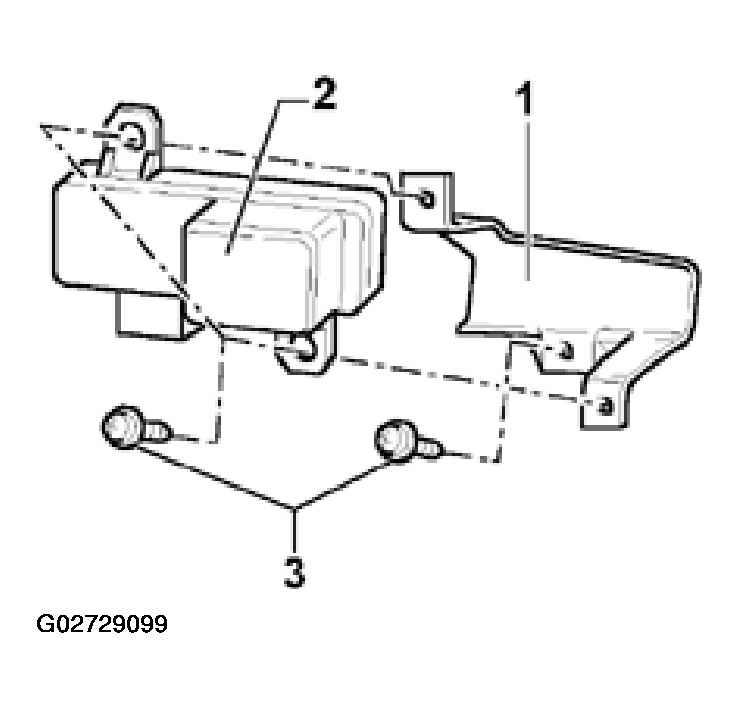

- Remove both screws -3- and remove radio/navigation clock.
- Remove the bracket for radio/navigation clock -1- behind the center console through the opening for the multifunction trip computer.
