Service Reminder Indicator (SRI), adapting interval values: Notes
- Adapt Service Reminder Indicator (SRI) as follows during pre-delivery inspection:
- The interval values (distance) must be adjusted (adapted) to the applicable intervals of 12,000 km (7,500 mi) or 24,000 km (15,000 mi).
- The adjustment is carried out in adaptation channels 5 and 6.
NOTE:
- The adaptation must be made in kilometers, even in countries where speedometers record distance in miles. To do this, convert the adaptation value from miles to kilometers.
- Conversion of miles to kilometers: miles x 1.609 = km.
- Kilometers are displayed in "Read Measuring Value Block" function 08, display groups 002 and 050.
- The specified values can only be input in increments of 1,000 km. Therefore, the display would indicate 1,000 km by a "1" in the display.
- If an incorrect value is input, "Adaptation" function 10 is ended and must be initiated again.
- Connect VAG 1551 Scan Tool (ST). See CONNECTING VAG 1551 SCAN TOOL (ST) .
- Switch ignition on.

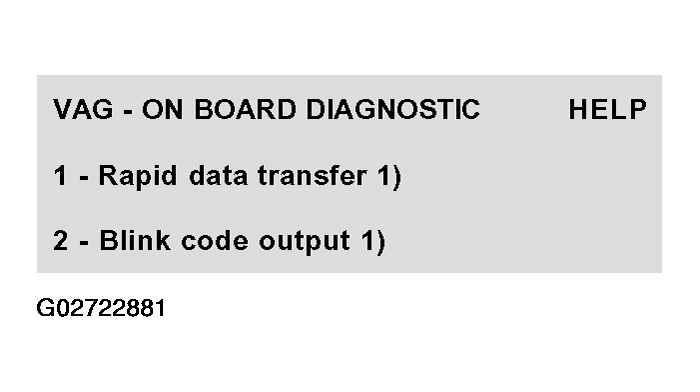

Indicated on display
1) Operating modes 1 and 2 appear alternately
- Press button -1- to select "Rapid data transfer" operating mode 1.
Indicated on display
- Press buttons -1- and -7- to insert "Instrument Cluster" address word 17 and press -Q- button to confirm input.

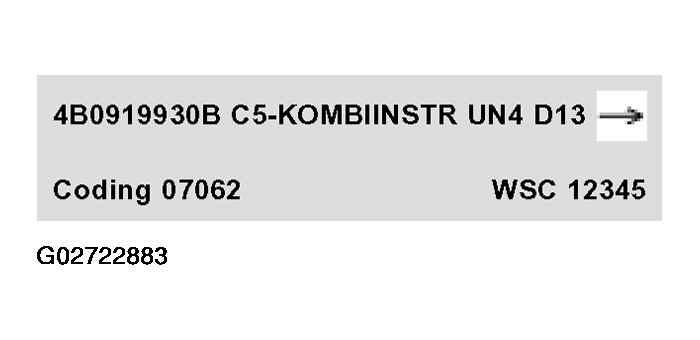

Indicated on display (example)
- Press --> button.
