Telephone Baseplate -R126-: Removing

-- Remove Cellular Telephone -R54-.

-- Unclip Telephone Baseplate -R126- in the direction of the -arrow-.

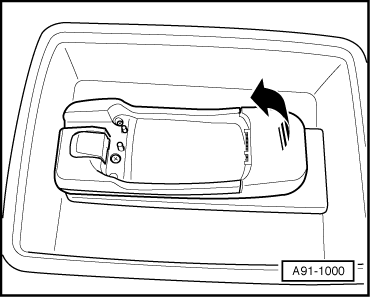

Fig 1: Unclipping Telephone Baseplate R126

Courtesy of AUDI OF AMERICA, LLC

-- Unclip storage compartment from center armrest.

-- Disconnect connector -arrow- on back side.

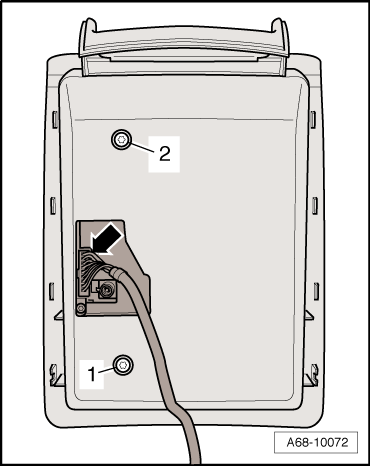

Fig 2: Identifying Connector And Screws

Courtesy of AUDI OF AMERICA, LLC

-- Remove screws -1- and -2- (2 Nm) and remove Telephone Baseplate -R126- from compartment.
