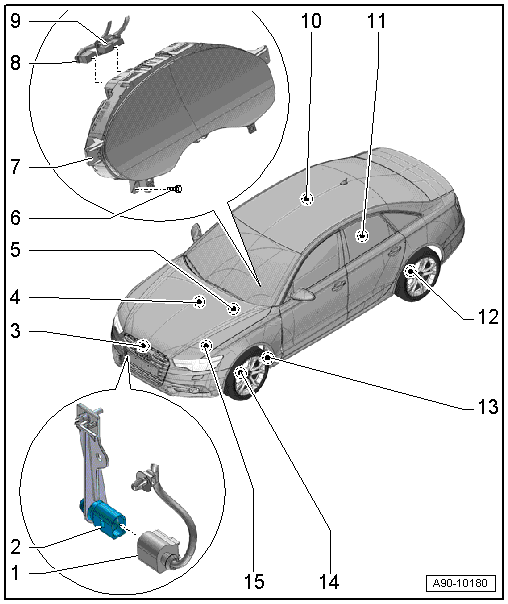

Instrument Cluster Overview
Observe notes on contact corrosion. Refer to CONTACT CORROSION .
NOTE:
All warning lamps in instrument cluster are fitted with light-emitting diodes. In case an indicator lamp is malfunctioning, the instrument cluster must be replaced.
- Electrical Connector
- For the outside air temperature sensor -G17-
- Outside Air Temperature Sensor -G17-
- Removal and installation, refer to Outside Air Temperature Sensor -G17-
- Oil Level Thermal Sensor -G266-
- Removal and installation, refer to OIL LEVEL THERMAL SENSOR -G266-, REMOVING AND INSTALLING (CAEB & CAED) or OIL LEVEL THERMAL SENSOR -G266-, REMOVING AND INSTALLING (CGXB & CTUA)
- Oil Pressure Switch -F22- /Reduced Oil Pressure Switch -F378-
- Removal and installation, refer to OIL PRESSURE SWITCH -F22-, REMOVING AND INSTALLING and REDUCED OIL PRESSURE SWITCH -F378-, REMOVING AND INSTALLING (CAEB & CAED), OIL PRESSURE SWITCH -F22-, REMOVING AND INSTALLING and REDUCED OIL PRESSURE SWITCH -F378-, REMOVING AND INSTALLING (CGXB & CTUA)
- Brake Fluid Level Warning Switch -F34-
- Removal and installation, refer to BRAKE FLUID RESERVOIR, REMOVING AND INSTALLING
- Screw
- 3 Nm
- Quantity: 2
- Instrument Cluster
- With the instrument cluster control module -J285-
- Removal and installation, refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-
- Multi-pin connector pin assignment, refer to INSTRUMENT CLUSTER MULTI-PIN CONNECTOR, PIN ASSIGNMENT
- Fiber Optic Cable Connector
- Attach with the cable connector protective cap VAS 6223/9
- Electrical Connector
- For instrument cluster
- Fuel Level Sensor -G-
- Removal and installation, refer to FUEL LEVEL SENSOR -G-, REMOVING AND INSTALLING (CAEB, CAED, CEUC, CGXB & CTUA)
- Fuel Level Sensor 2 -G169-
- Removal and installation, refer to FUEL LEVEL SENSOR 2 -G169-, REMOVING AND INSTALLING
- Rear Brake Pad Wear Sensor
- Left rear brake pad wear sensor -G36-, right rear brake pad wear sensor -G37-
- Removal and installation, refer to BRAKE PAD WEAR SENSOR, REMOVING AND INSTALLING
- Windshield Washer Fluid Level Sensor -G33-
- Removal and installation, refer to Windshield Washer Fluid Level Sensor -G33-
- Front Brake Pad Wear Sensor
- Left front brake pad wear sensor -G34-, right front brake pad wear sensor -G35-
- Removal and installation, refer to BRAKE PAD WEAR SENSOR, REMOVING AND INSTALLING
- Engine Coolant Level Warning Switch -F66-
