BMW Vacuum Diagrams
BMW Vacuum Diagrams

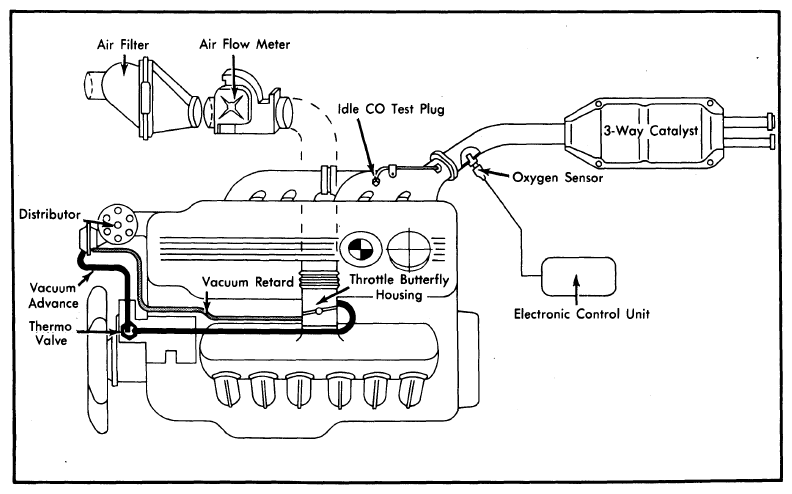

Fig 1: BMW 320i - All Models
Courtesy of BMW OF NORTH AMERICA, INC.

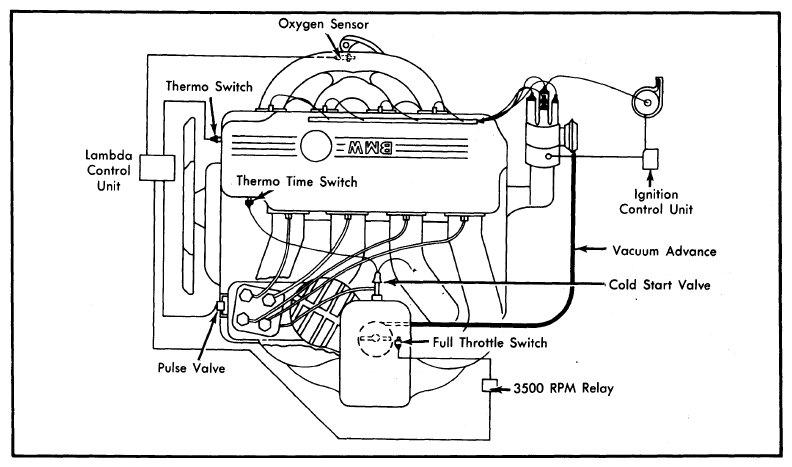

Fig 2: BMW 528i, 633CSi, and 733i - All Models
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
