Description & Operation

Vapors and gases drawn through a external tube into valve cover. Vapors and gases are then drawn into air flow meter and into the intake system for burning or through a return tube to the crankcase.

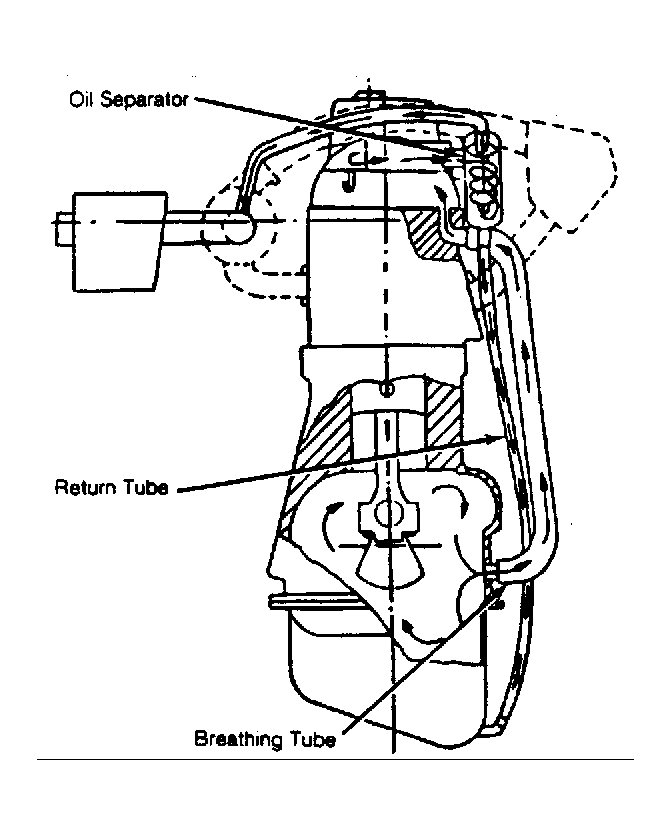

Fig 1: Crankcase Ventilation System
G38459
