Service Point Locations

NOTE: Battery is located under rear seat cushion on 535i Models.

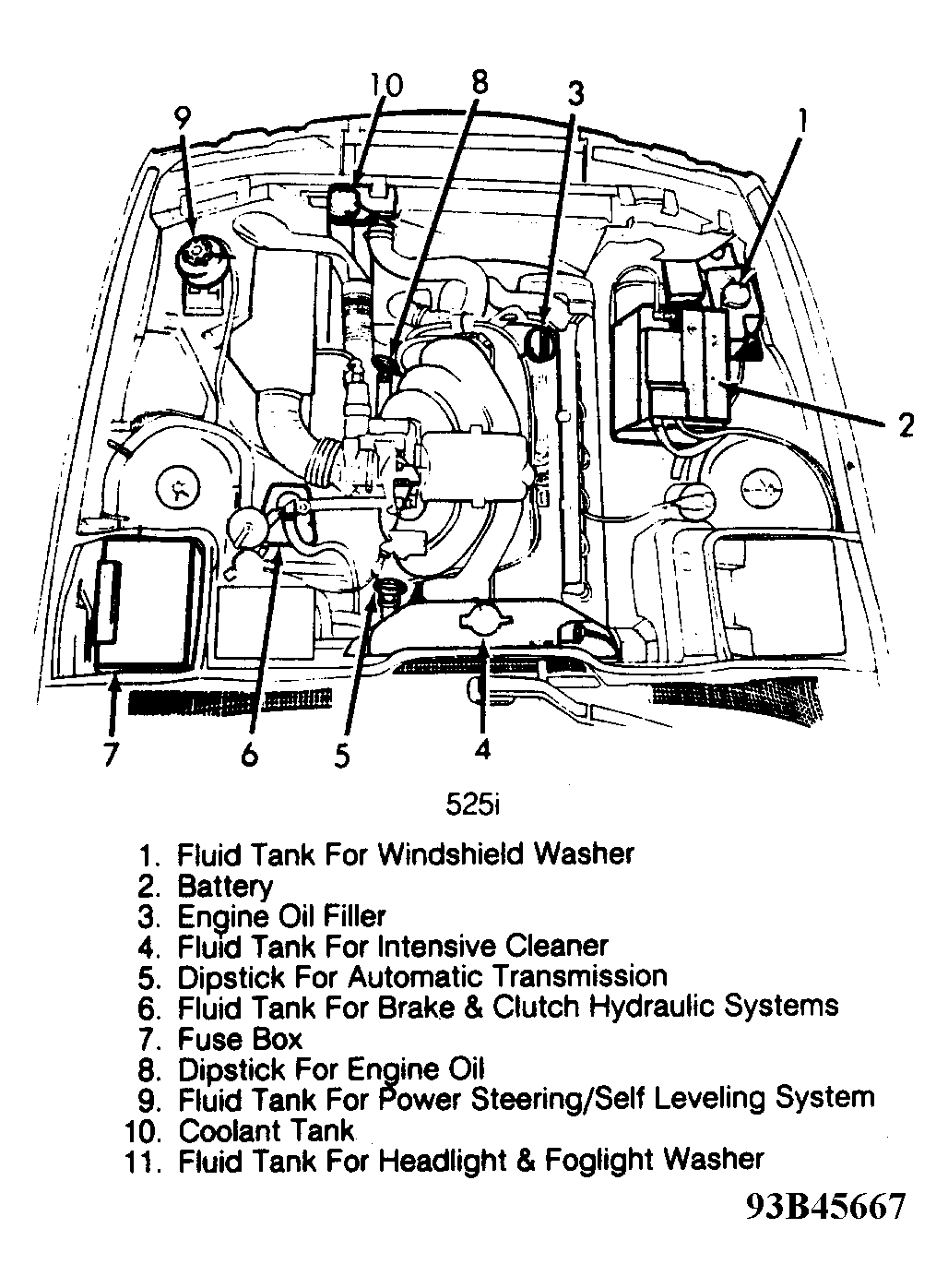

Fig 1: Service Point Locations (525i)

Courtesy of BMW OF NORTH AMERICA, INC.

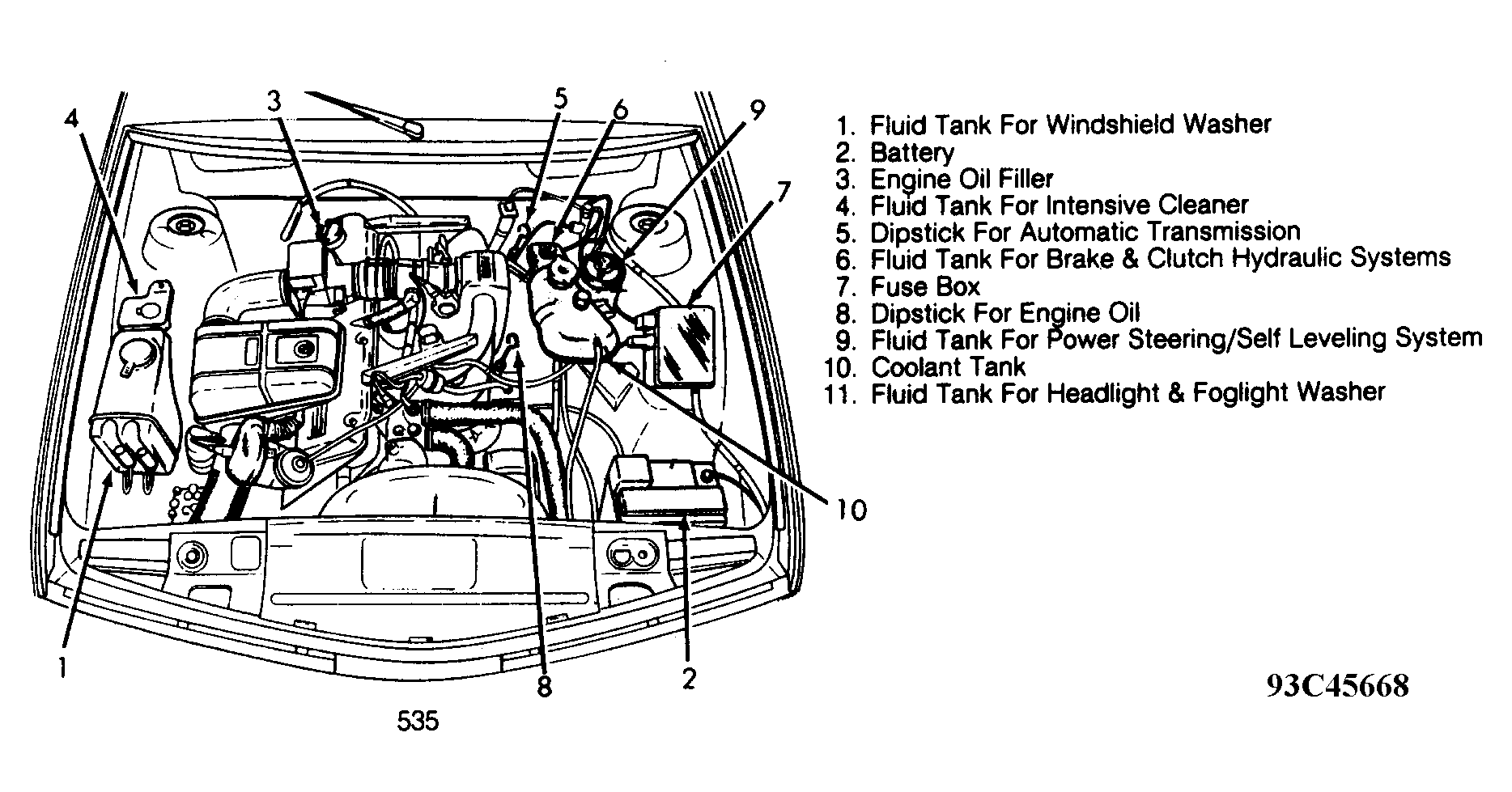

Fig 2: Service Point Locations (535)

Courtesy of BMW OF NORTH AMERICA, INC.

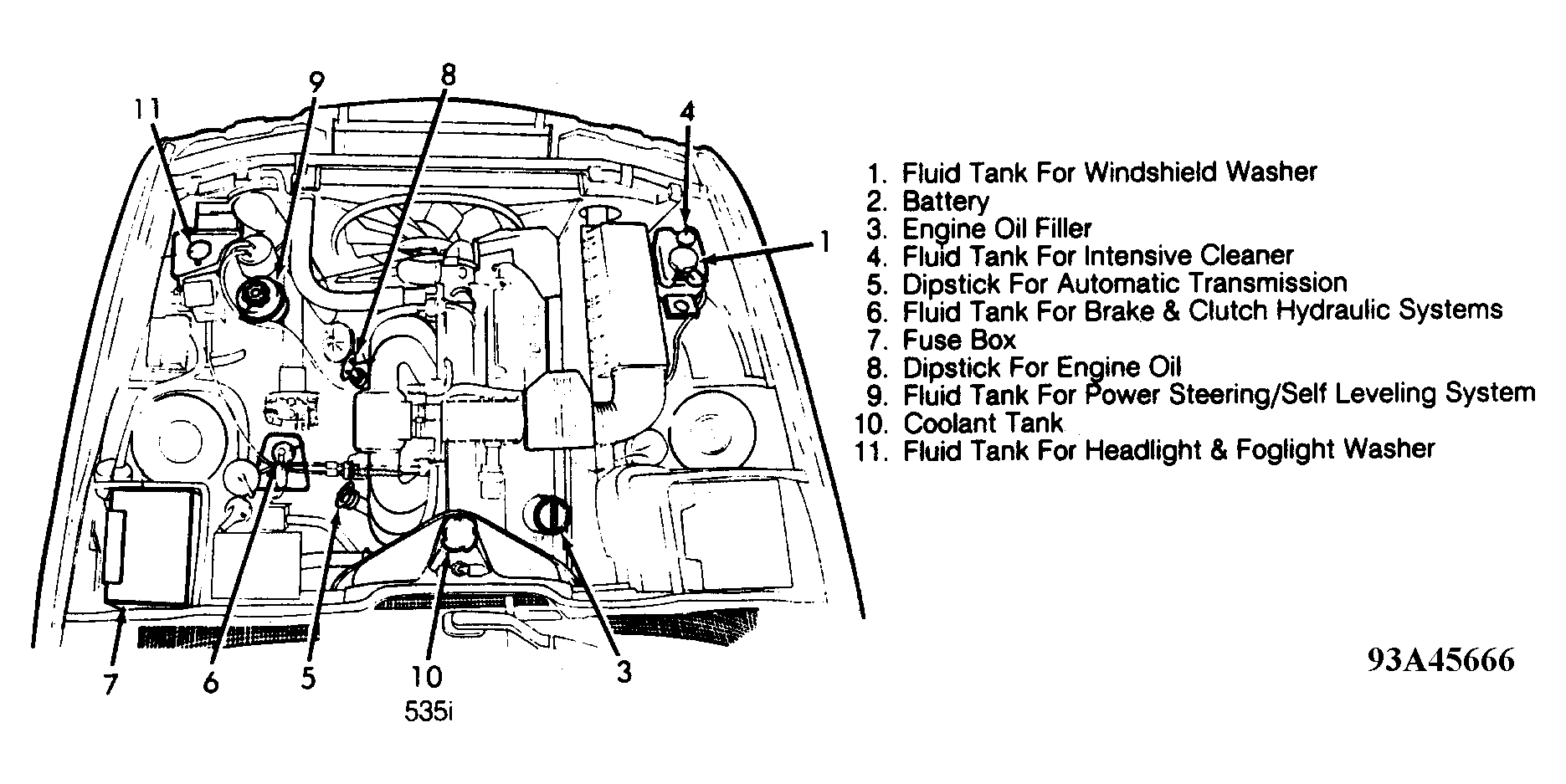

Fig 3: Service Point Locations (535i)

Courtesy of BMW OF NORTH AMERICA, INC.

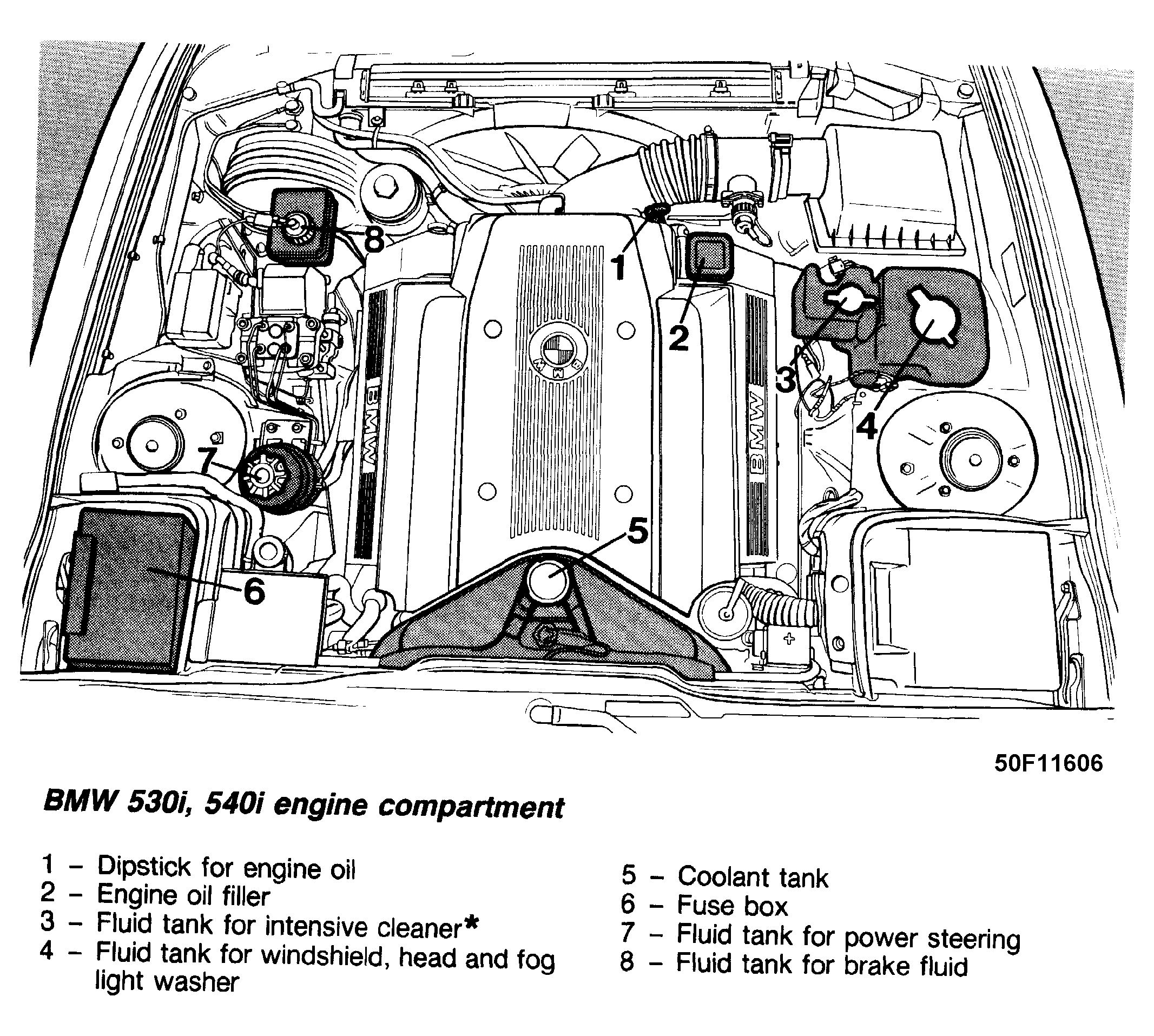

Fig 4: Service Point Locations (530i & 540i)

Courtesy of BMW OF NORTH AMERICA, INC.
