Overview Of Components: Notes
The A5S 360R is an assembly of the following:
- Four case housing design (Torque converter bell housing, pump cover plate, main and extension cases).
- Single piece sump pan.
- Replaceable oil filter unit.
- Four element torque converter assembly with variably controlled lock up clutch.
- Vane type oil pump.
- Four multi-plate drive clutches with single sided friction plates.
- Five multi-plate brake clutches with single sided friction plates.
- Four Free Wheel One Way Clutches (sprag type).
- One Planetary Gearset Assembly.

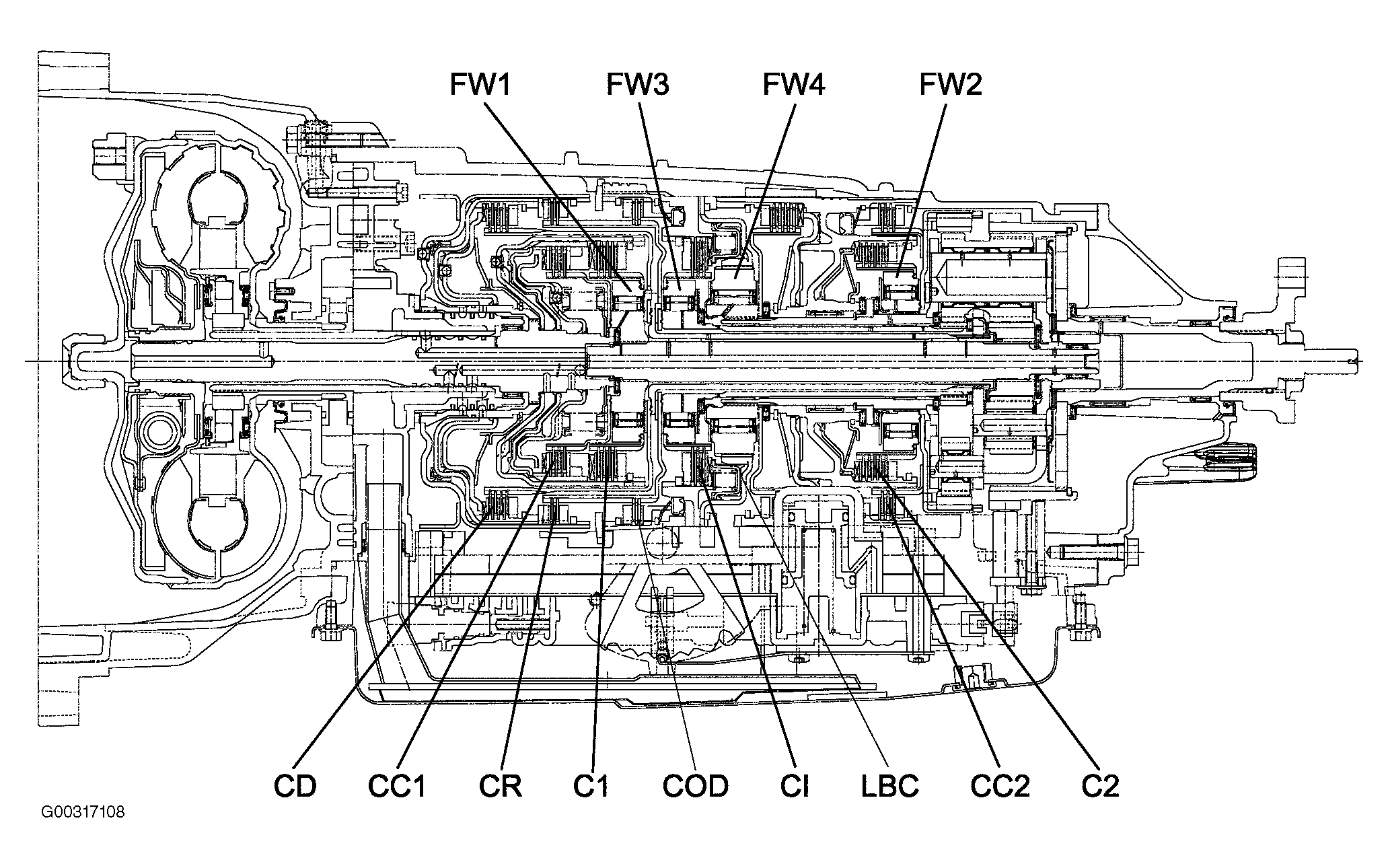

- One Valve Body with solenoids for pressure regulation, shift control, torque converter regulated lock up and reverse lock out (combined function). See Fig 1 .
