MRS 5 Control Unit: Connector

The module has been expanded from one to two connectors.

• One 26-pin connector is for the cockpit
• One 54-pin connector if for the vehicle harness.

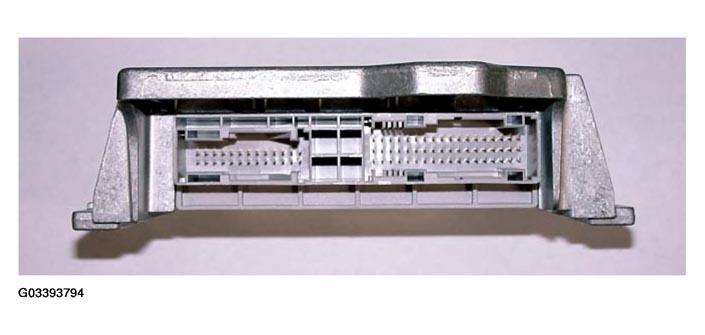

  Fig 1: Identifying Connector MRS Control Unit

  Courtesy of BMW OF NORTH AMERICA, INC.
