Home >> Buick >> 1997 >> Century Custom >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Accessory Time Delay (Rap) Relay >> Grand PRIX

Grand PRIX

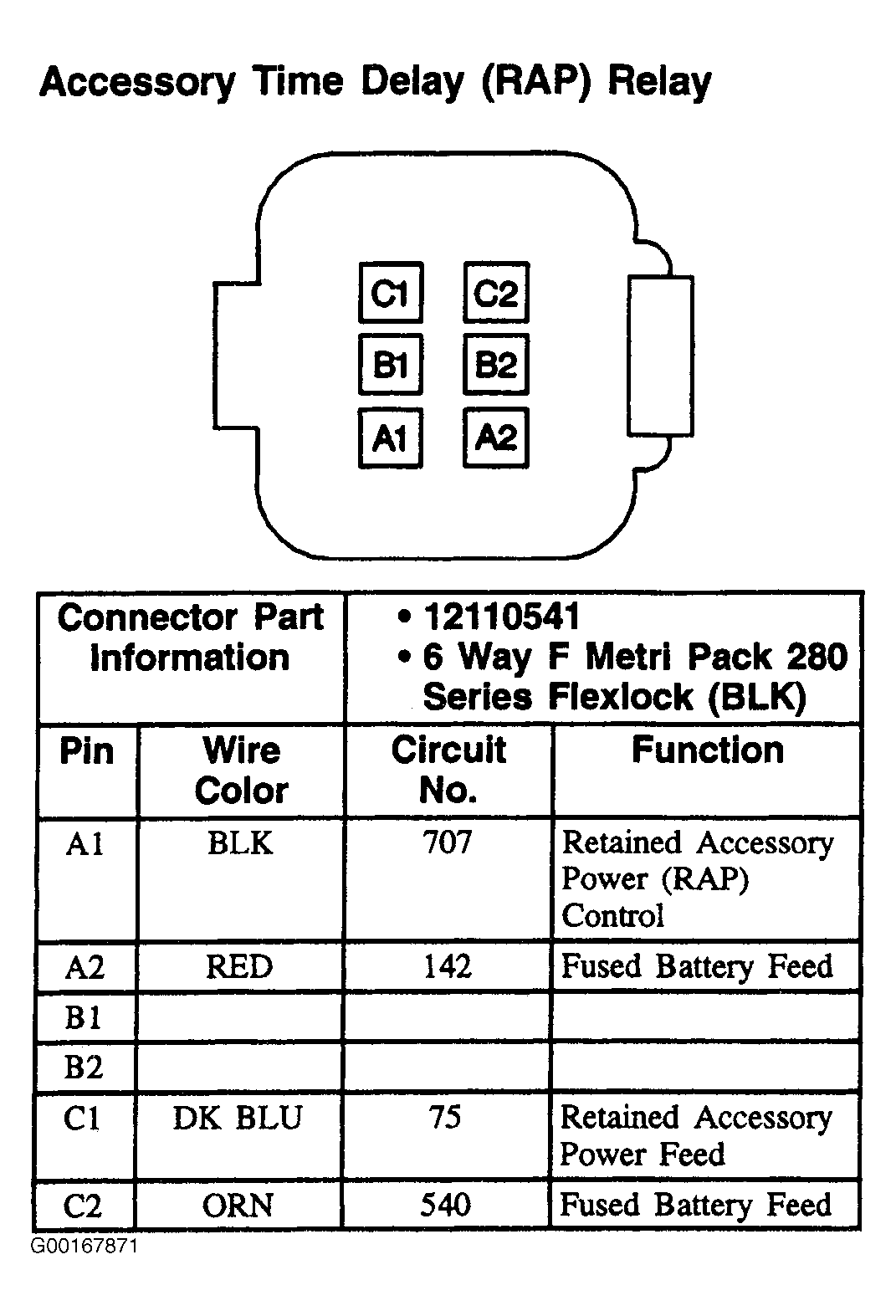

Fig 1: Accessory Time Delay (RAP) Relay (Grand Prix) - 6-Pin Connector (Black)
G00167871Courtesy of GENERAL MOTORS CORP.
