Home >> Buick >> 1997 >> Century Custom >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Blower Motor >> Grand PRIX >> Blower Motor Control Module

Blower Motor Control Module

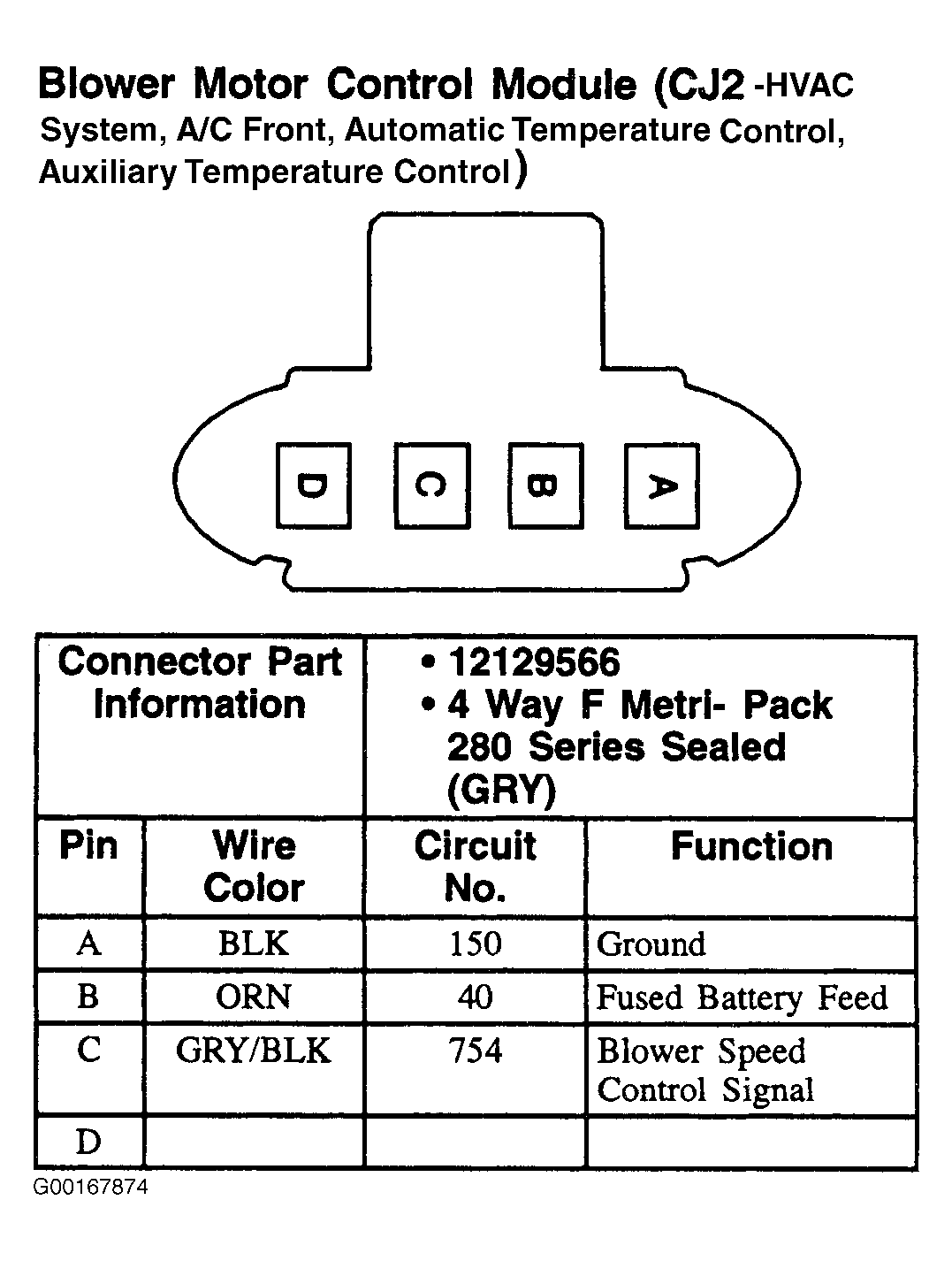

Fig 1: Blower Motor Control Module (CJ2 - HVAC System, A/C Front, Automatic Temperature Control, Auxiliary Temperature Control) (Grand Prix) - 4-Pin Connector (Gray)
G00167874Courtesy of GENERAL MOTORS CORP.
