Body Control Module (BCM) C1

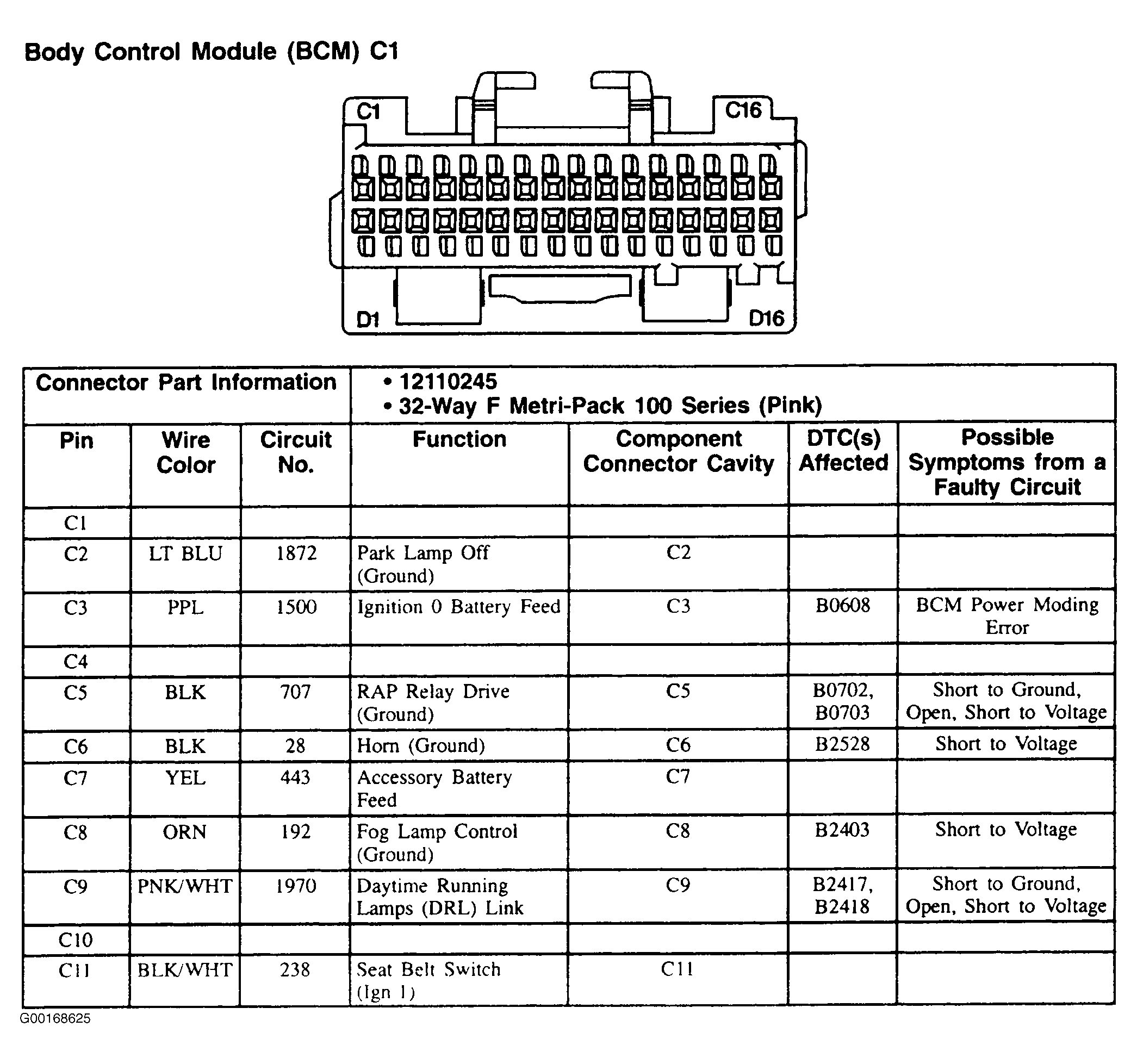

Fig 1: Body Control Module (BCM) C1 (Century & Regal) - 32-Pin Connector (Pink), 1 Of 2
G00168625Courtesy of GENERAL MOTORS CORP.

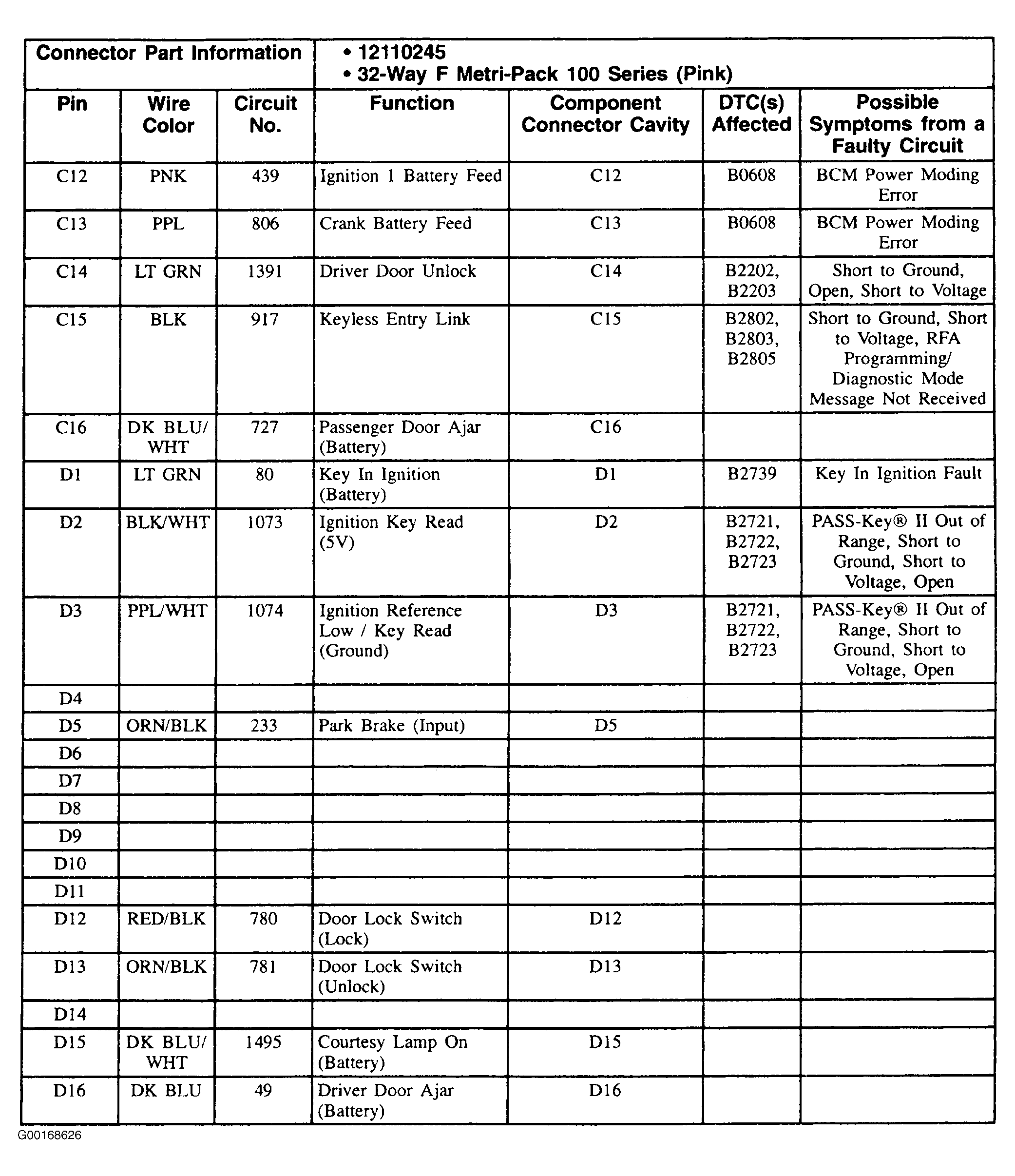

Fig 2: Body Control Module (BCM) C1 (Century & Regal) - 32-Pin Connector (Pink), 2 Of 2
G00168626Courtesy of GENERAL MOTORS CORP.
