Ignition Control (IC) Module C2 (All Others)

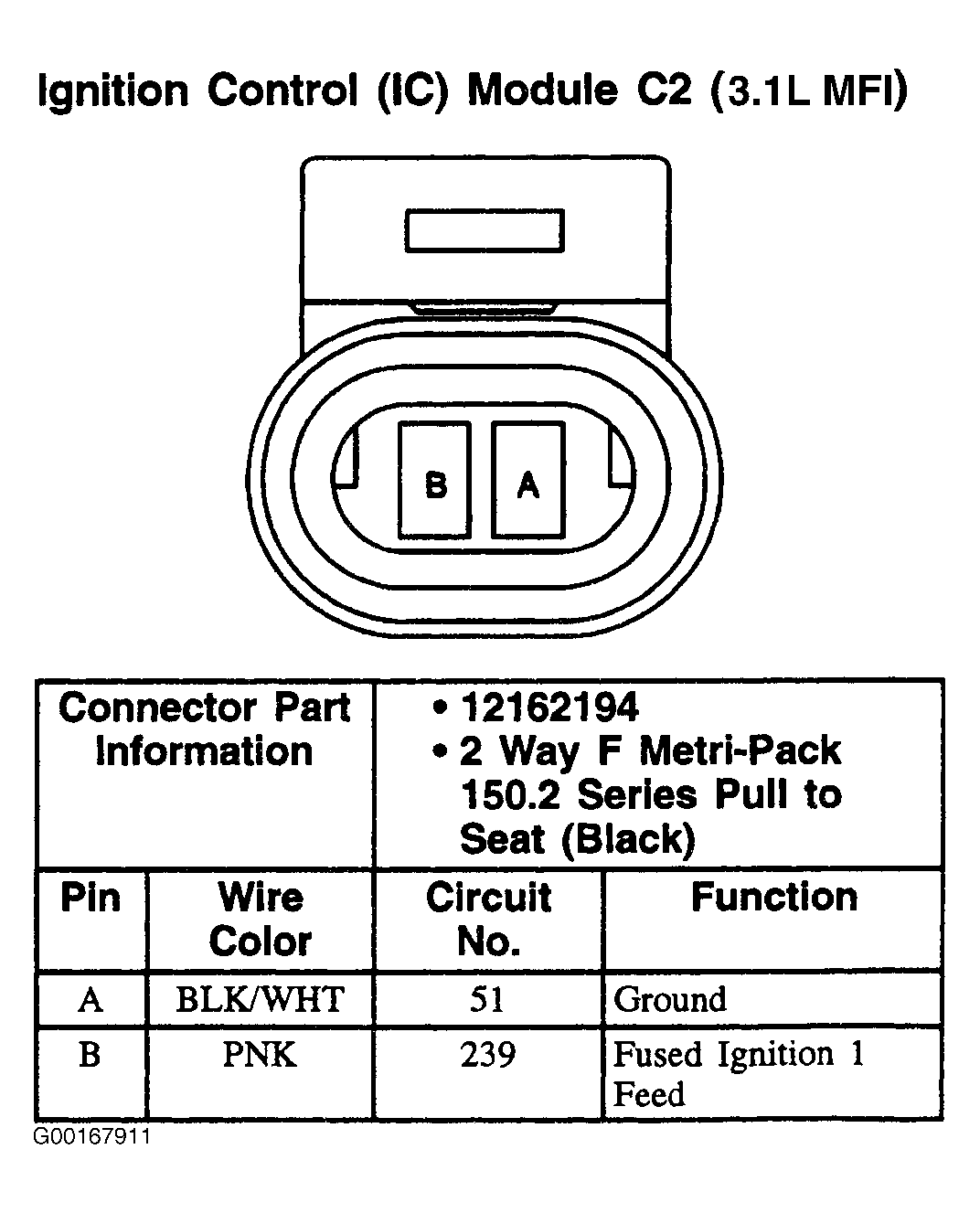

Fig 1: Ignition Control (IC) Module C2 (3.1L) (Century, Grand Prix & Regal) - 2-Pin Connector (Black)
G00167911Courtesy of GENERAL MOTORS CORP.

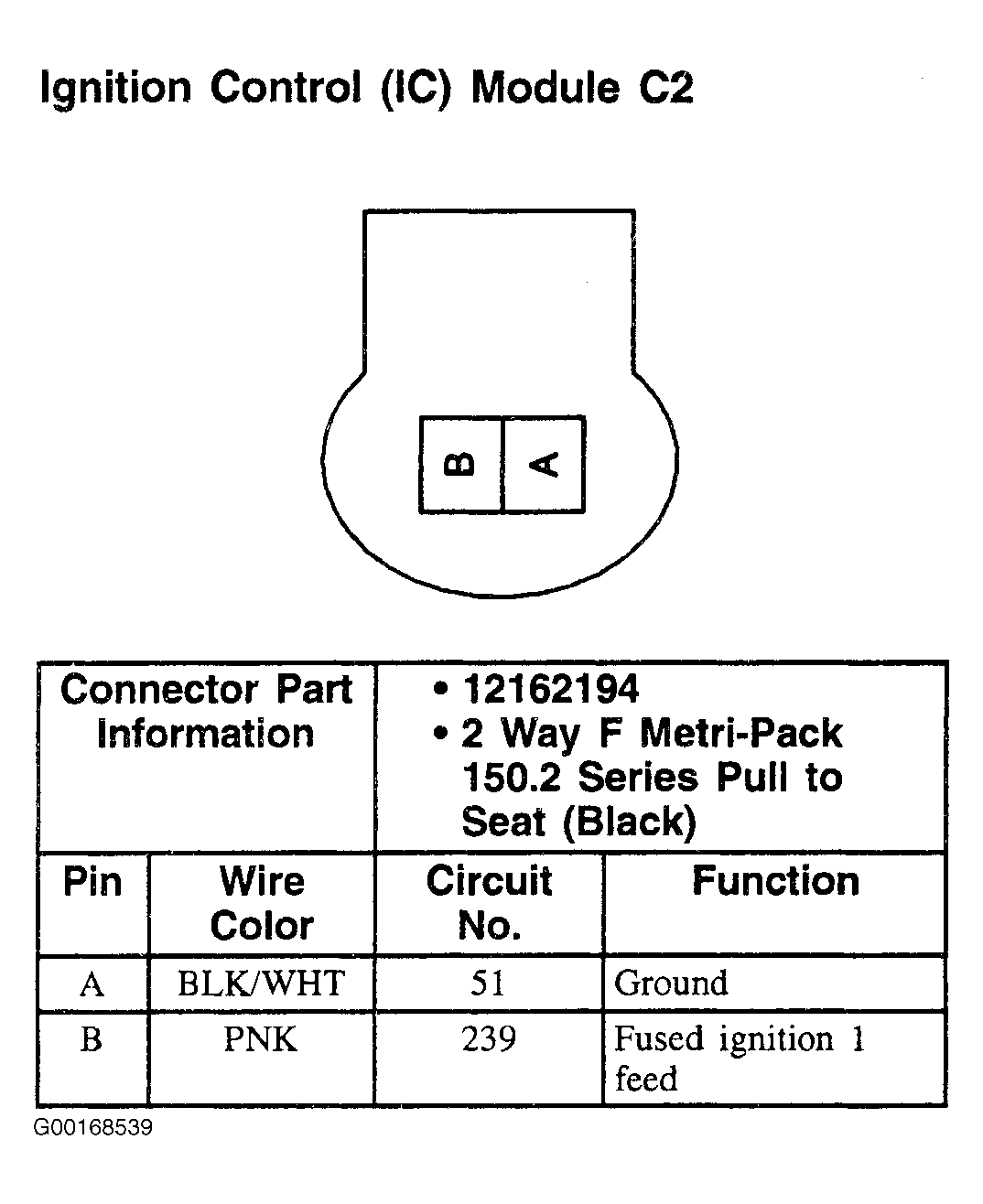

Fig 2: Ignition Control (IC) Module C2 (Cutlass Supreme, Lumina & Monte Carlo) - 2-Pin Connector (Black)
G00168539Courtesy of GENERAL MOTORS CORP.
