Window Switches, Left Front (Sedan)

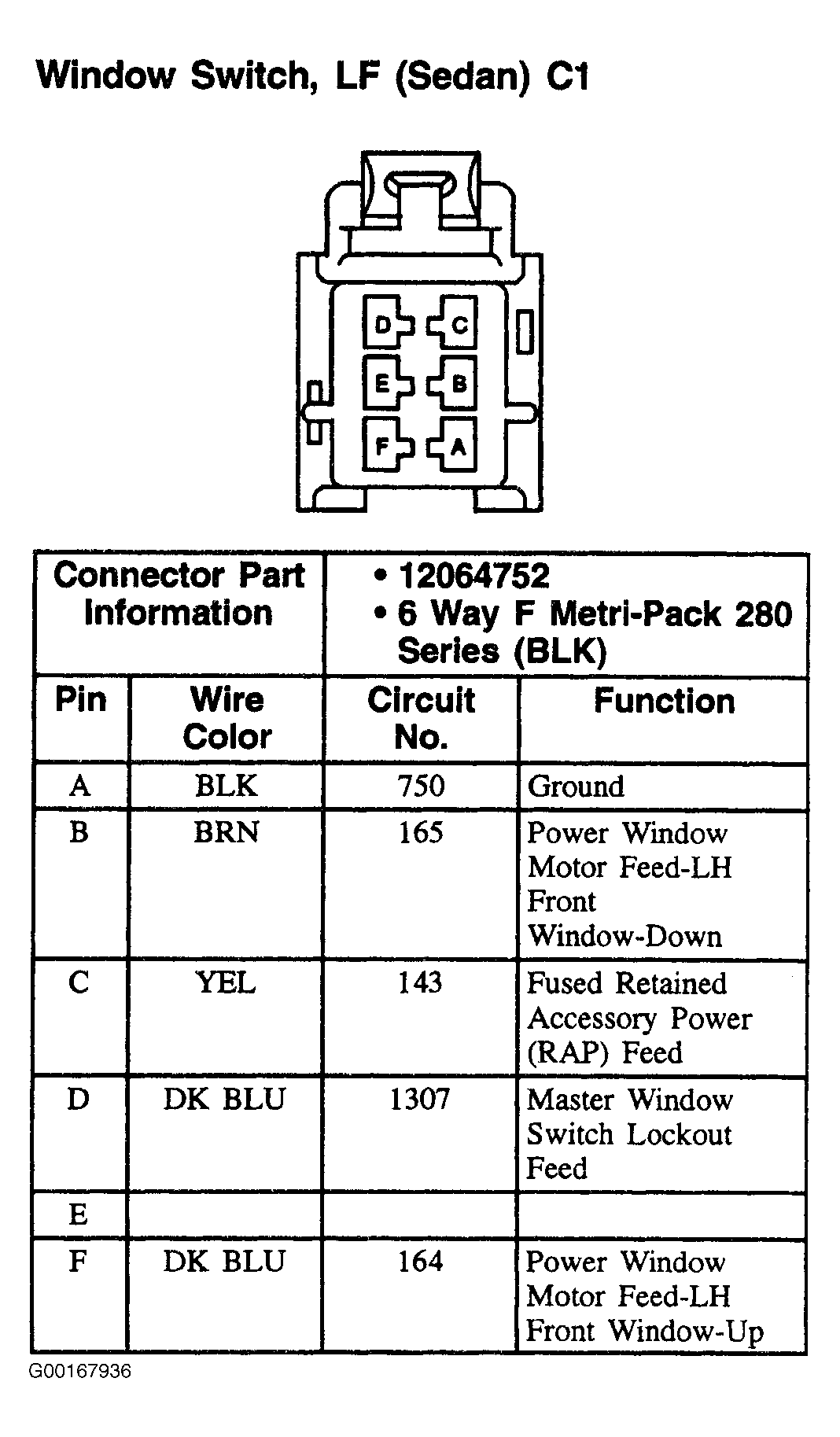

Fig 1: Window Switch, Left Front (Sedan) C1 (Grand Prix) - 6-Pin Connector (Black)
G00167936Courtesy of GENERAL MOTORS CORP.

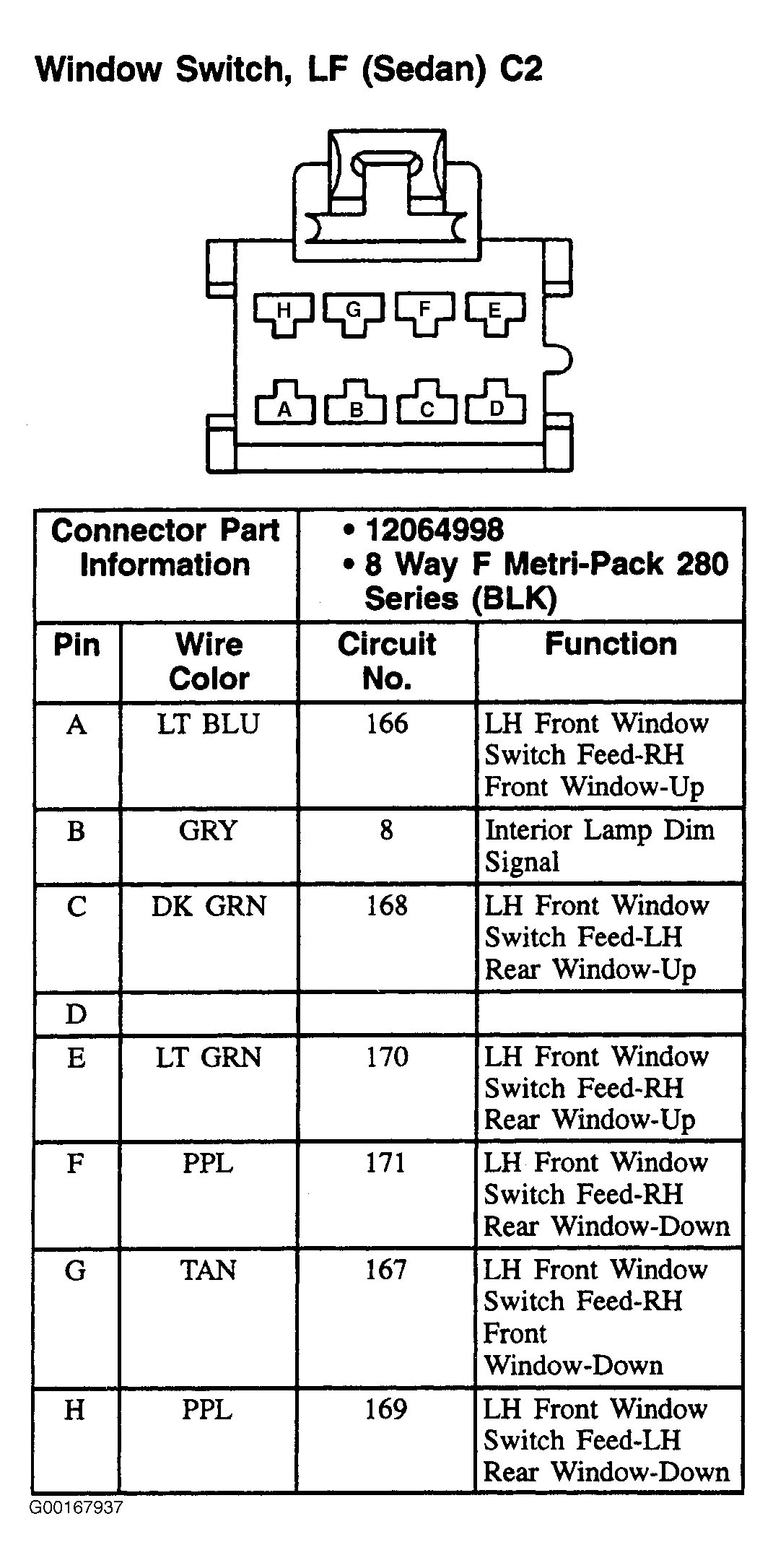

Fig 2: Window Switch, Left Front (Sedan) C2 (Grand Prix) - 8-Pin Connector (Black)
G00167937Courtesy of GENERAL MOTORS CORP.
