Home >> Buick >> 1997 >> LeSabre Custom >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Adaptive Lamp Monitor Control Module Connectors >> Adaptive Lamp Monitor Control Module C2

Adaptive Lamp Monitor Control Module C2

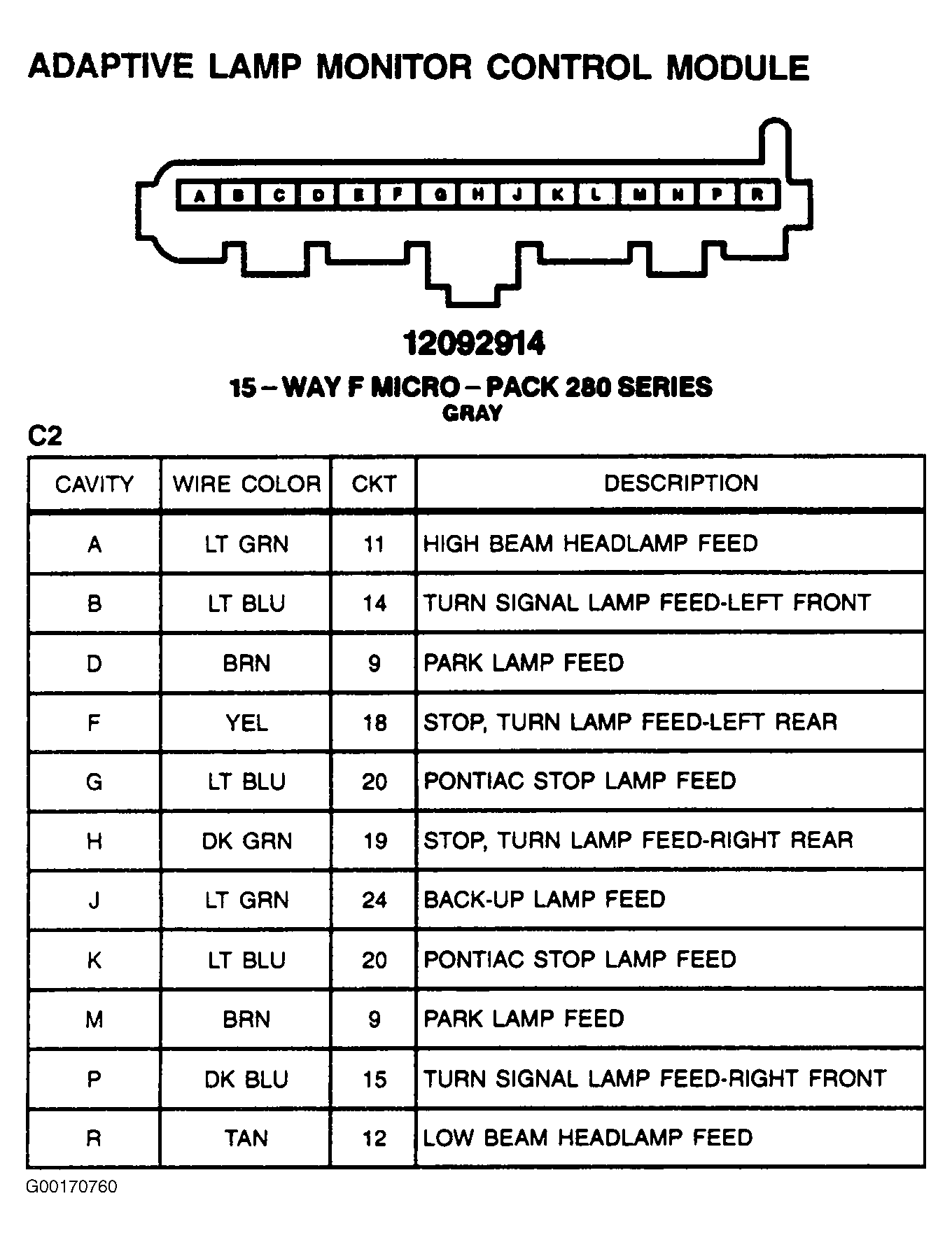

Fig 1: Adaptive Lamp Monitor Control Module C2 - 15-Pin Connector (Gray)

G00170760

Courtesy of GENERAL MOTORS CORP.
