Installation Procedure

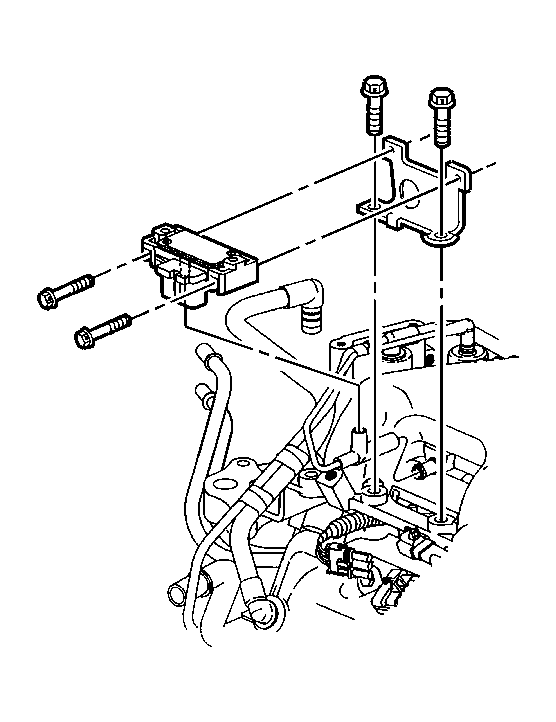

    Fig 1: View Of MAP Sensor
    GM54360Courtesy of GENERAL MOTORS CORP.
  1. Position the MAP sensor to the bracket.
  2. Install the inlet vacuum hose to the MAP sensor.
  3. Connect the MAP sensor electrical connector.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the MAP sensor screws.

    Tighten:  Tighten the screws to 3 N.m (27 lb in).
