Engine Controls Schematics
Engine Controls Schematics

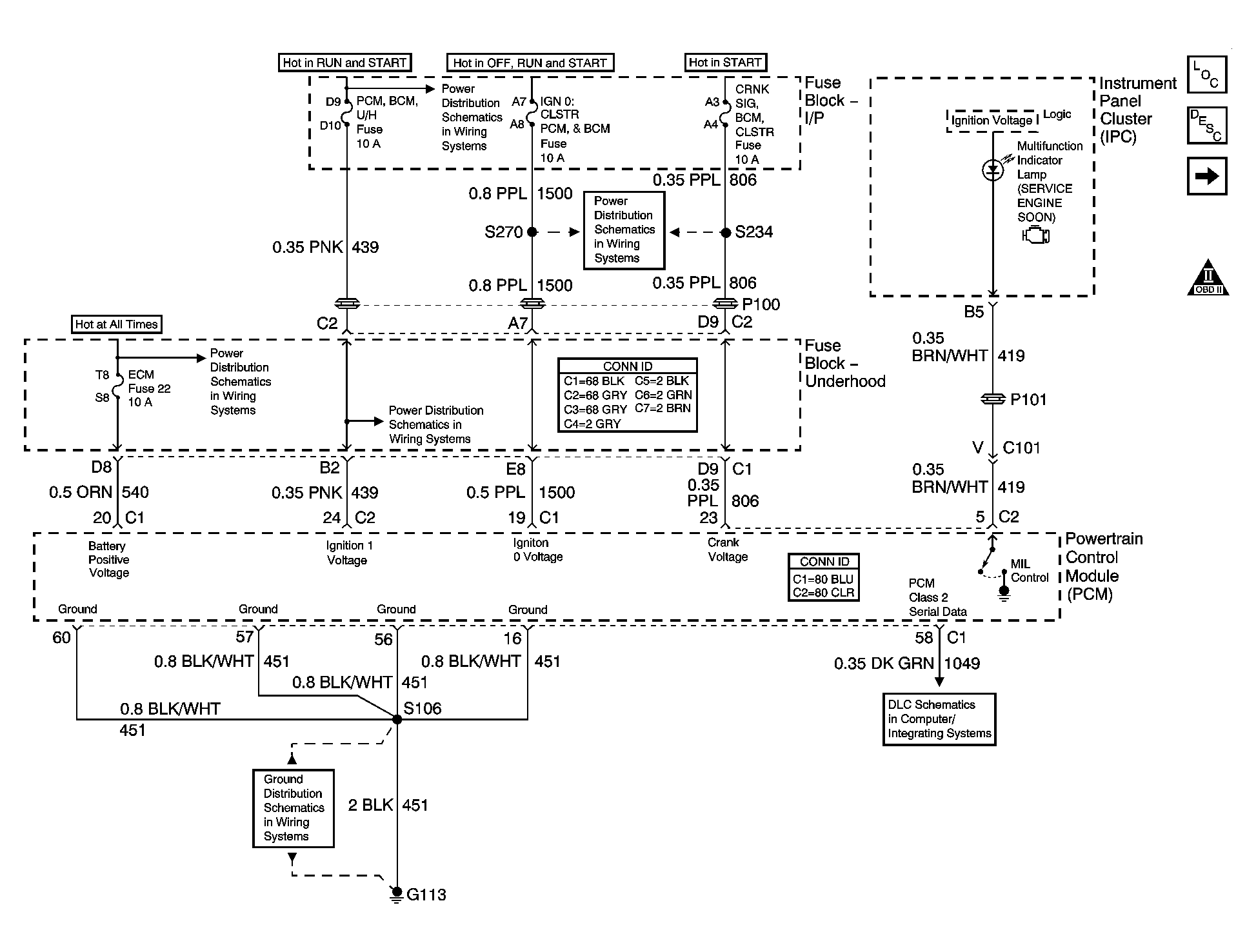

Fig 1: Module Power, Ground, Serial Data, and MIL Schematics
Courtesy of GENERAL MOTORS CORP.

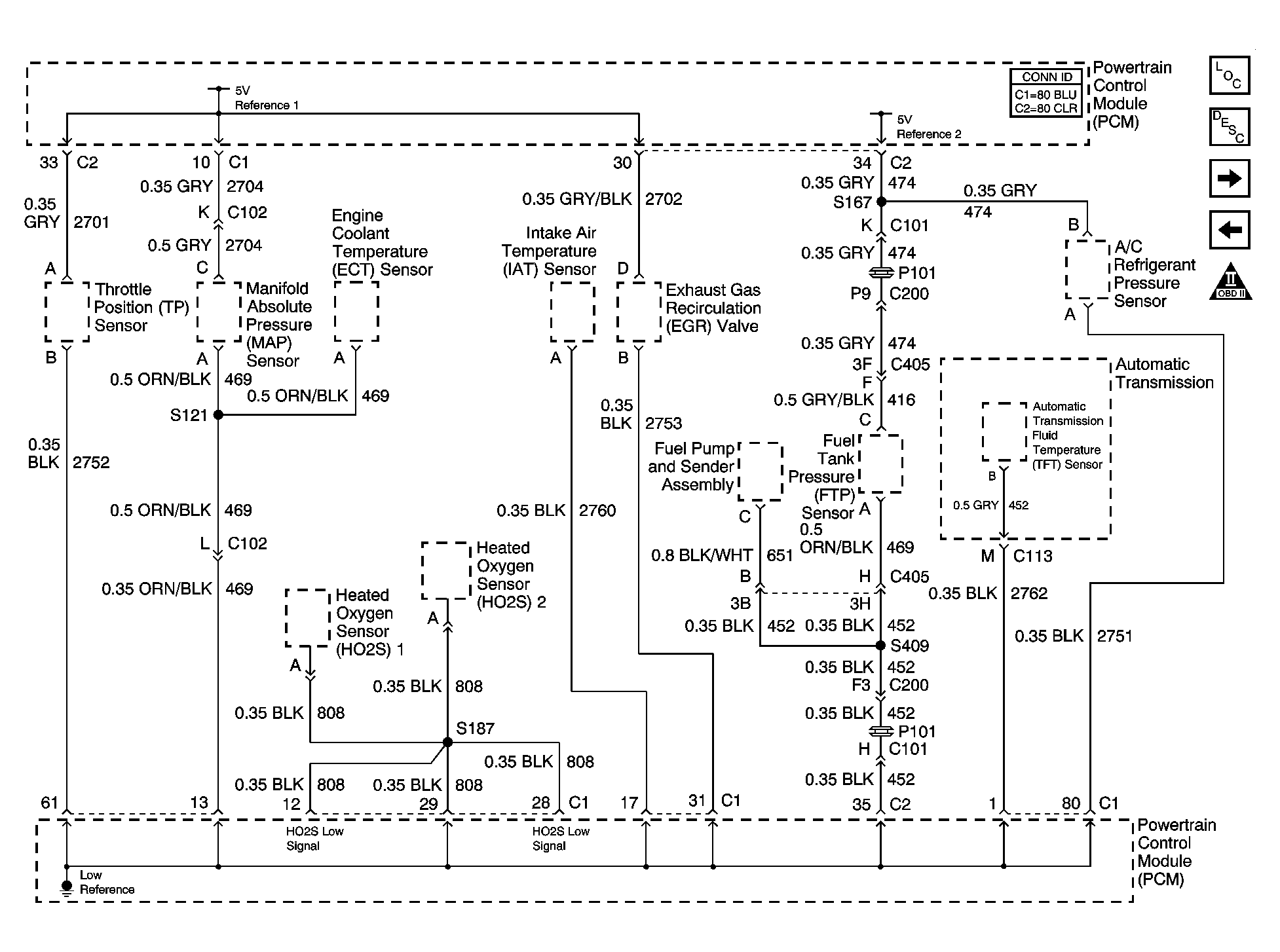

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Schematics
Courtesy of GENERAL MOTORS CORP.

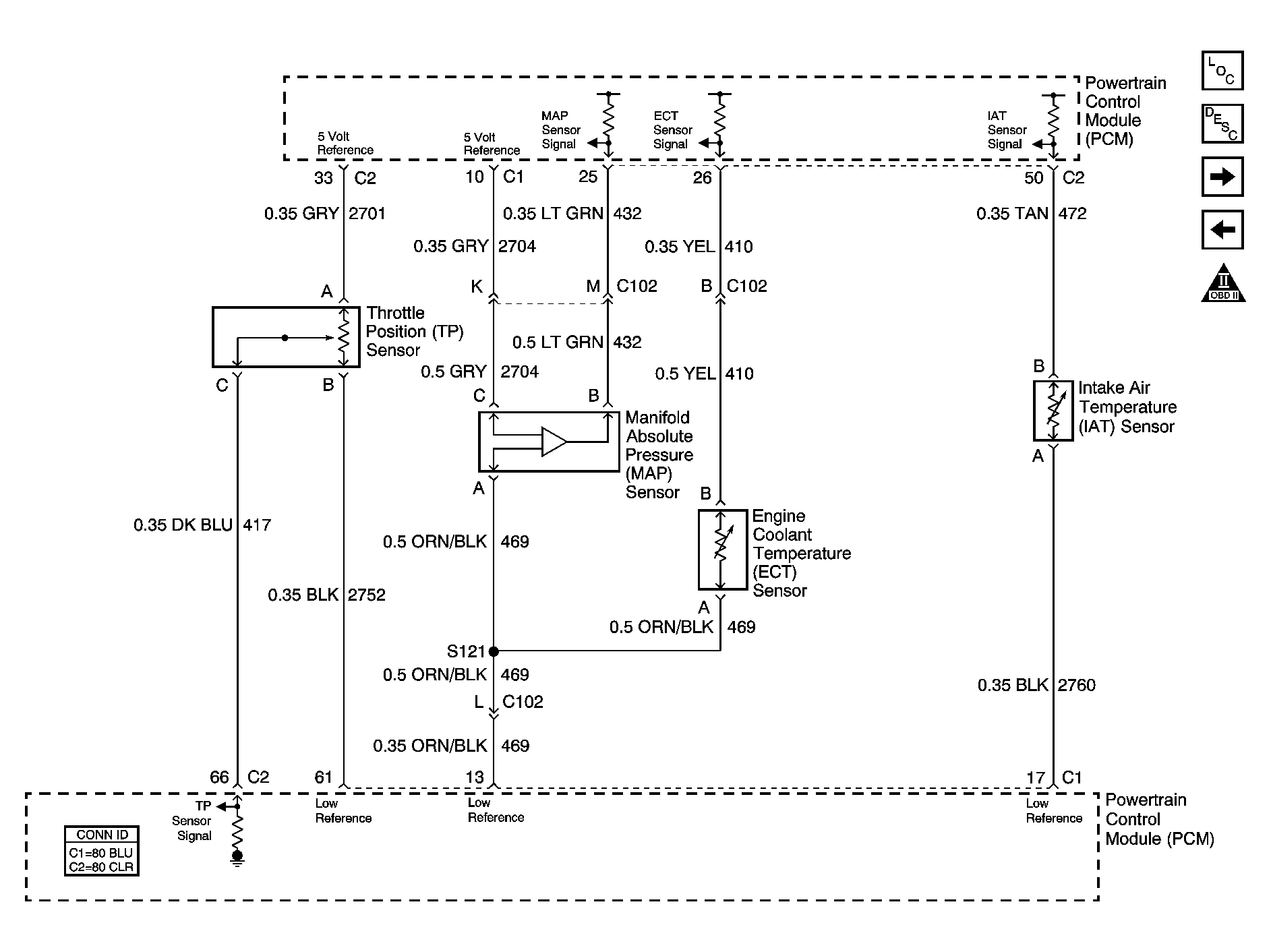

Fig 3: Engine Data Sensors Schematic - Pressure and Temperature
Courtesy of GENERAL MOTORS CORP.

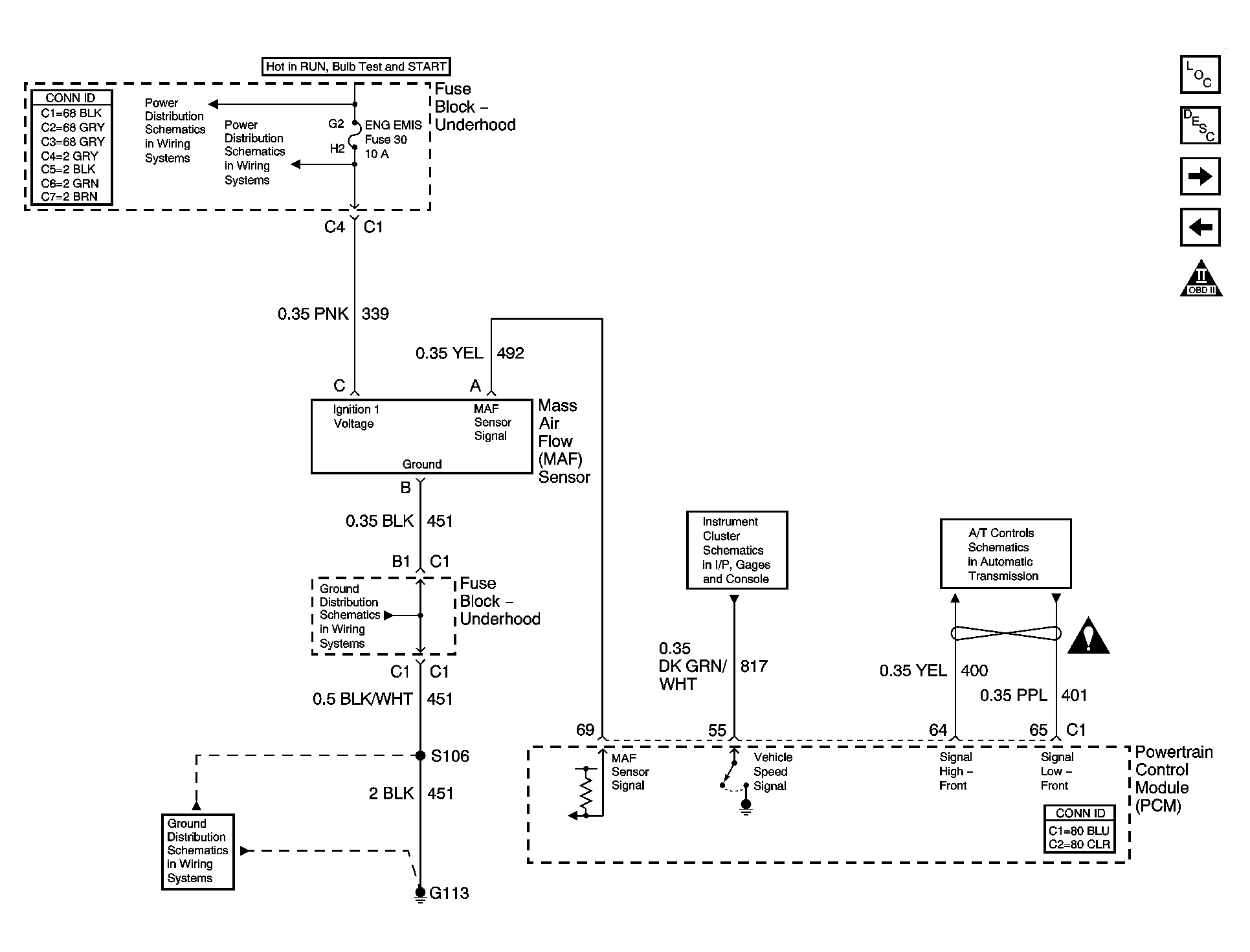

Fig 4: Engine Data Sensors Schematic - MAF, VSS
Courtesy of GENERAL MOTORS CORP.

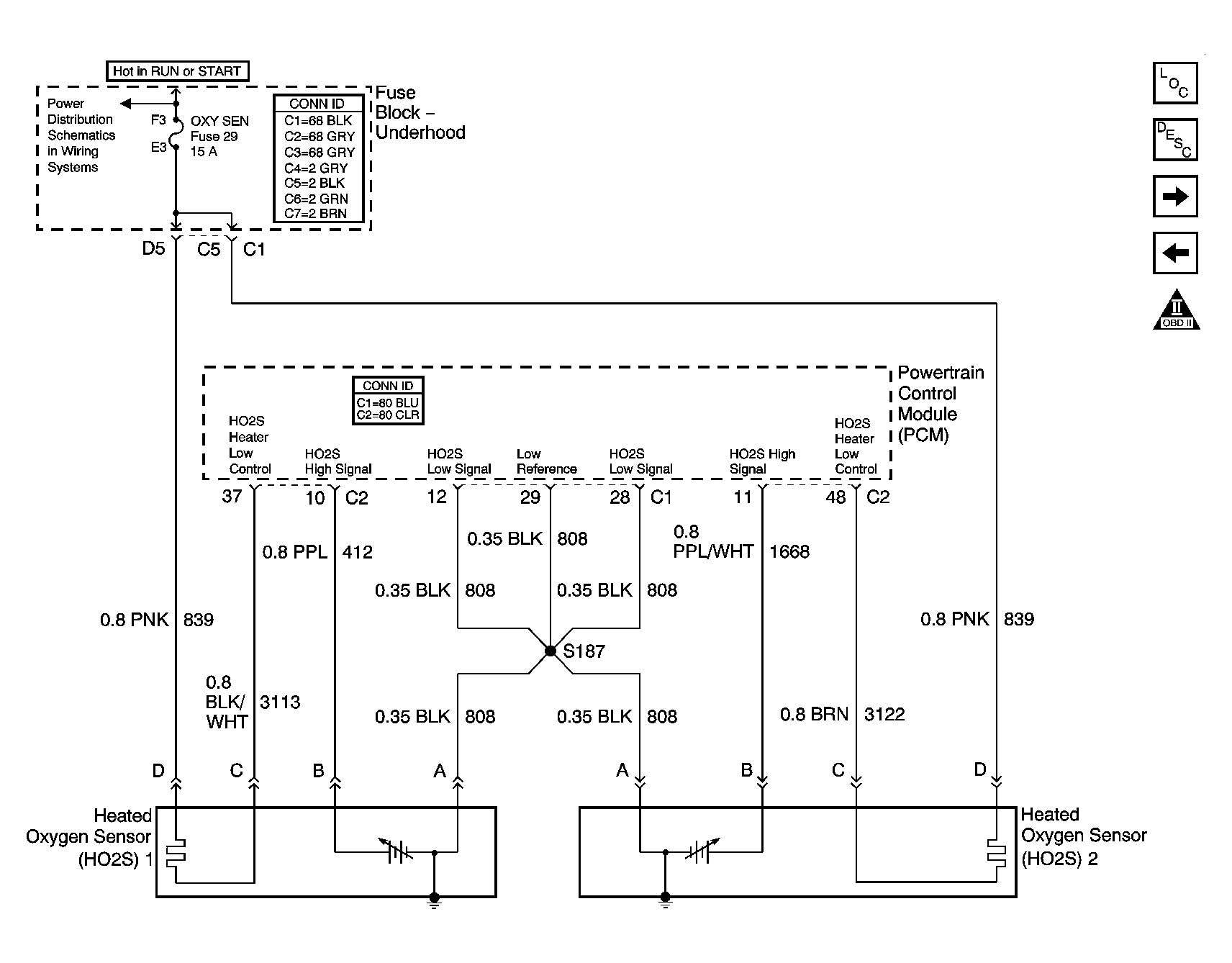

Fig 5: Oxygen Sensors Schematics
Courtesy of GENERAL MOTORS CORP.

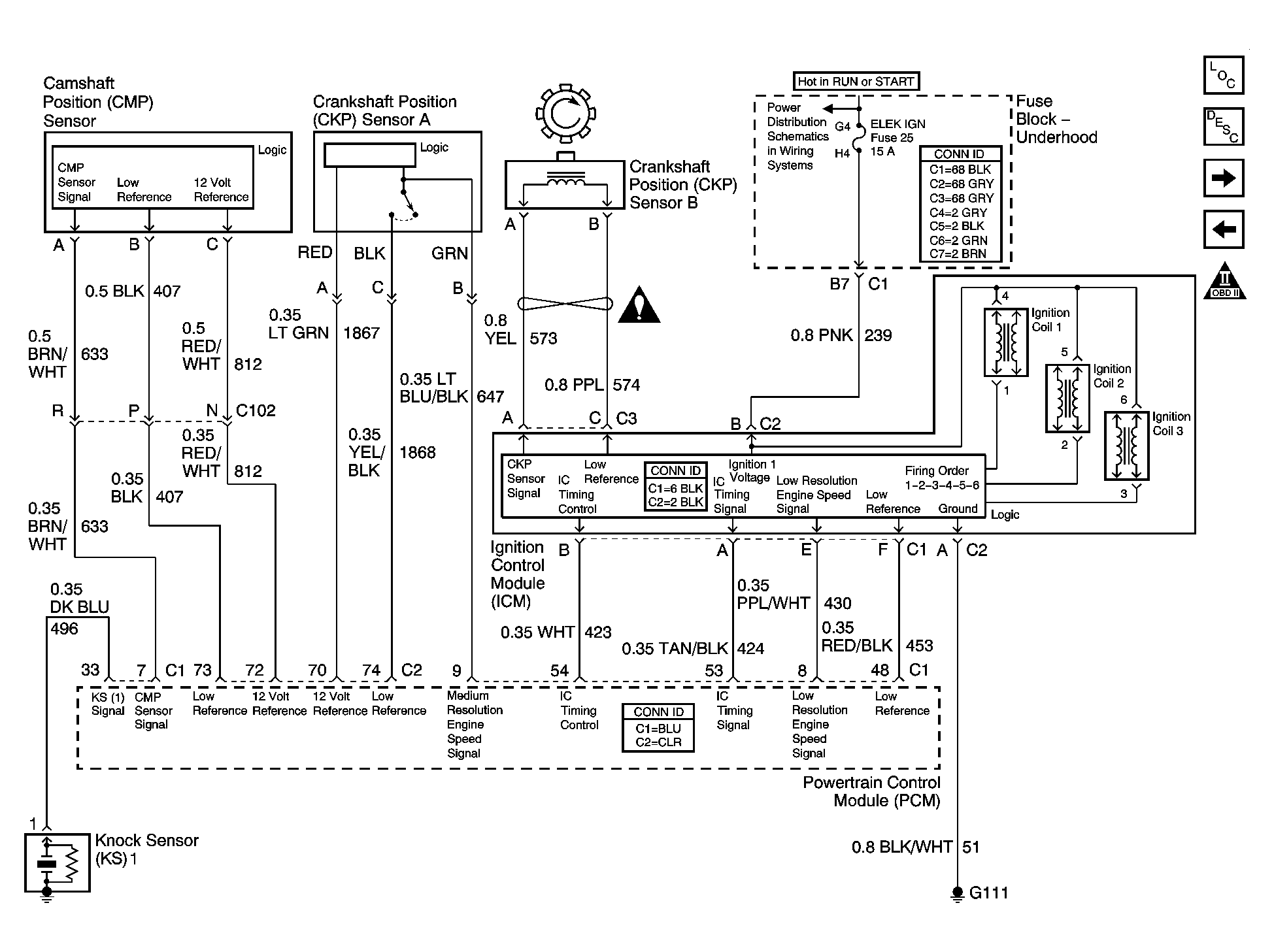

Fig 6: Ignition Control Module Schematic
Courtesy of GENERAL MOTORS CORP.

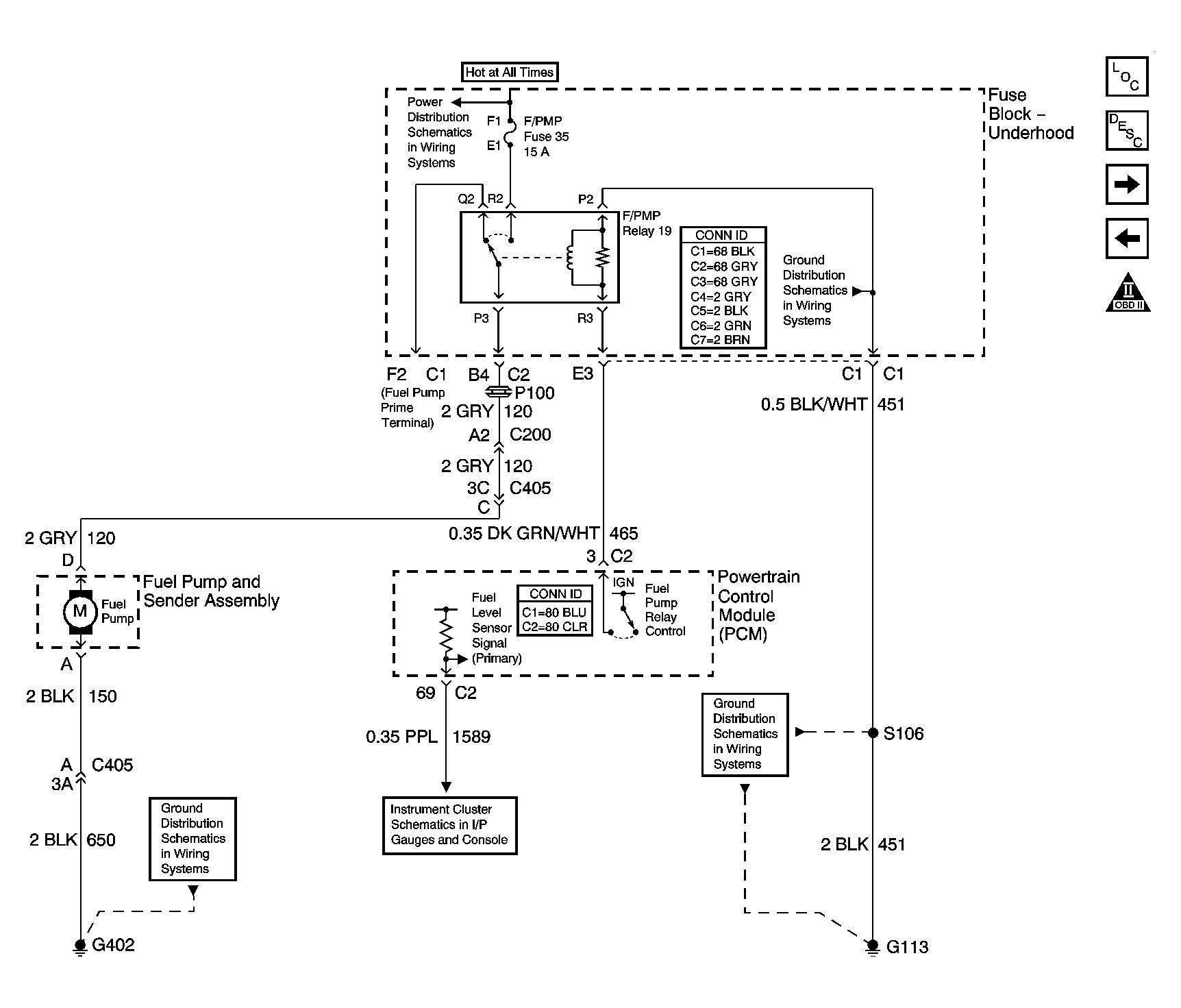

Fig 7: Fuel Pump Controls Schematic
Courtesy of GENERAL MOTORS CORP.

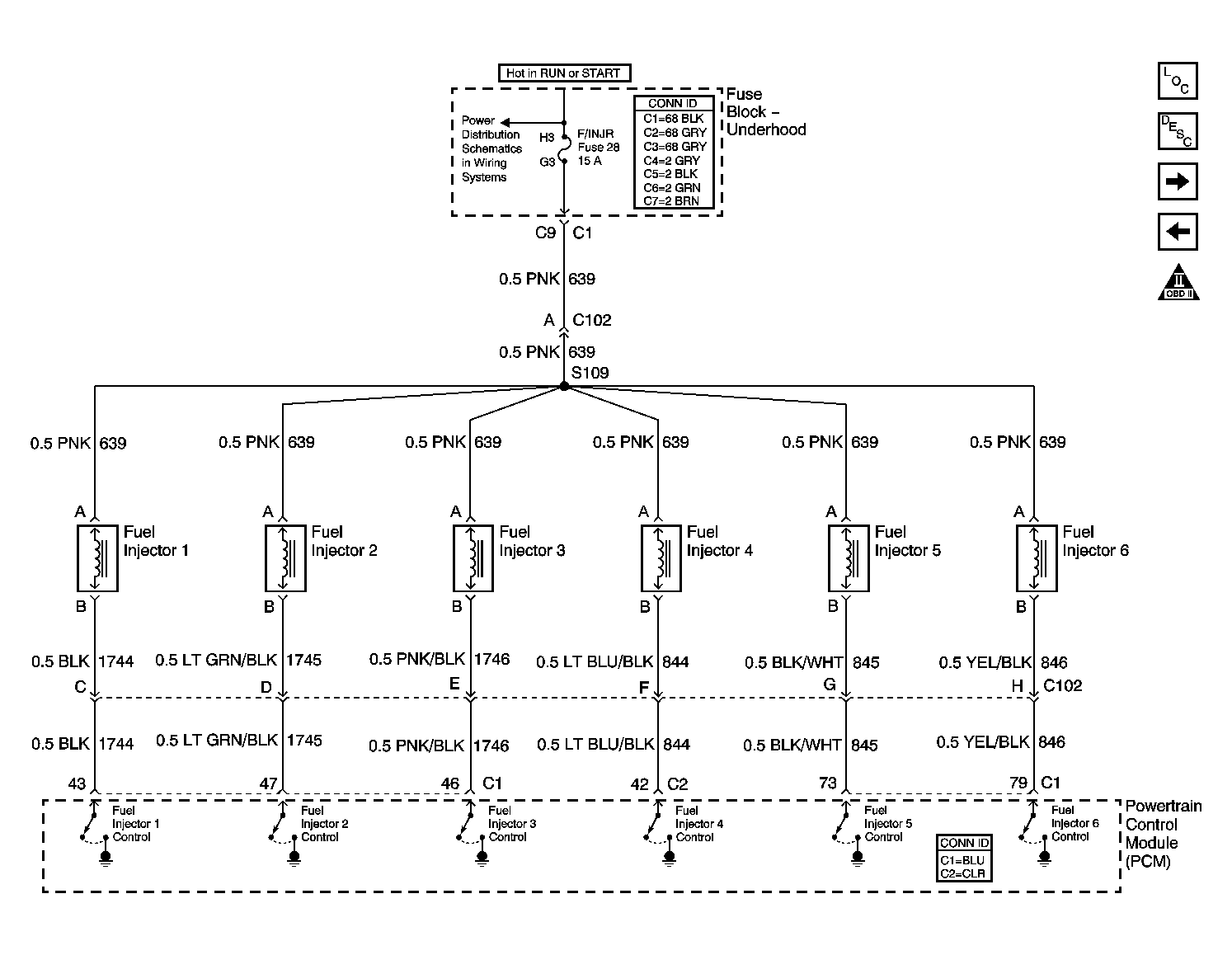

Fig 8: Fuel Injectors Schematic
Courtesy of GENERAL MOTORS CORP.

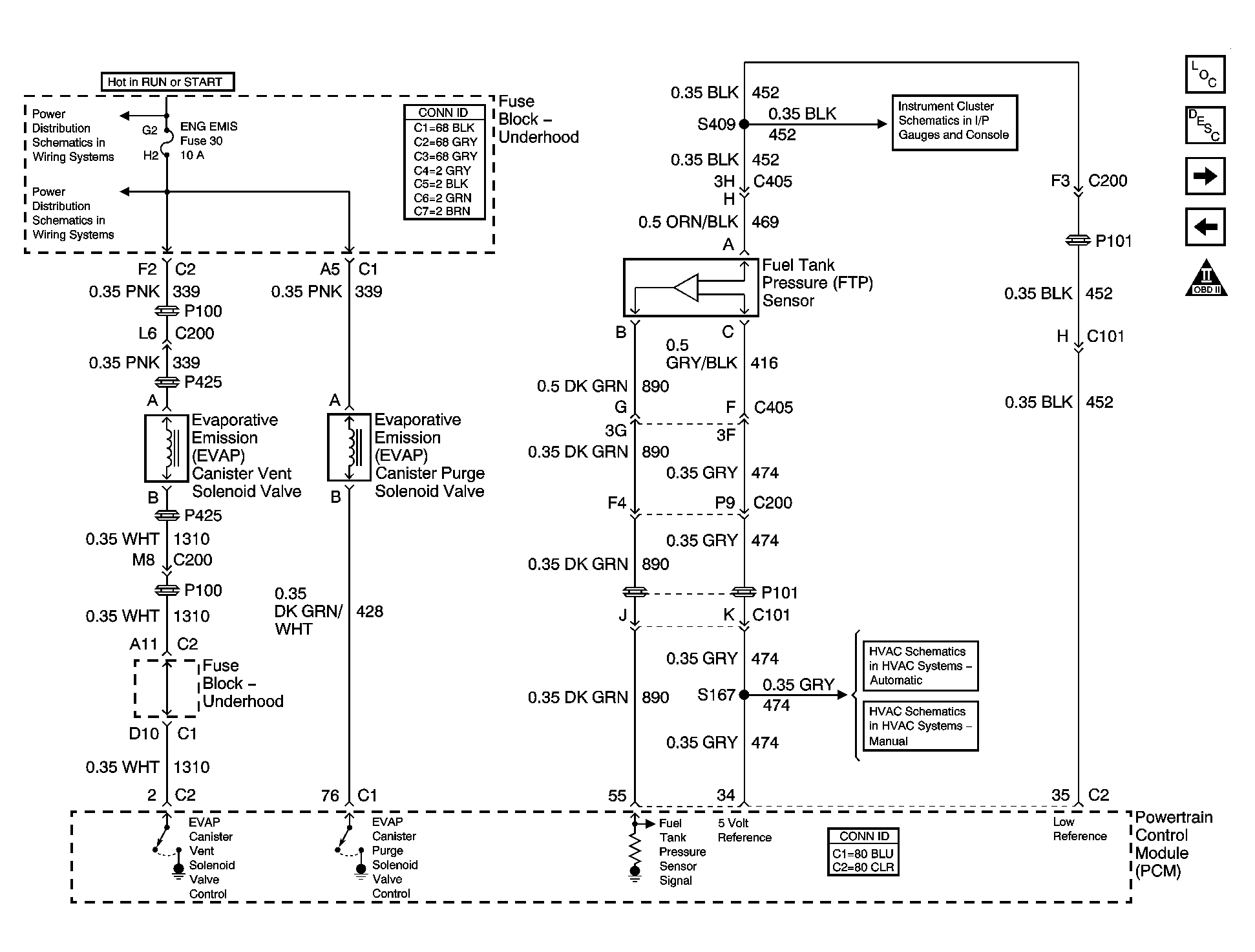

Fig 9: EVAP Controls and FTP Sensor Schematic
Courtesy of GENERAL MOTORS CORP.

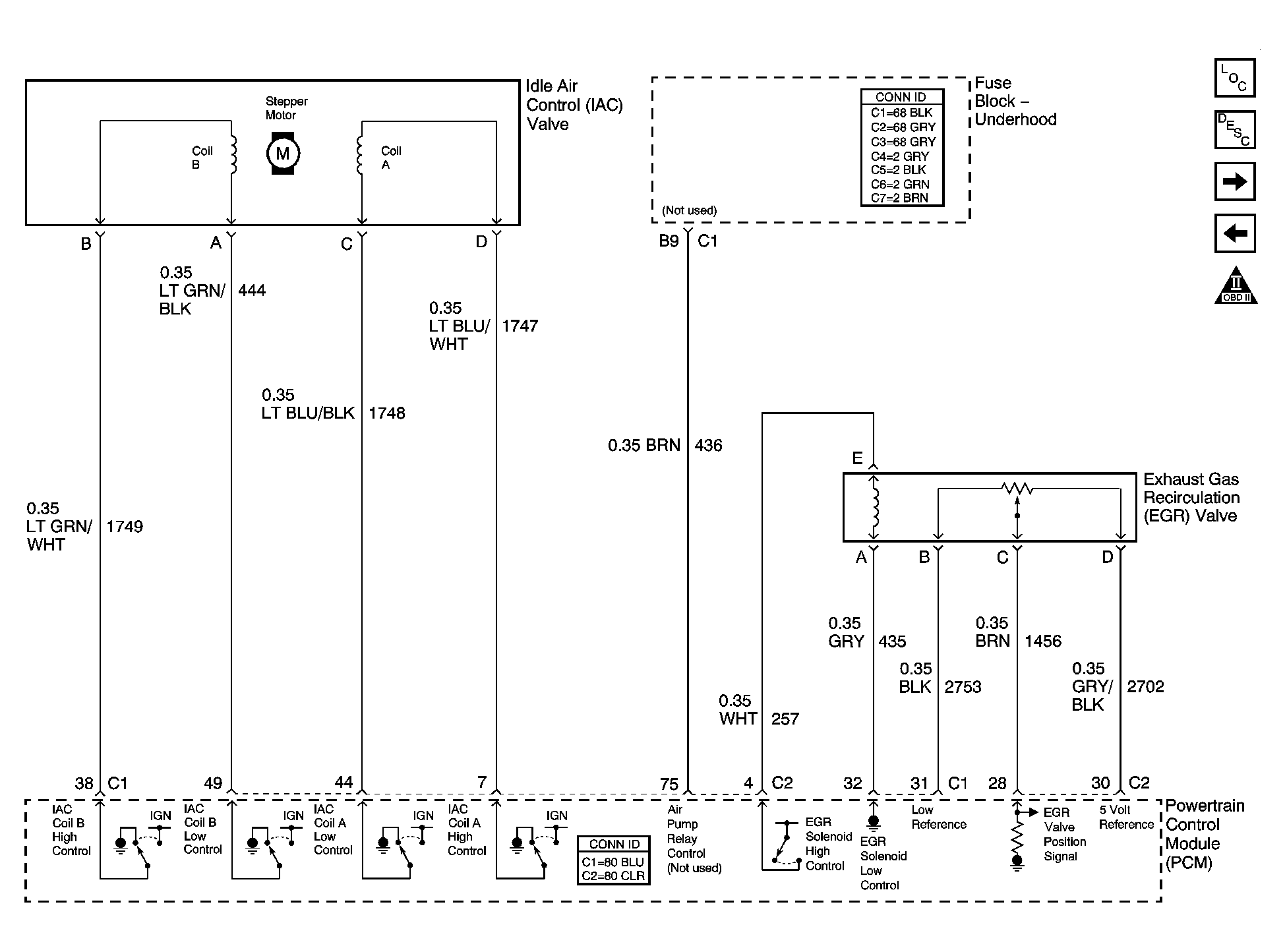

Fig 10: AIR, EGR, and IAC Controls Schematic
Courtesy of GENERAL MOTORS CORP.

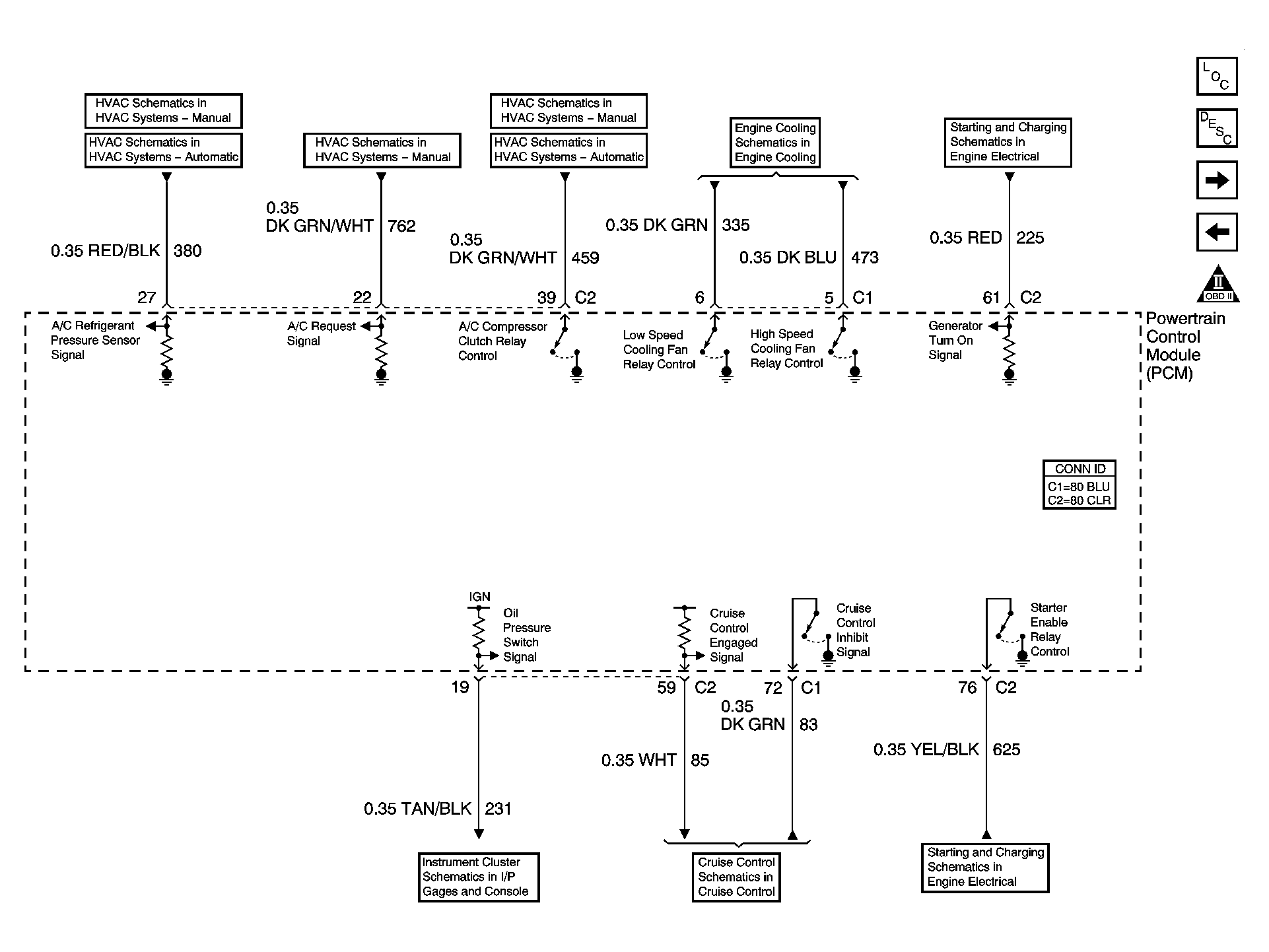

Fig 11: PCM References Schematic - Controlled/Monitored Subsystem
Courtesy of GENERAL MOTORS CORP.

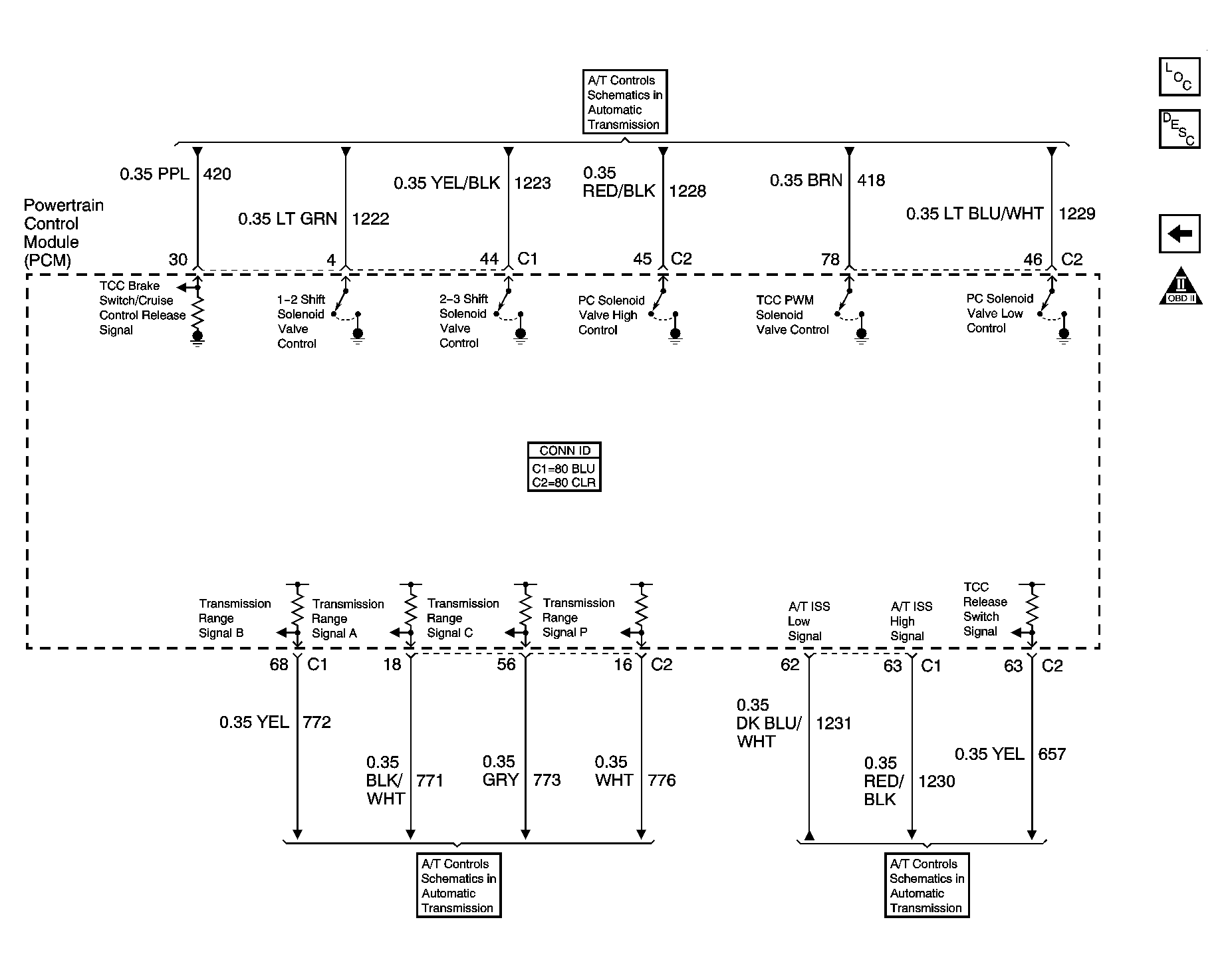

Fig 12: Transmission Control References Schematics
Courtesy of GENERAL MOTORS CORP.
