Rear Camber Adjustment

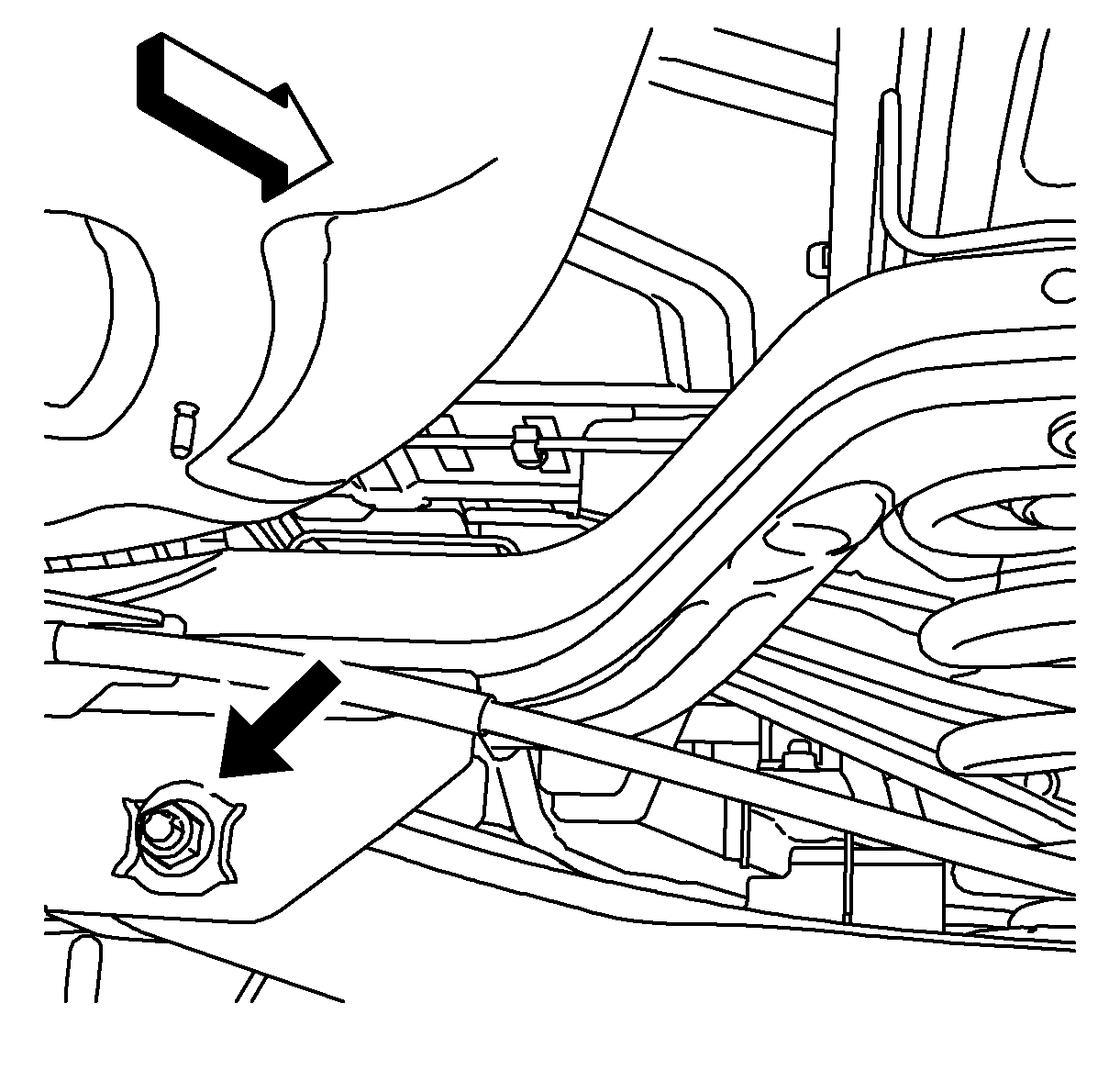

    Fig 1: Upper Control Arm-To-Frame Fastener
    GM2018874Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The frame of the vehicle is slotted, turning the cam nut will move the camber in to the designated location.

  1. Loosen the upper control arm-to-frame fastener enough to allow movement.
  2. Rotate the upper control arm-to-frame fastener in the direction necessary to the correct the camber measurement.
  3. Snug the upper control arm-to-frame fastener, do not tighten at this time.
  4. Reinspect the rear camber specifications and adjust as necessary.
    5. CAUTION:

    Refer to Fastener Caution .

  5. Hold the nut and tighten the NEW upper control arm-to-frame bolt.

    Tighten

    150 N.m (111 lb ft)

  6. Repeat the procedure for the other rear wheel.
