Cigarette Lighter Receptacle Retainer Replacement

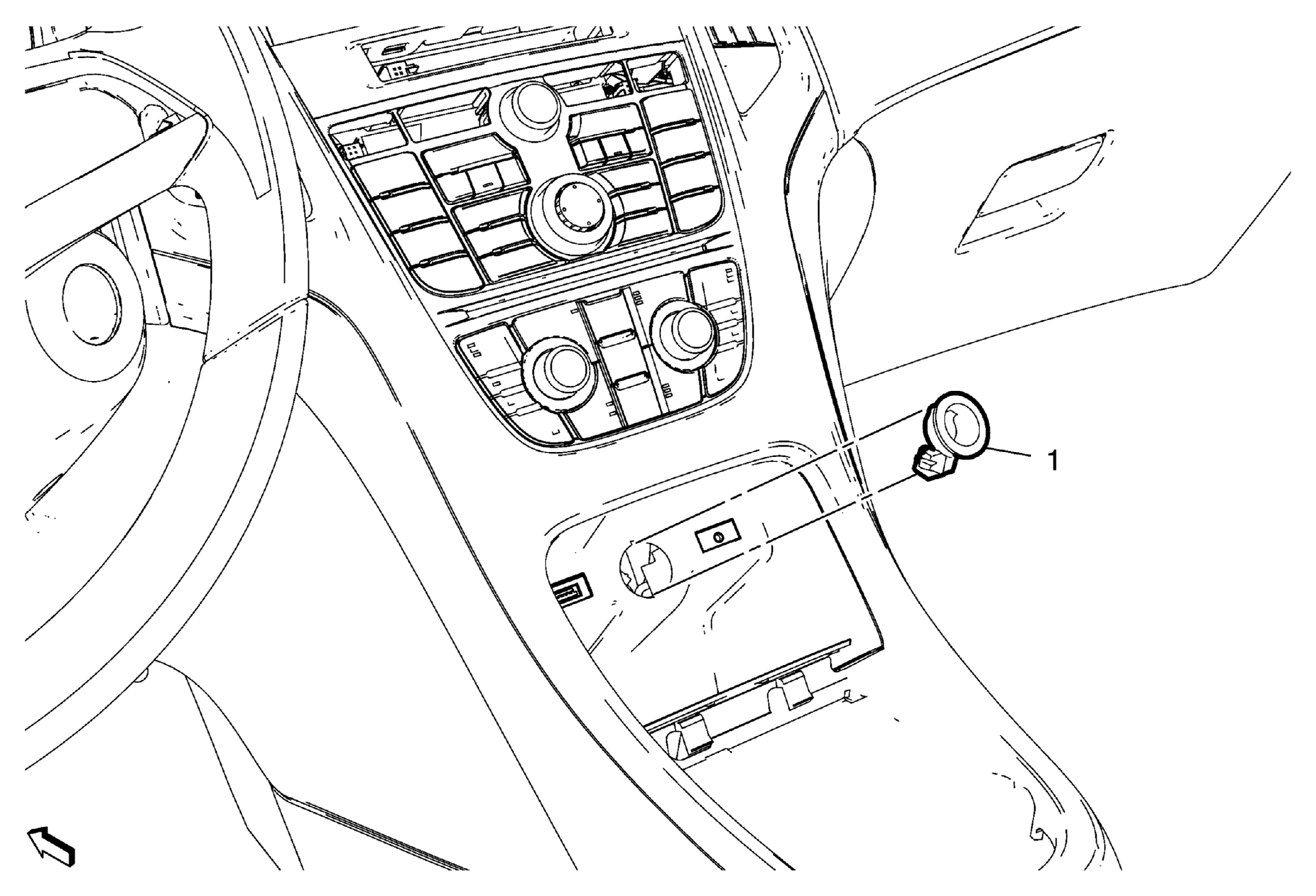

Fig 1: Cigarette Lighter Receptacle Retainer
GM2190577Courtesy of GENERAL MOTORS COMPANY
Cigarette Lighter Receptacle Retainer Replacement

Callout Component Name

Preliminary Procedures

  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove cigarette lighter receptacle. Refer to Cigarette Lighter Receptacle Replacement .
1 Cigarette Lighter Receptacle Retainer
