Rear Camber Adjustment

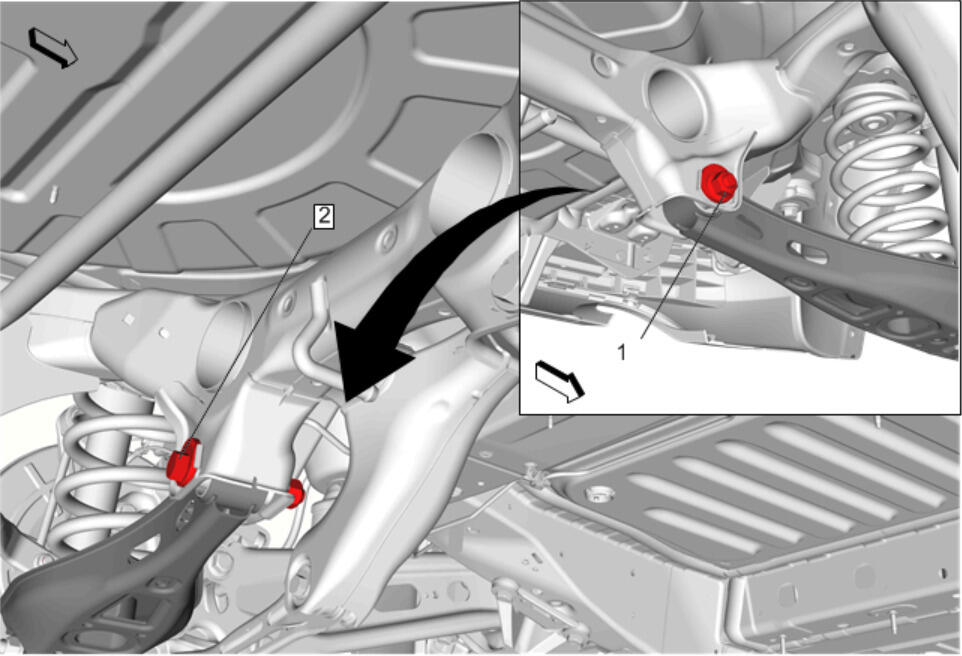

    Fig 1: Rear Camber Adjustment Bolts
    GM3914174Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The frame of the vehicle is slotted, turning the cam bolt will move the camber to the desired location.

  1. Loosen the lower control arm-to-frame nut (1) enough to allow movement.
  2. Rotate the lower control arm-to-frame bolt (2) in the direction necessary to the correct the camber measurement.
  3. Snug the lower control arm-to-frame nut, do not tighten at this time.
  4. Re-inspect the rear camber specifications and adjust as necessary.
  5. Hold the bolt and tighten the lower control arm-to-frame nut. Lower Control Arm Replacement (with F45)Lower Control Arm Replacement (without F45)
  6. Repeat the procedure for the other rear wheel.
