Keyless Entry Control Module Replacement

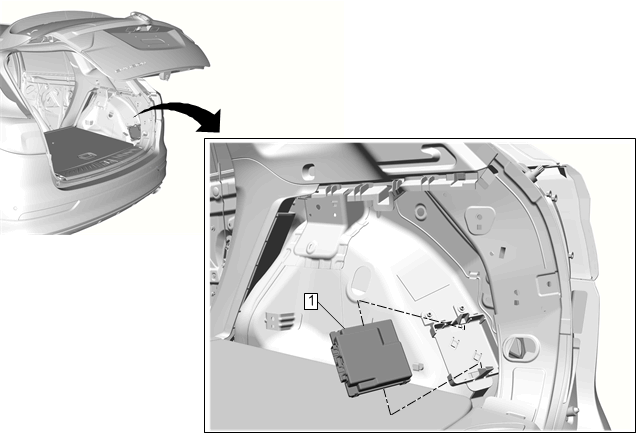

GM3914311Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Quarter Lower Rear Trim Panel Replacement
1 Keyless Entry Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Control Module References for programming and setup information, if required.
