Connector Terminal Identification: Abs: Abs/TCS

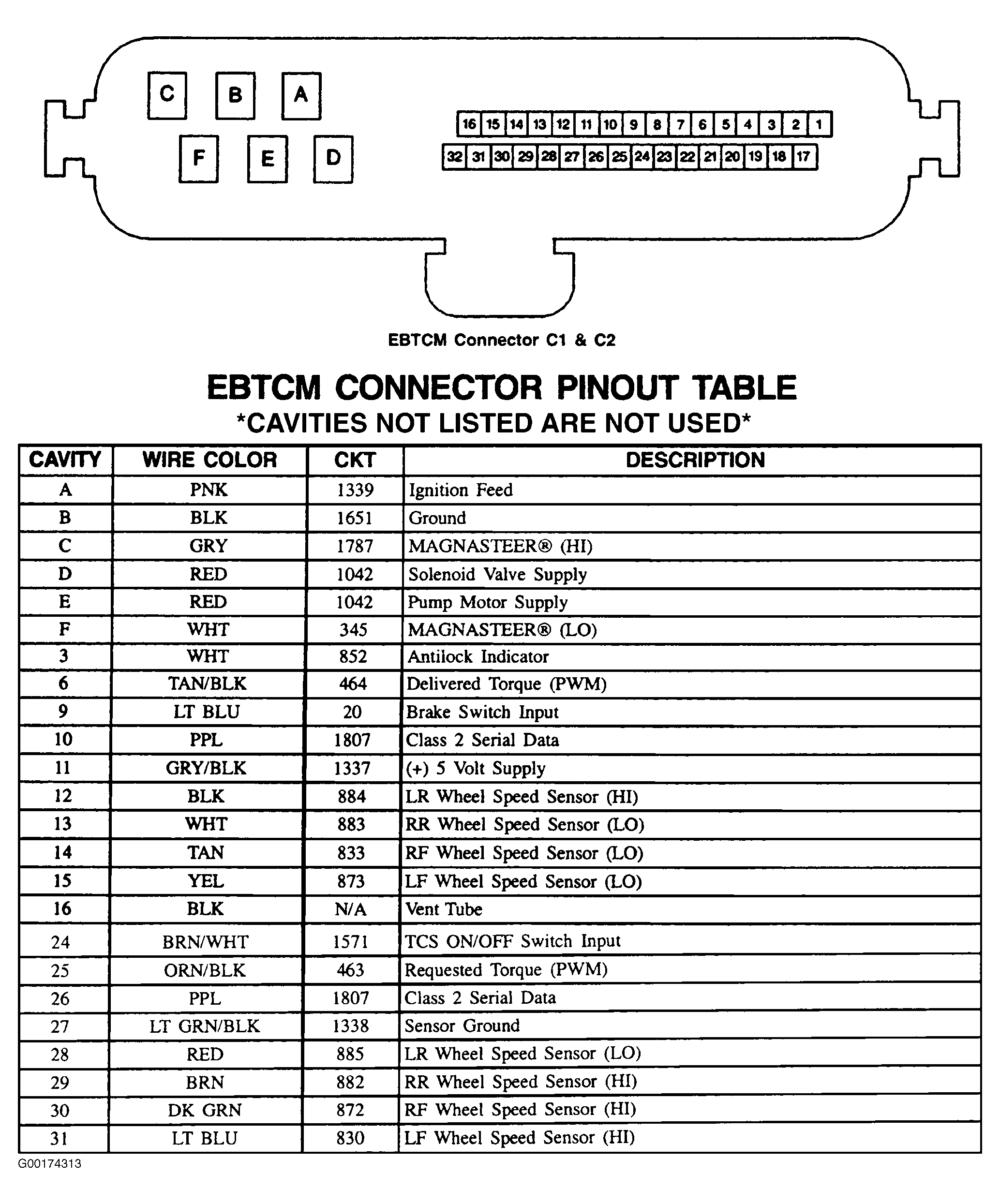

Fig 1: ABS/TCS (EBTCM Connector C1 & C2) - 37-Pin Connector

G00174313

Courtesy of GENERAL MOTORS CORP.
