Home >> Cadillac >> 1997 >> DeVille Base >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Abs >> Abs/TCS/ICCS

Connector Terminal Identification: Abs: Abs/TCS/ICCS

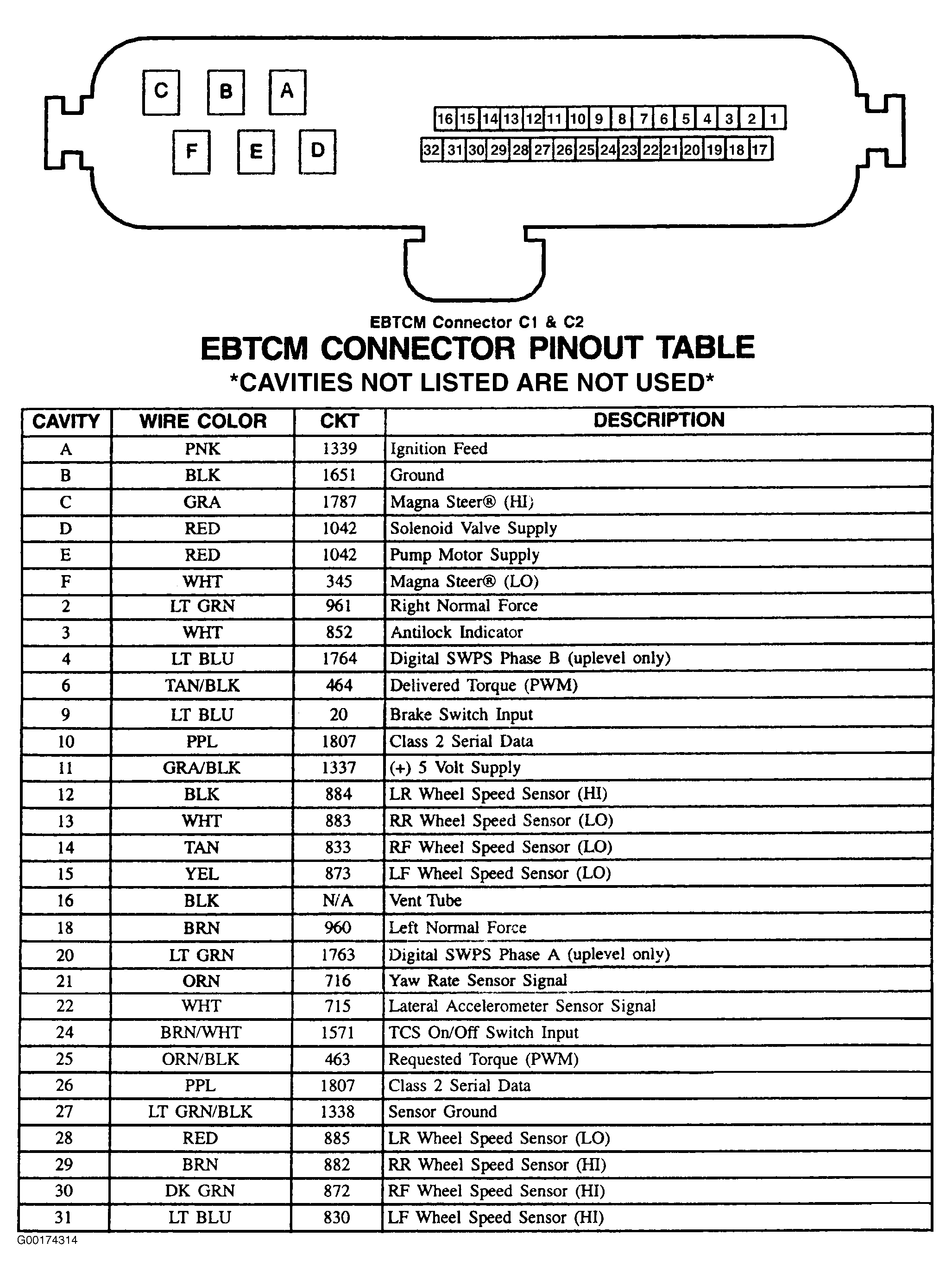

Fig 1: ABS/TCS/ICCS (EBTCM Connector C1 & C2) - 37-Pin Connector

G00174314

Courtesy of GENERAL MOTORS CORP.
