Connector Terminal Identification
>>
Continuously Variable Road Sensing Suspension Module
>>
Continuously Variable Road Sensing Suspension (CVRSS) Module C1
Continuously Variable Road Sensing Suspension (CVRSS) Module C1

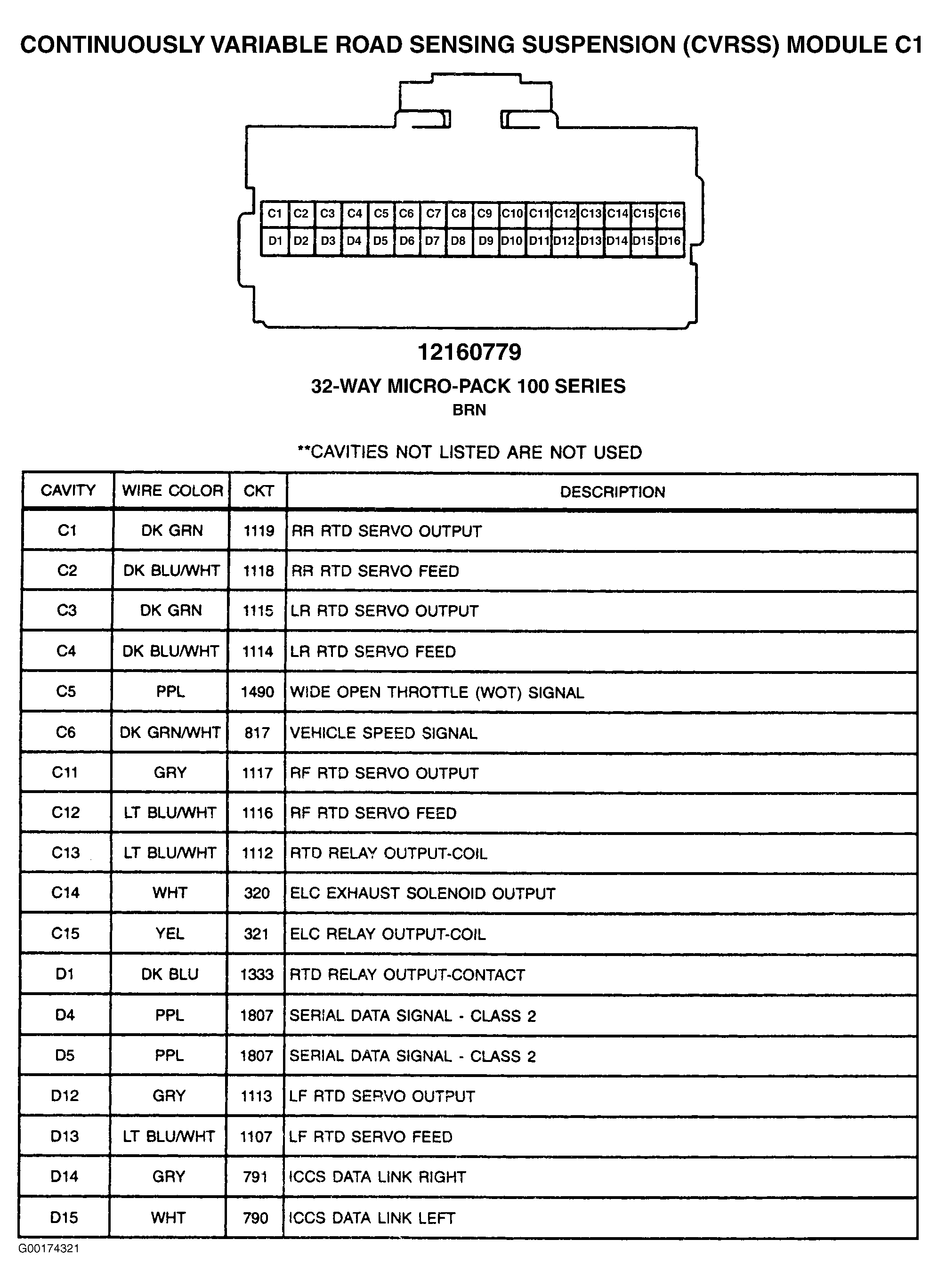

Fig 1: Continuously Variable Road Sensing Suspension (CVRSS) Module C1 - 32-Pin Connector (Brown)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
