Home >> Cadillac >> 1997 >> DeVille Base >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Power Windows - Front >> Power Window Switch C1 (Front) - Left-Hand

Power Window Switch C1 (Front) - Left-Hand

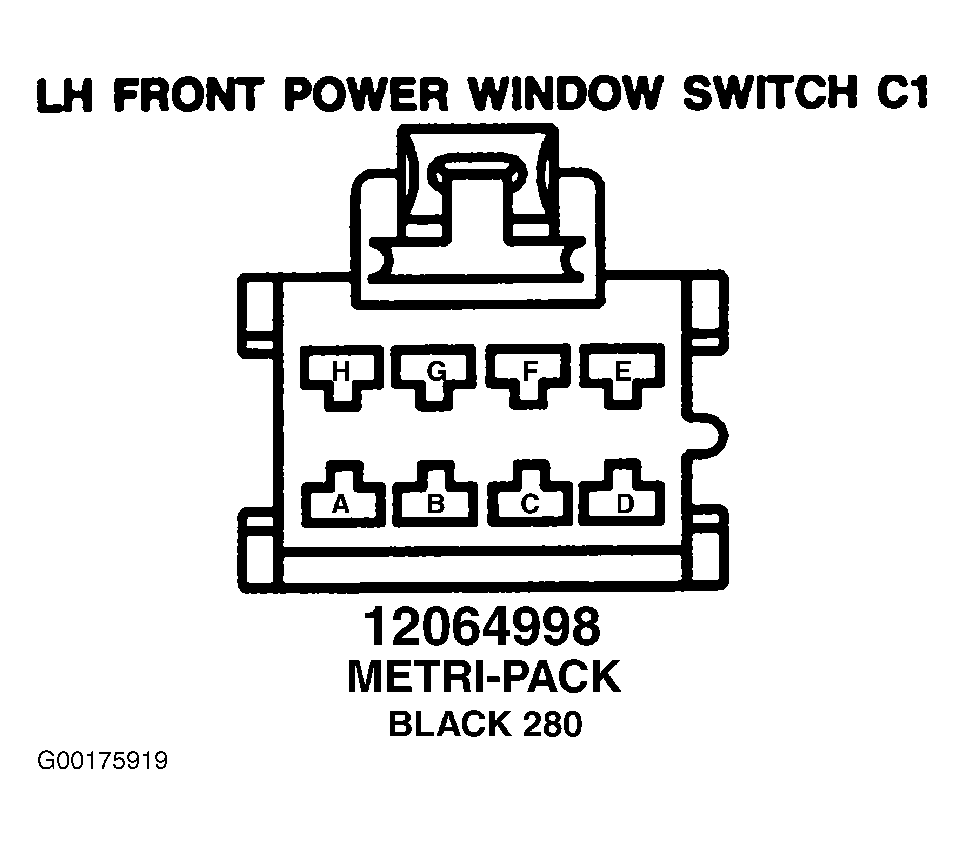

Fig 1: Power Window Switch C1 - Front (Left-Hand) - 8-Pin Connector (Black)

G00175919

Courtesy of GENERAL MOTORS CORP.
