Radio (IRC)

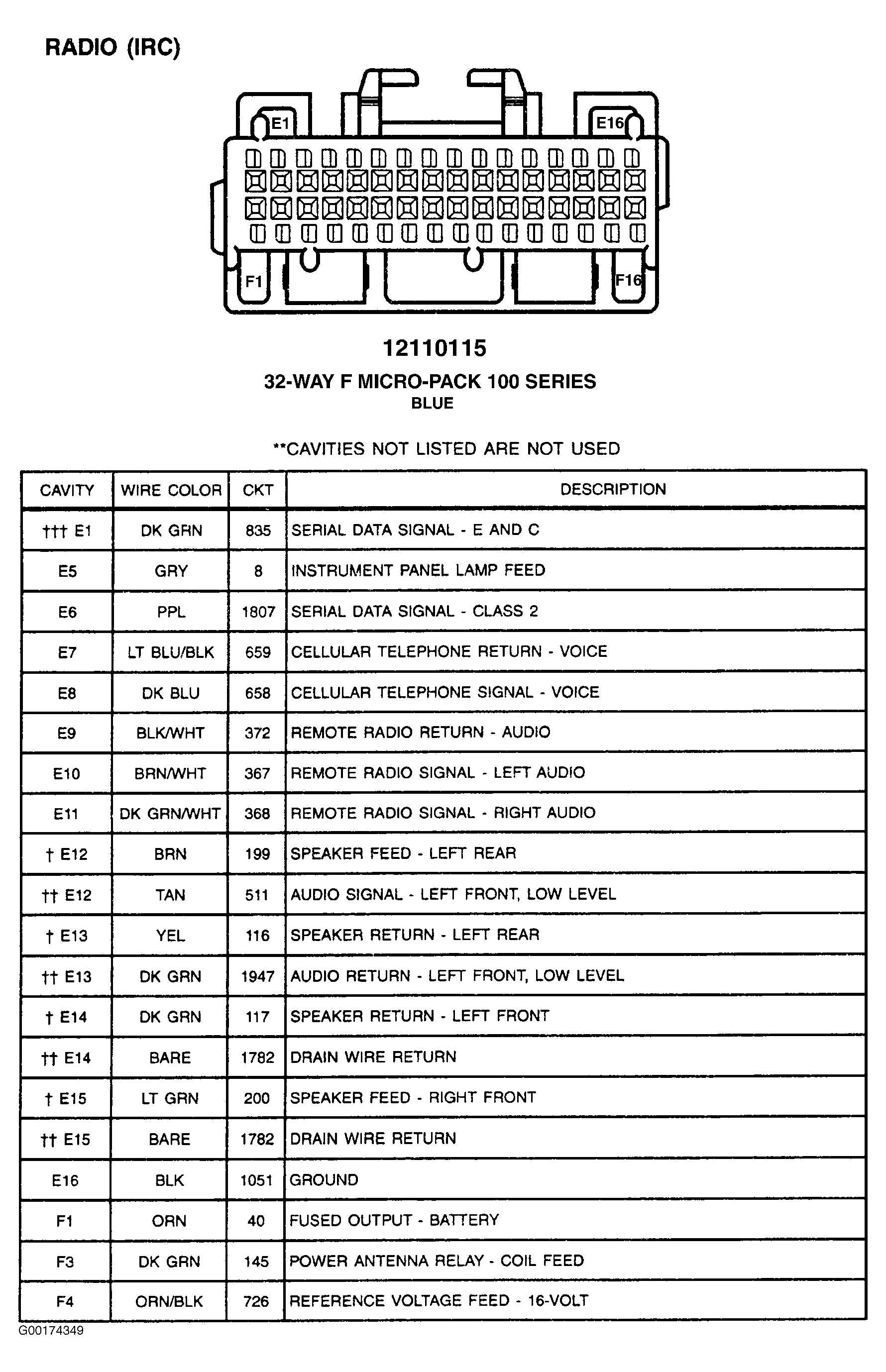

Fig 1: Radio (IRC) - 32-Pin Connector (Blue) 1 Of 2

G00174349

Courtesy of GENERAL MOTORS CORP.

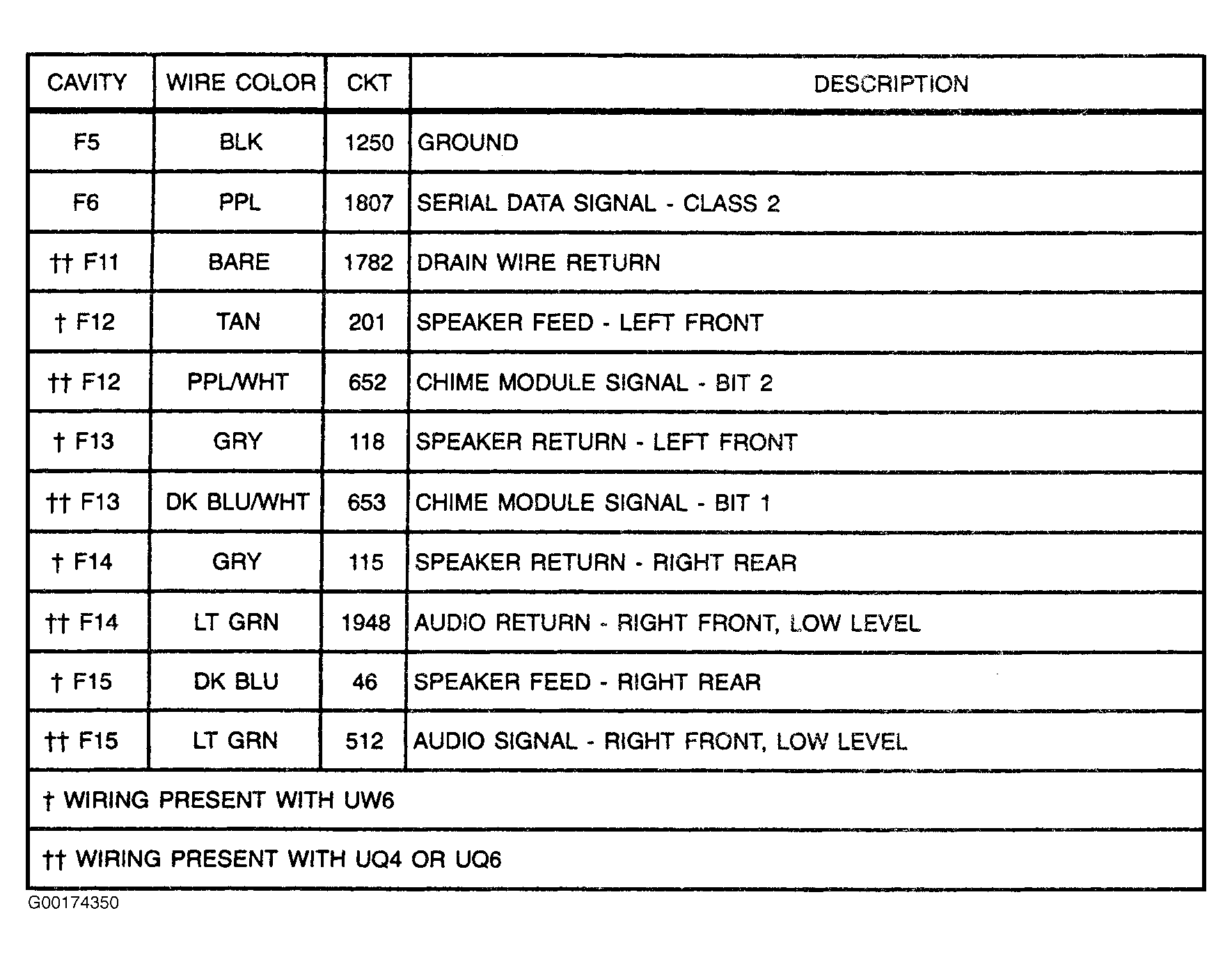

Fig 2: Radio (IRC) - 32-Pin Connector (Blue) 2 Of 2

G00174350

Courtesy of GENERAL MOTORS CORP.
