Keyless Entry System
>>
Component Locator
>>
Keyless Entry Component Views
Keyless Entry Component Views

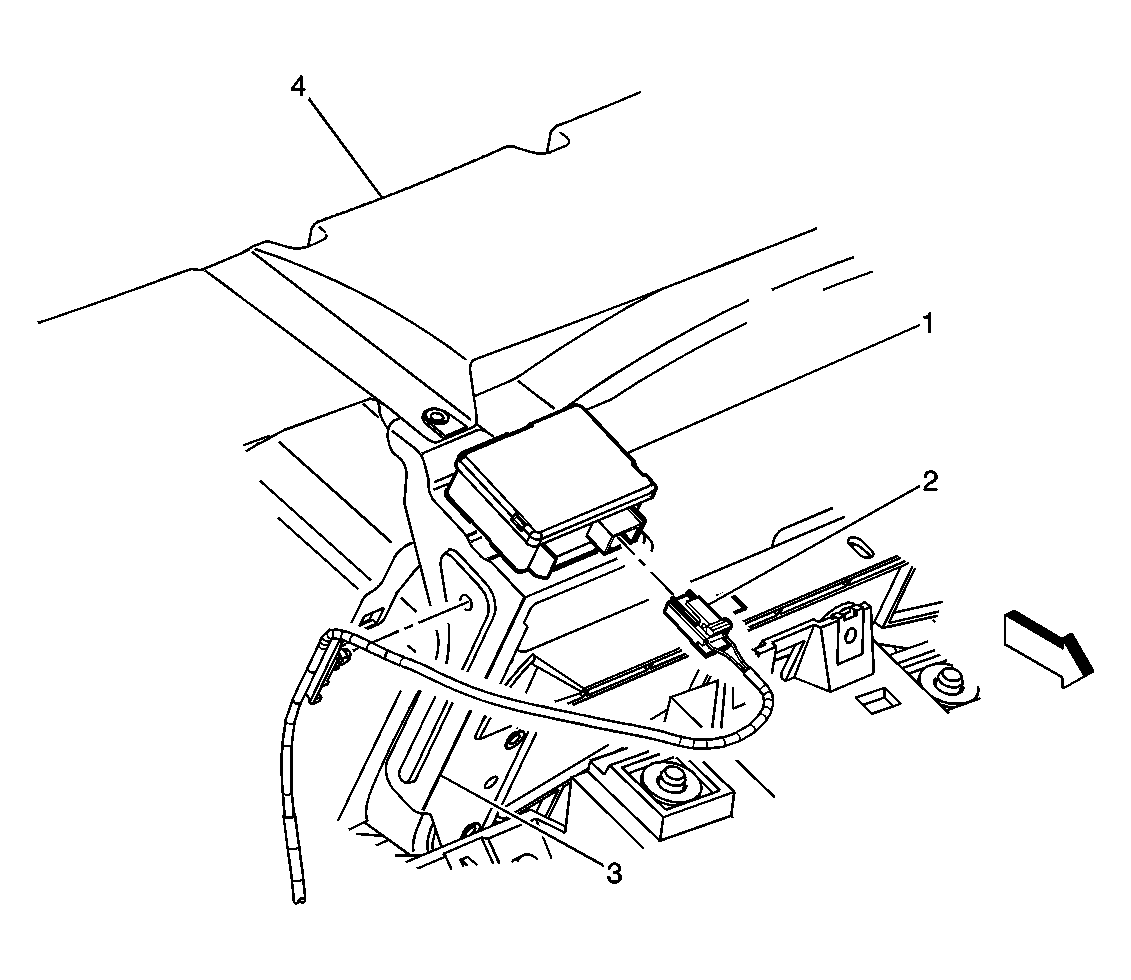

Fig 1: Remote Control Door Lock Receiver (Connector View)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Remote Control Door Lock Receiver (RCDLR)
2
Remote Control Door Lock Receiver Connector (RCDLR)
3
Instrument Panel Carrier
4
Instrument Panel Cluster (IPC)
