Scan Tool Data List
Scan Tool Data List
Fig 1: Rear Integration Module - Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.

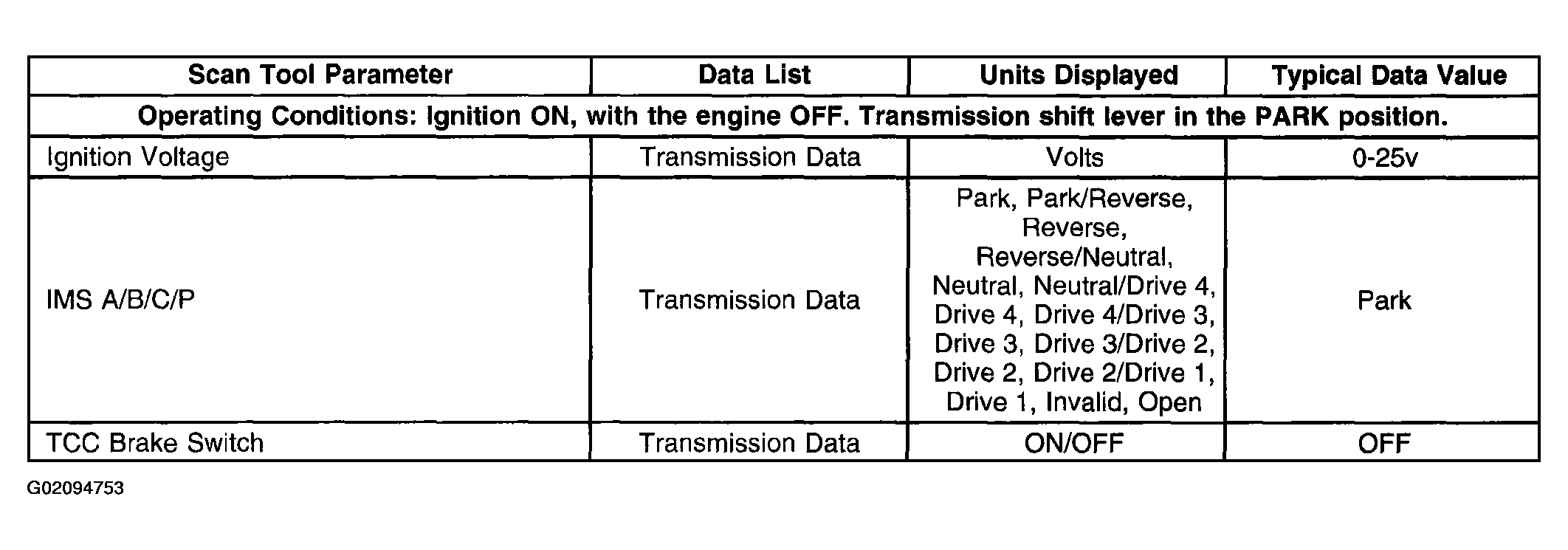

Fig 2: Powertrain Control Module (PCM) - Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
