Removal Procedure

  1. Remove the shift control boot. Refer to FLOOR SHIFT CONTROL BOOT . .
  2. Remove the center console assembly. Refer to CONSOLE REPLACEMENT - FRONT FLOOR in Instrument Panel, Gages and Console.
  3. Disconnect the wiring harness connector (1) from the shift lock control pigtail connector (2).
  4. Slide the pigtail connector (2) off of the retainer (3).
  5. Remove the pigtail harness from the wire retainer (4).

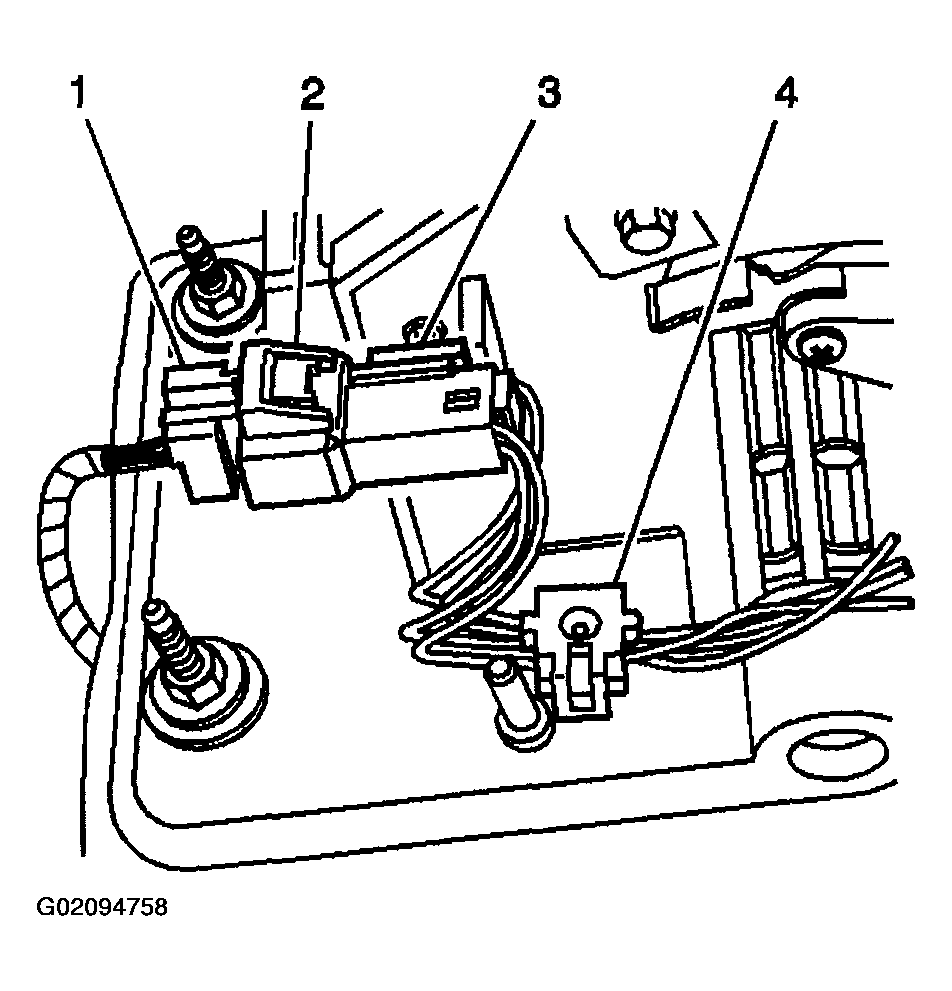

    Fig 1: Removing Pigtail Harness
    G02094758Courtesy of GENERAL MOTORS CORP.
  6. Remove the three shift lock actuator attaching screws (1).
  7. Remove the shift lock actuator (2) from the shift control assembly.

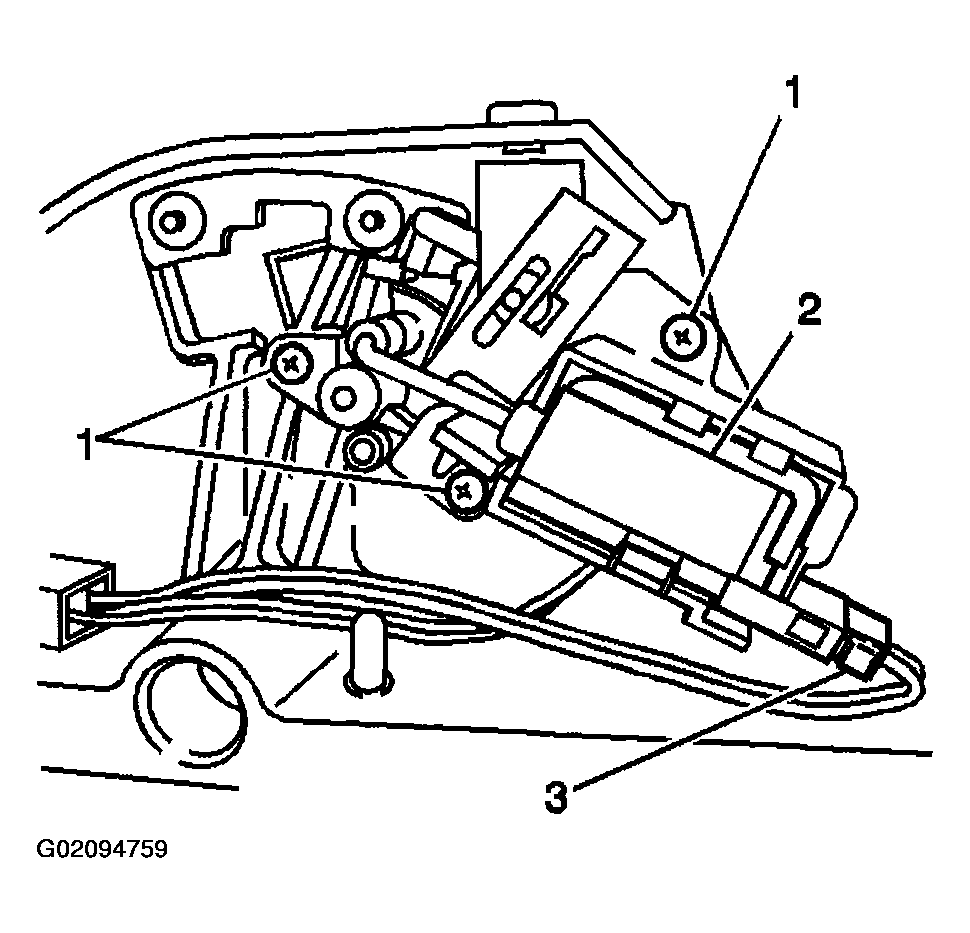

    Fig 2: Locating Shift Lock Actuator & Retaining Screws
    G02094759Courtesy of GENERAL MOTORS CORP.
