Automatic Transmission Shift Lock Control Connector End Views
Automatic Transmission Shift Lock Control Connector End Views

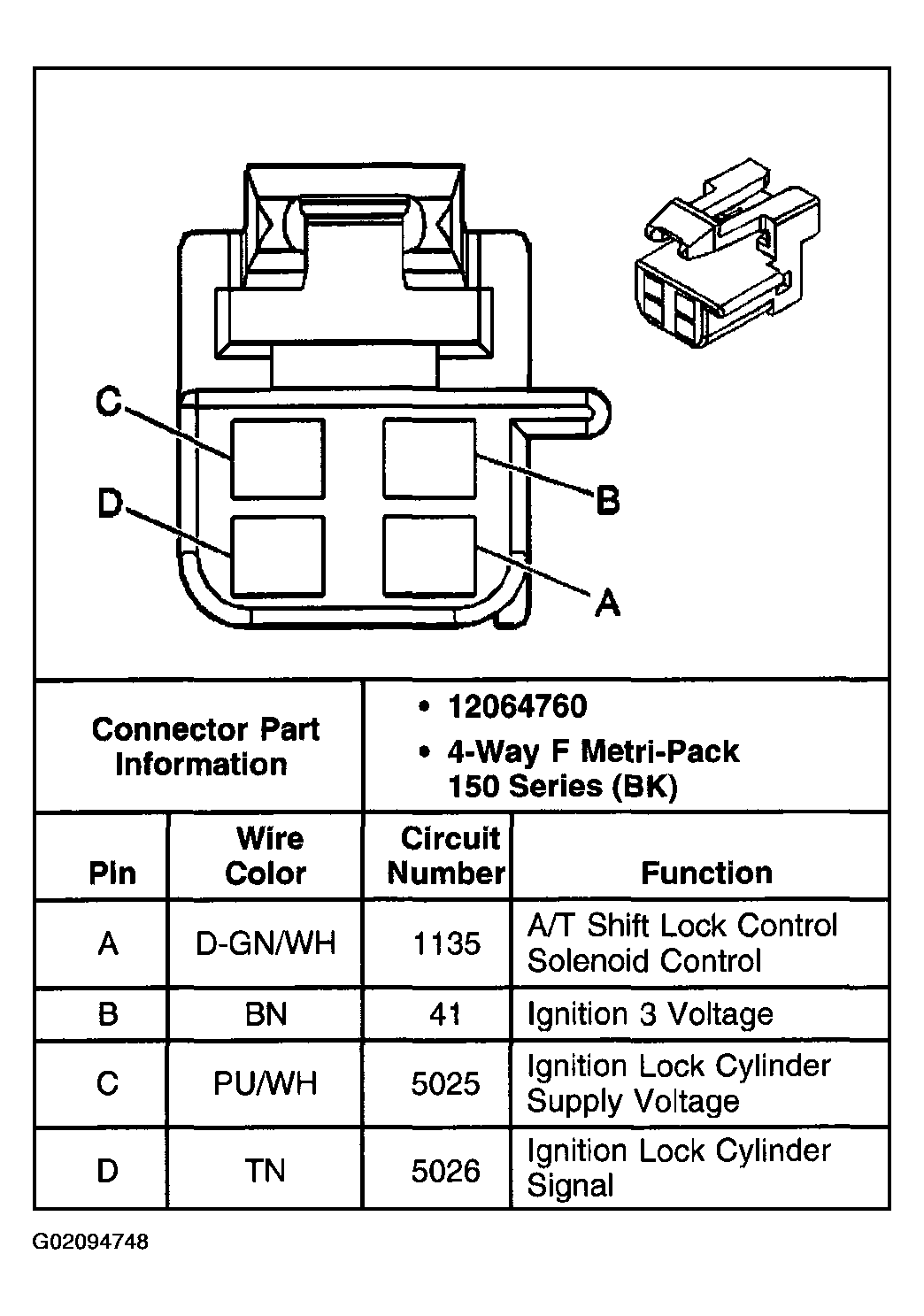

Fig 1: Shift Control Assembly Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
