Automatic Transmission Shift Lock Control Component Views

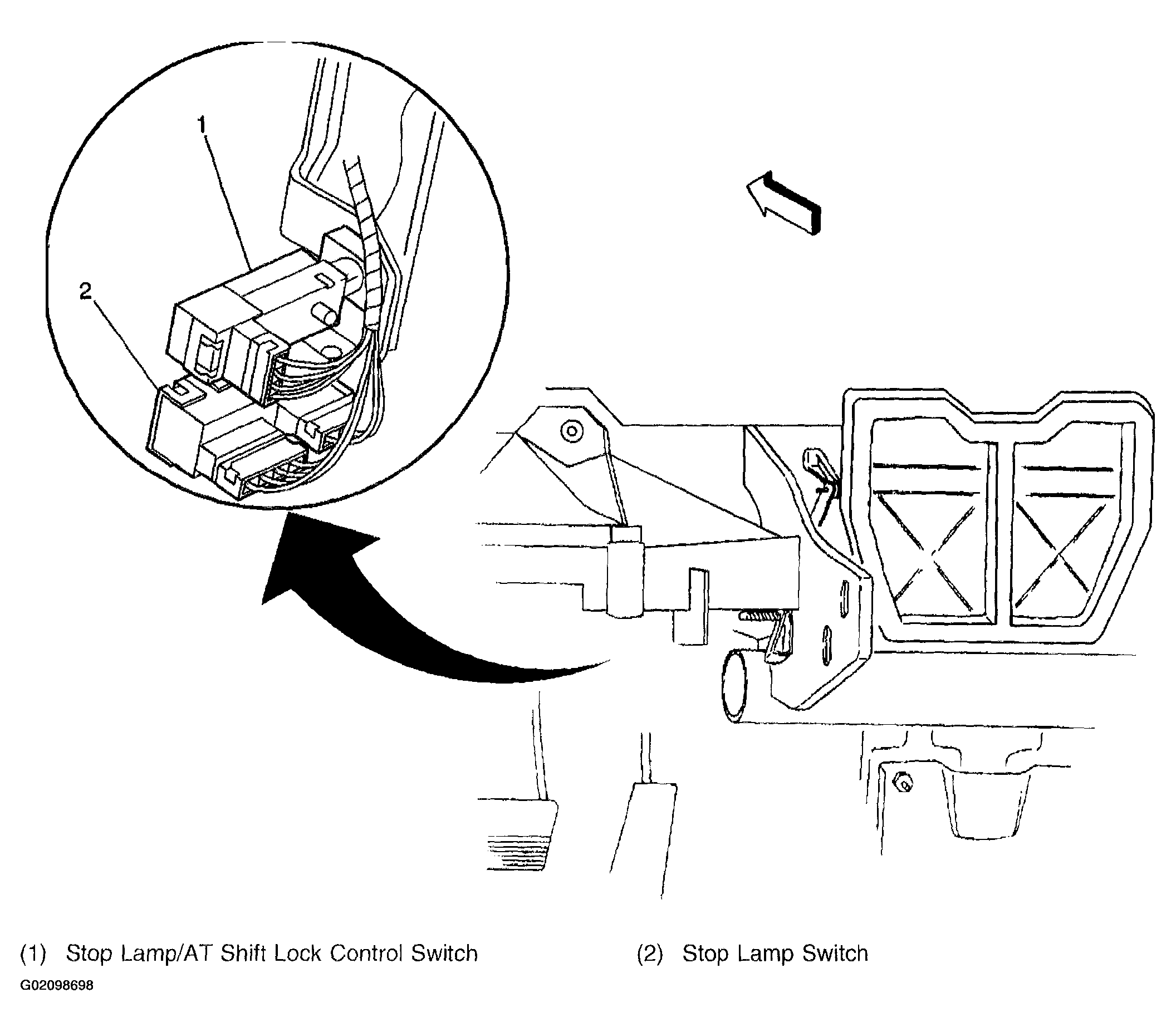

Fig 1: Automatic Transmission Shift Lock Control Component Views - Left Side Of Instrument Panel
G02098698Courtesy of GENERAL MOTORS CORP.

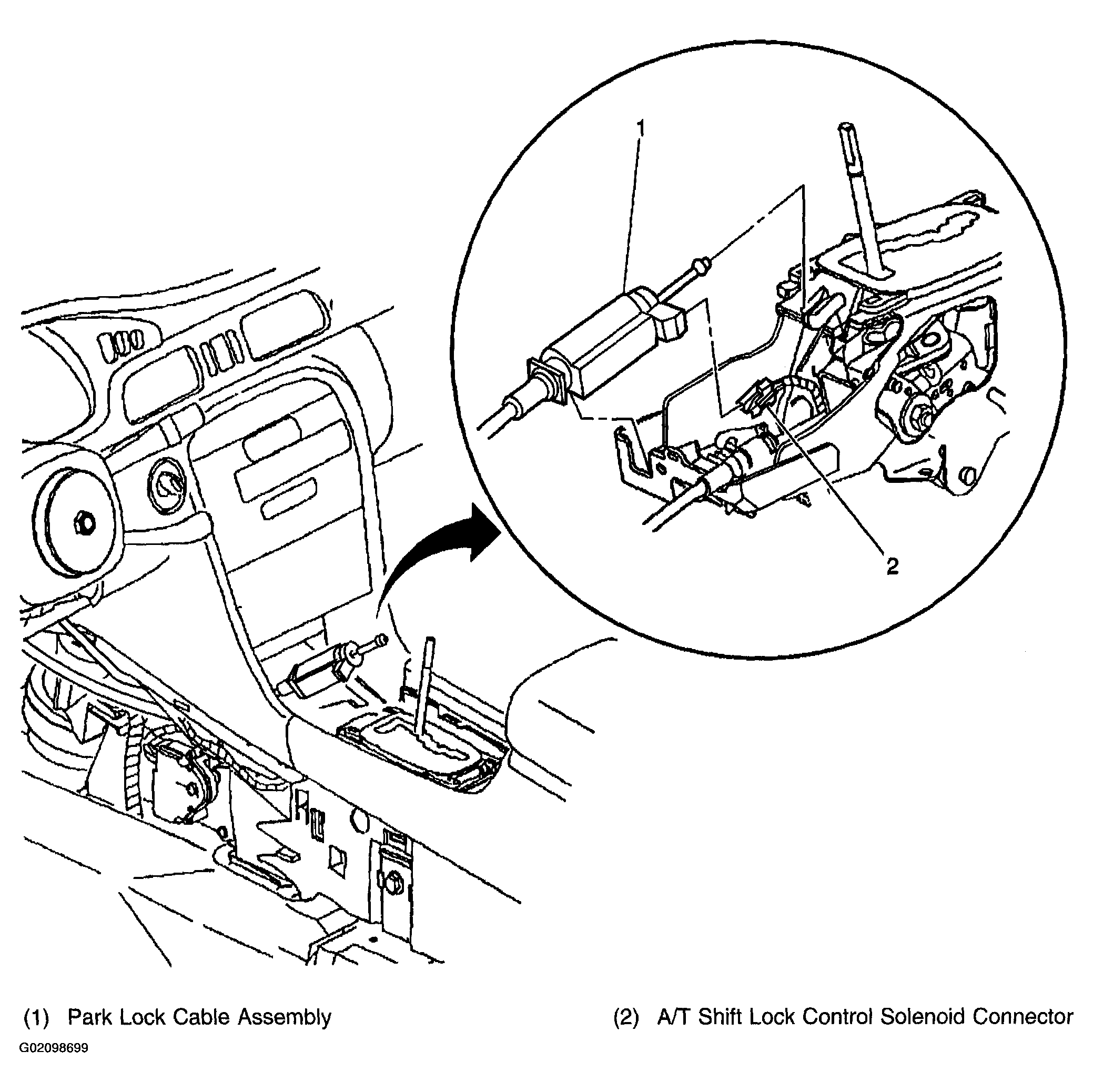

Fig 2: Automatic Transmission Shift Lock Control Component Views - Beneath Center Console
G02098699Courtesy of GENERAL MOTORS CORP.
