Installation Procedure

Install the battery insulator, if necessary.
Install the battery.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the battery hold down retainer and bolt.
Tighten

Tighten the bolt to 25 N.m (18 lb ft).

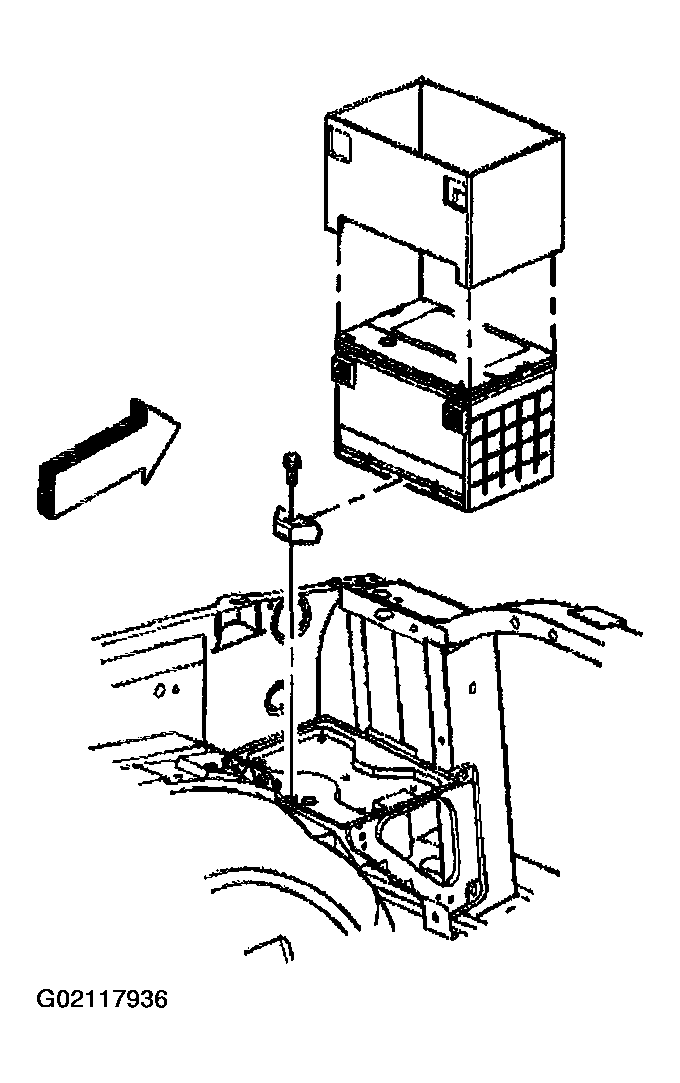

Fig 1: Installing Battery Hold Down Retainer And Bolt
Courtesy of GENERAL MOTORS CORP.
Install the front end diagonal brace and bolts.
Tighten

Tighten the bolts to 9 N.m (80 lb in).

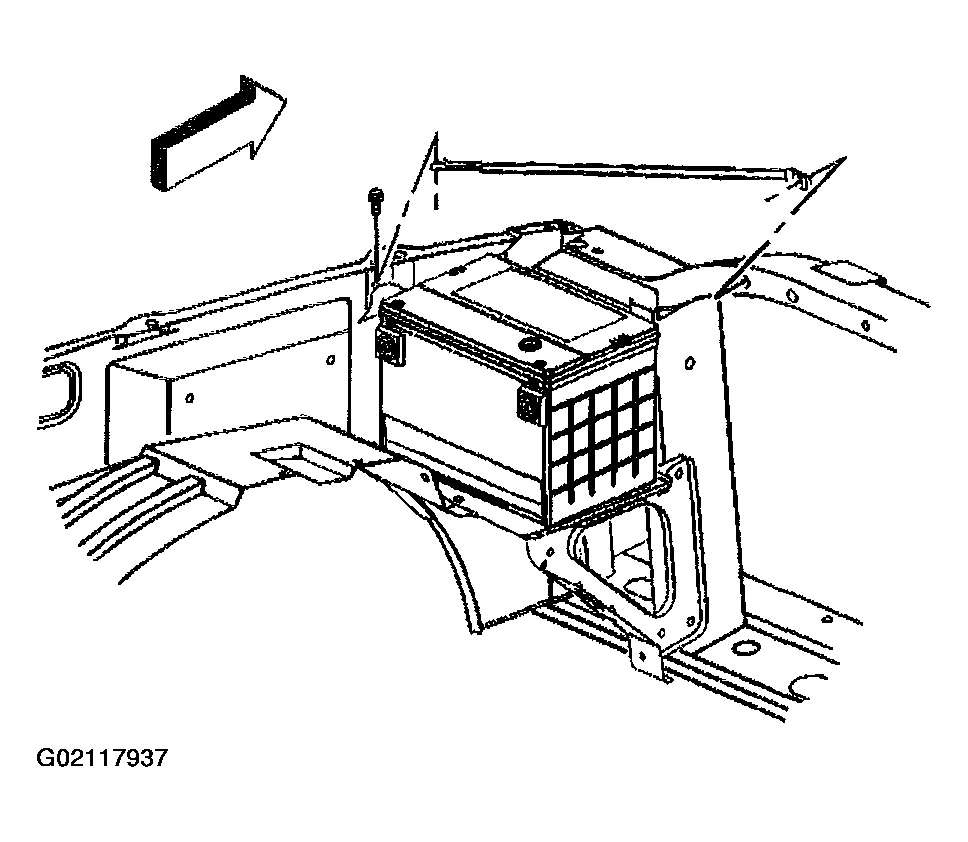

Fig 2: Installing Front End Diagonal Brace And Bolts
Courtesy of GENERAL MOTORS CORP.
Connect the positive battery cable.
Tighten

Tighten the bolt to 17 N.m (13 lb ft).
Snap the positive battery cable cap closed.

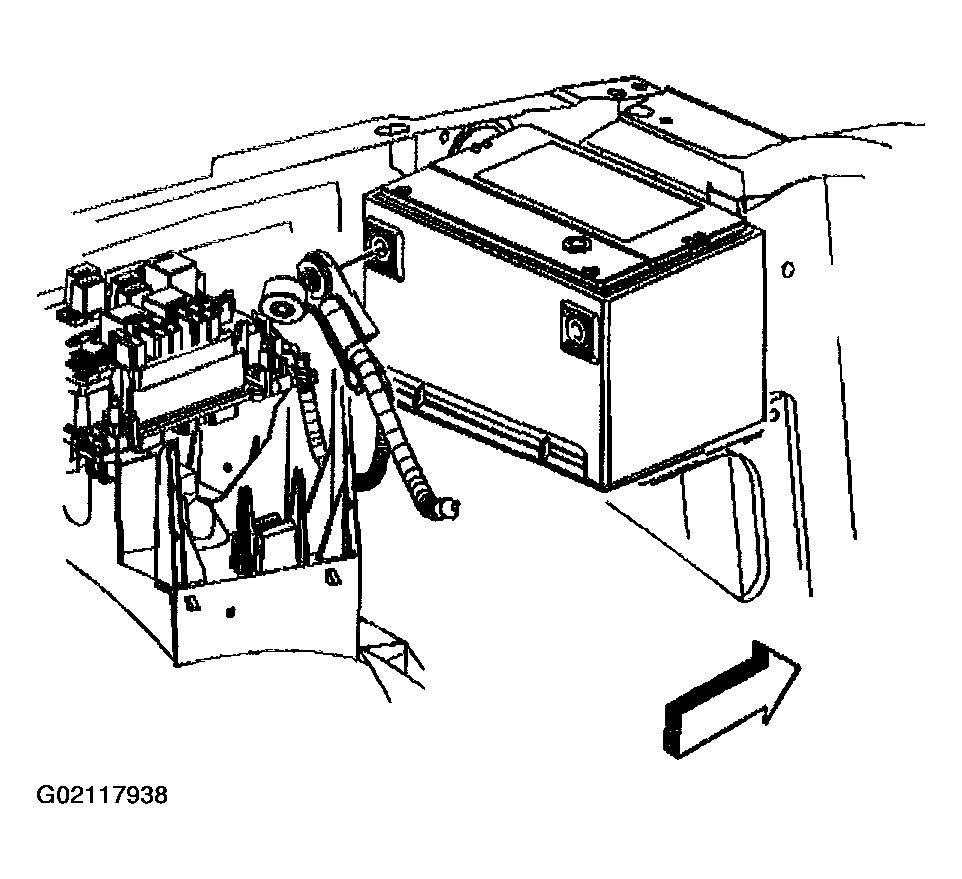

Fig 3: Connecting Positive Battery Cable
Courtesy of GENERAL MOTORS CORP.
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

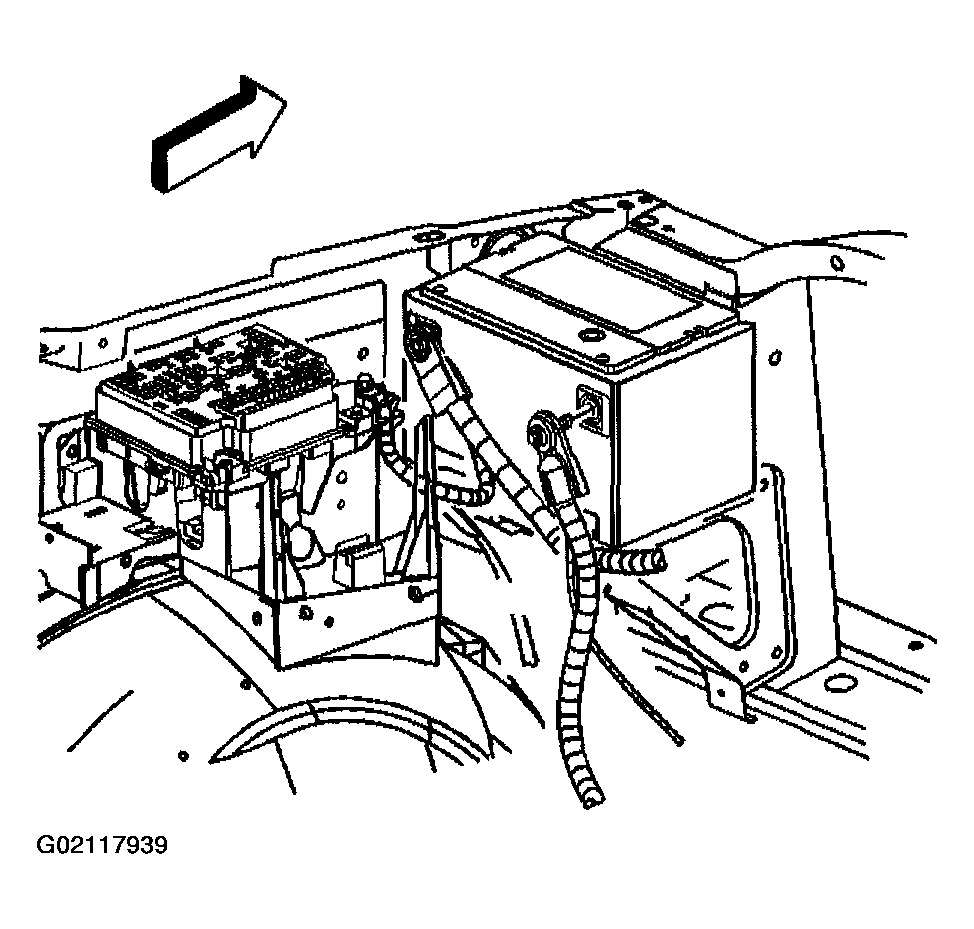

Fig 4: Connecting Negative Battery Cable
Courtesy of GENERAL MOTORS CORP.
