Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .

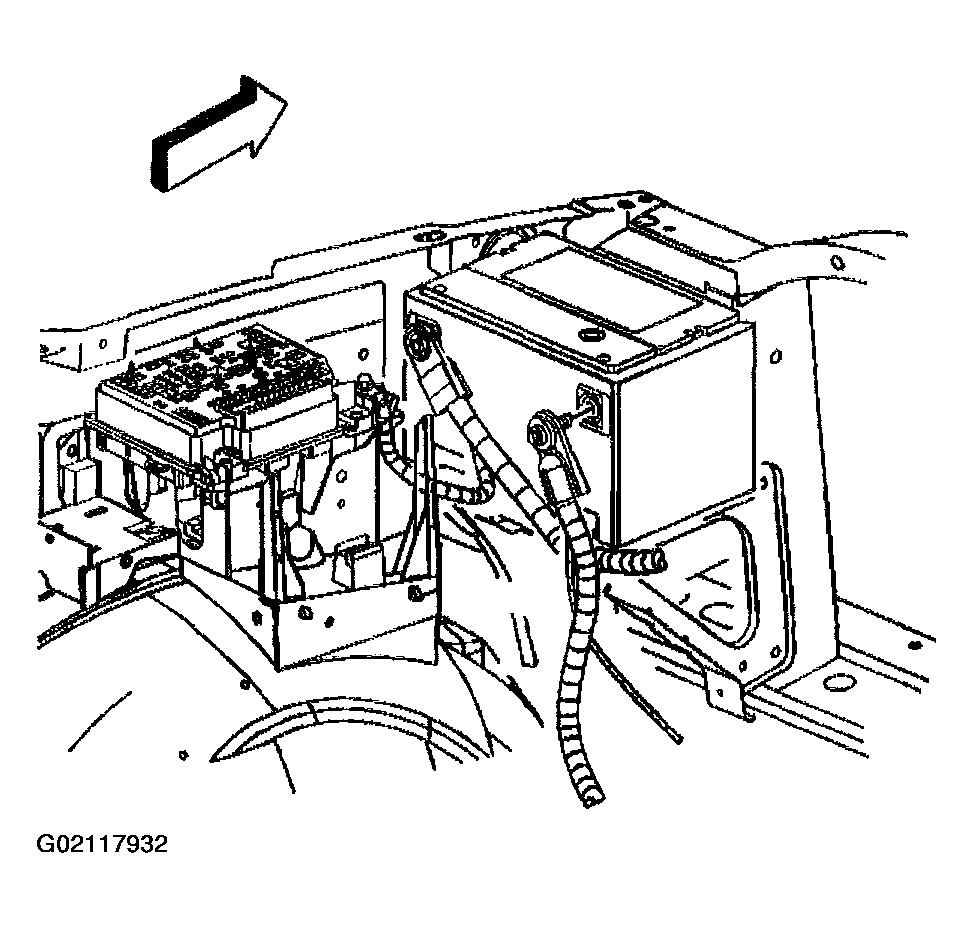

    Fig 1: Disconnecting Negative Battery Cable
    G02117932Courtesy of GENERAL MOTORS CORP.
  2. Unsnap the positive battery cable cap.
  3. Disconnect the positive battery cable.

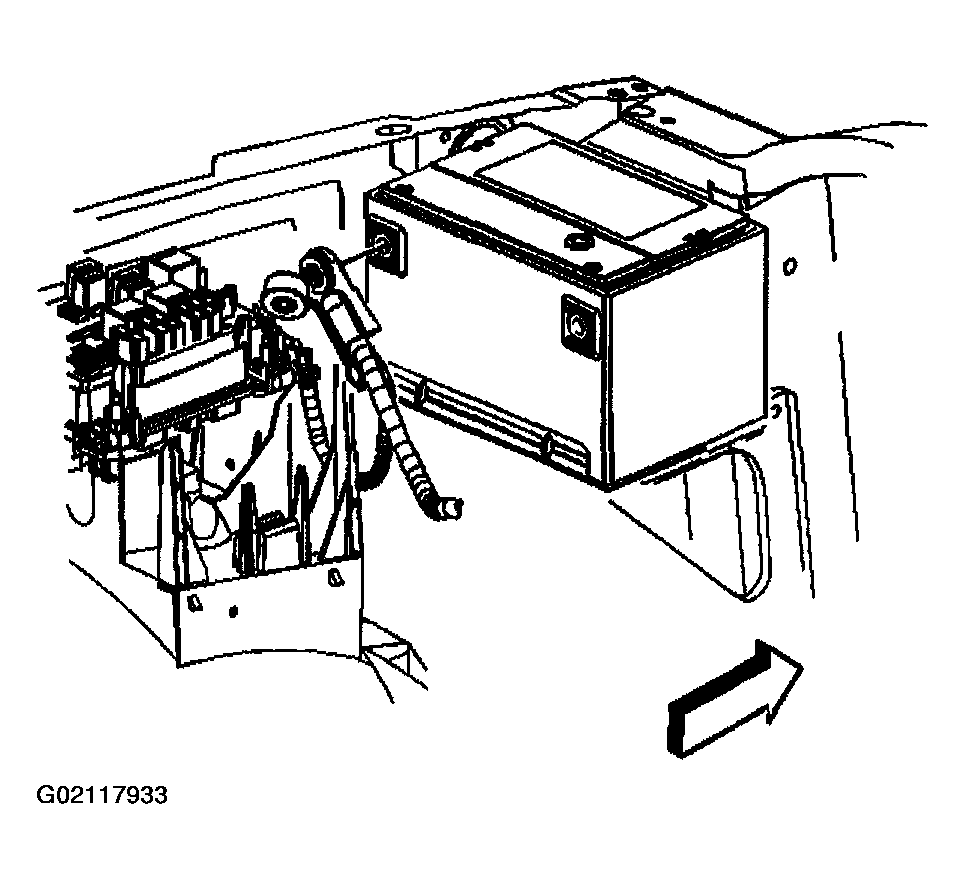

    Fig 2: Disconnecting Positive Battery Cable
    G02117933Courtesy of GENERAL MOTORS CORP.
  4. Remove the front end diagonal brace bolts and brace.

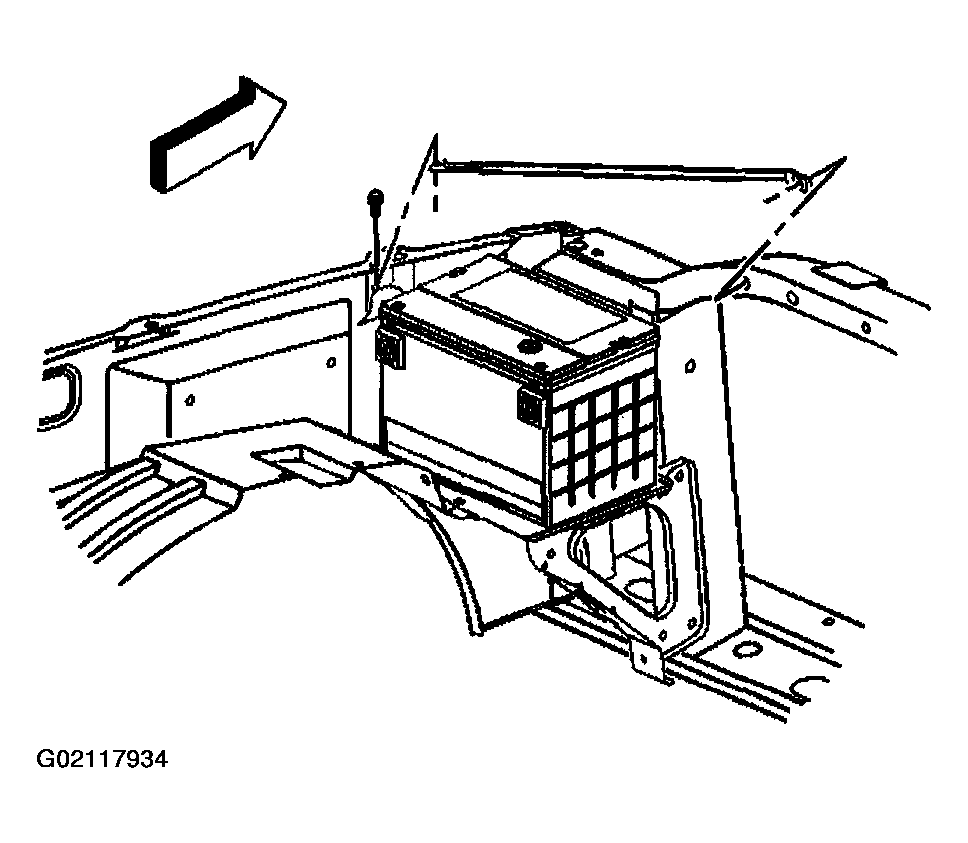

    Fig 3: Removing Front End Diagonal Brace Bolts And Brace
    G02117934Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery hold down retainer bolt and retainer.
  6. Remove the battery.
  7. Remove the battery insulator, if necessary.

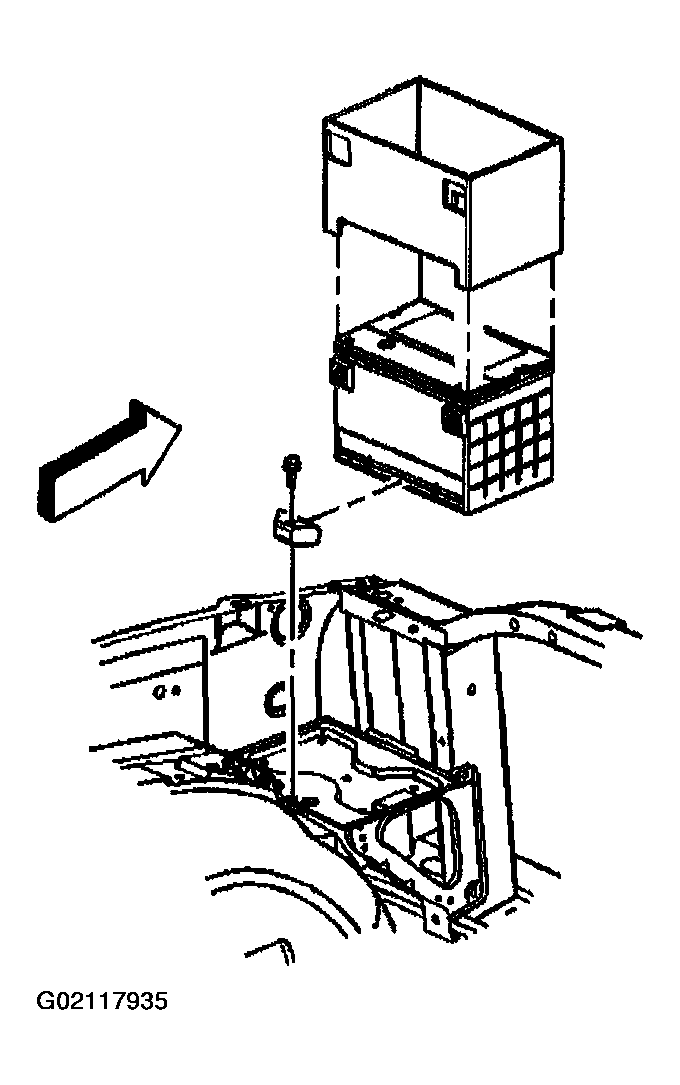

    Fig 4: Removing Battery Hold Down Retainer Bolt And Retainer
    G02117935Courtesy of GENERAL MOTORS CORP.
