Installation Procedure

  1. Install the battery tray.
  2. Install the bolts (2) to the battery tray reinforcement until snug.

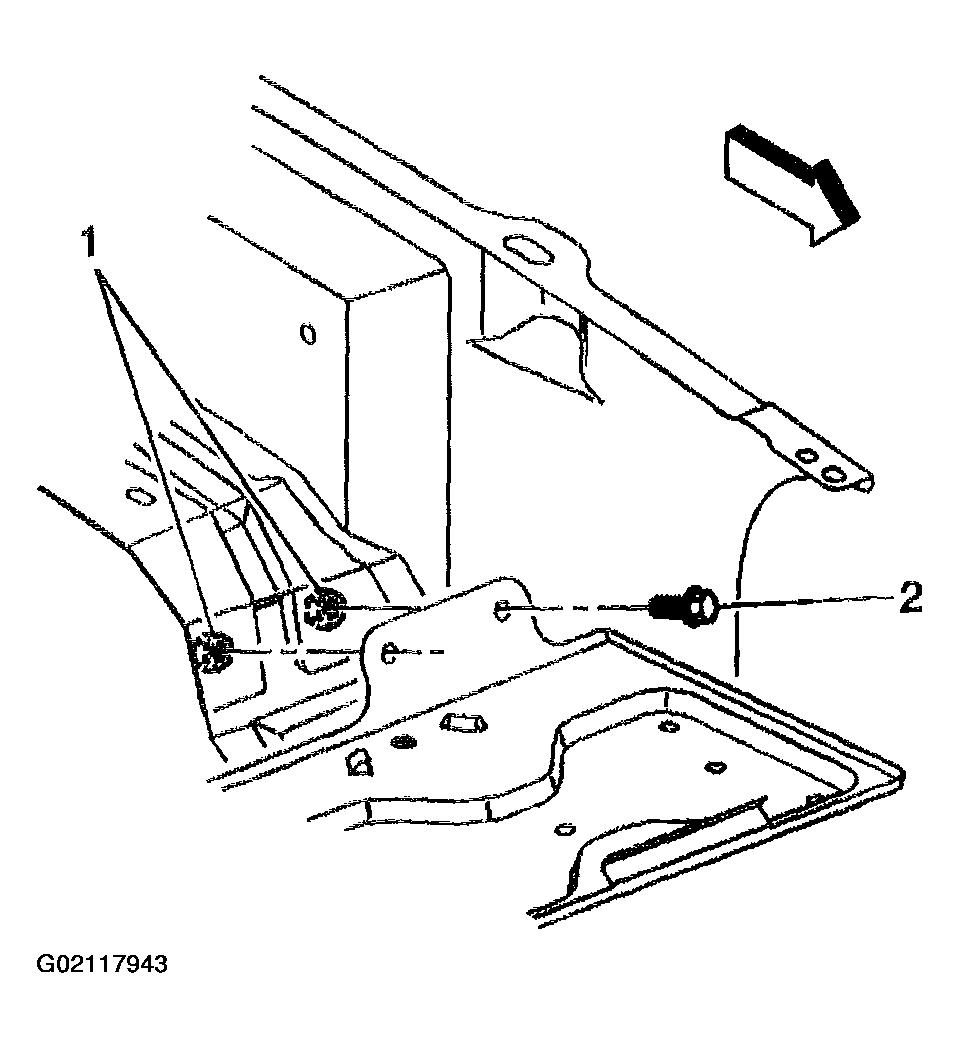

    Fig 1: Installing Bolts To Battery Tray Reinforcement Until Snug
    G02117943Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts (1) to the fender inner panel until snug.

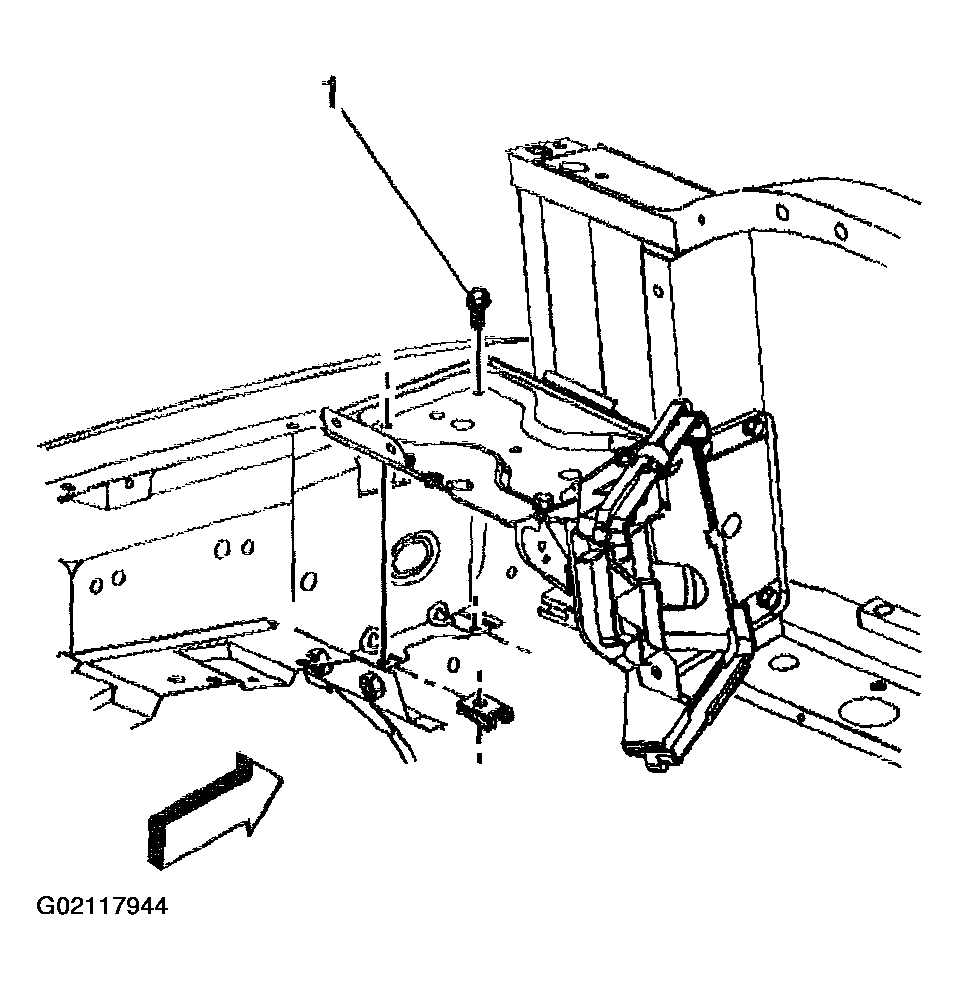

    Fig 2: Installing Bolts To Fender Inner Panel Until Snug
    G02117944Courtesy of GENERAL MOTORS CORP.
  4. Install the bolts to the battery tray support until snug.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices
  5. Tighten the battery tray bolts.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  6. Install the battery. Refer to BATTERY REPLACEMENT  .

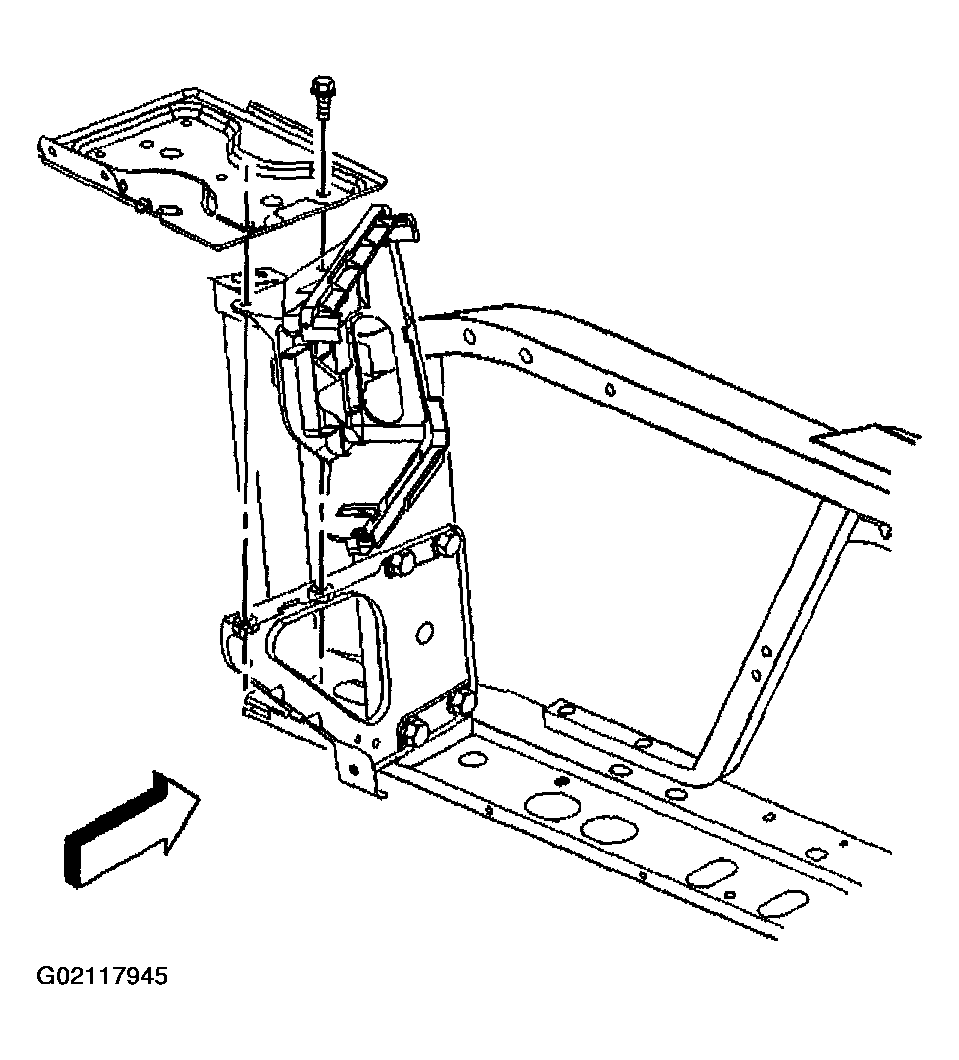

    Fig 3: Installing Bolts To Battery Tray Support
    G02117945Courtesy of GENERAL MOTORS CORP.
