Removal Procedure

  1. If necessary, remove the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, AND 6.0L (RPO LQ4) or ENGINE SIGHT SHIELD REPLACEMENT (6.0L (RPO LQ9) in Engine Mechanical - 8.1L.
  2. Remove the engine wiring harness ground bolt.
  3. Reposition the engine wiring harness ground and ground strap.
    Fig 1: Removing Engine Wiring Harness Ground Bolt
    G02117946Courtesy of GENERAL MOTORS CORP.
  4. Remove the ground strap nut from the stud at the front of dash.
  5. Remove the ground strap from the stud.

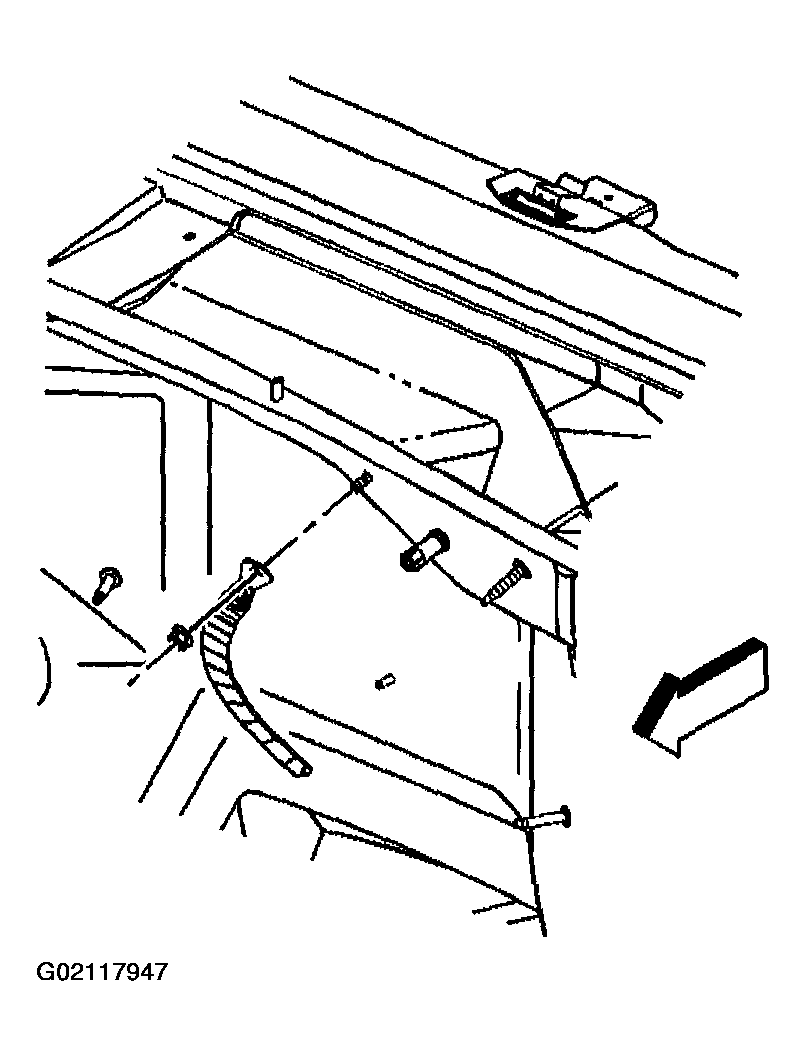

    Fig 2: Removing Ground Strap Nut From Stud
    G02117947Courtesy of GENERAL MOTORS CORP.
