Shift Lock Control Wiring Schematics

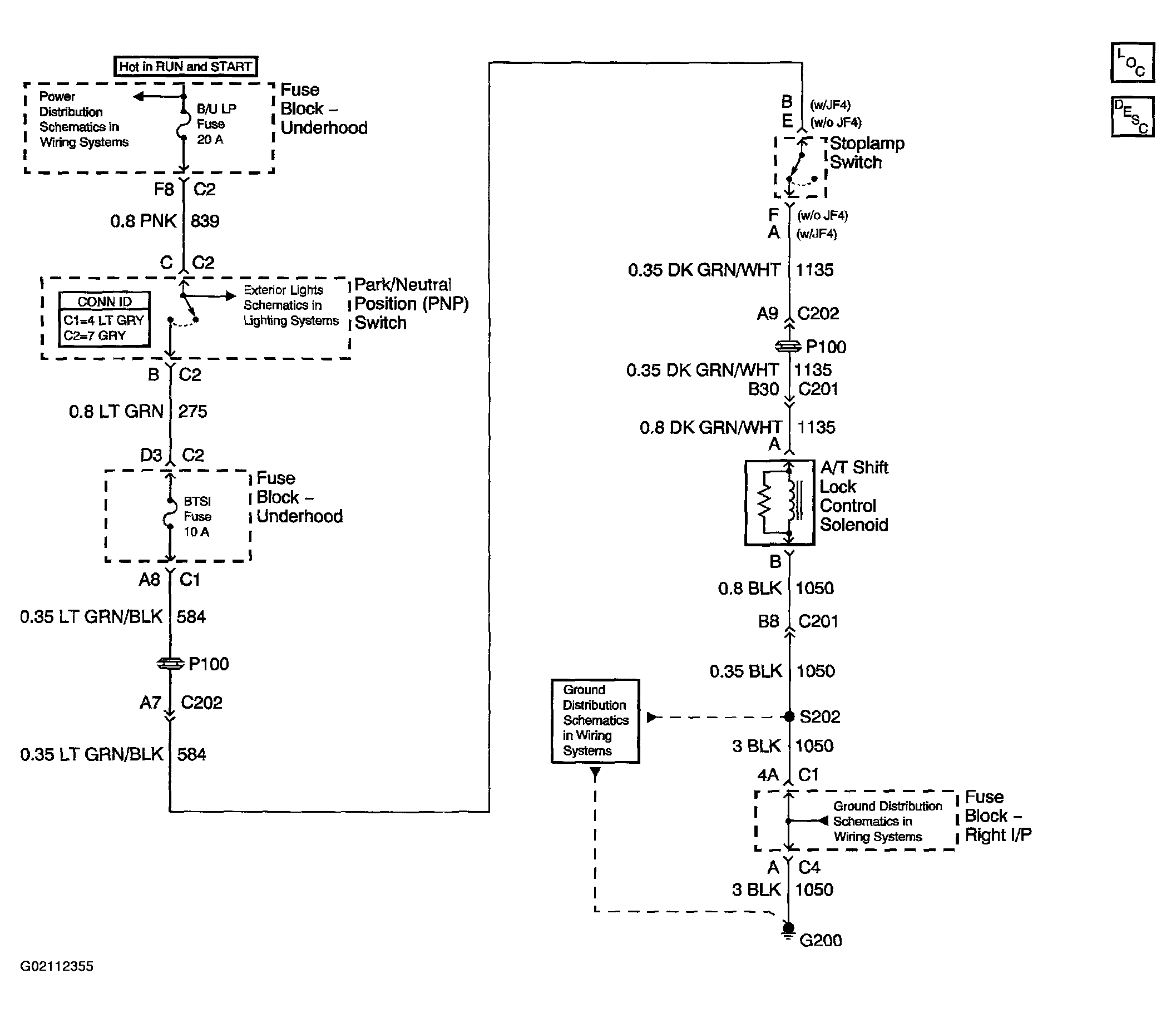

Fig 1: Automatic Transmission Shift Lock Control Schematic
G02112355Courtesy of GENERAL MOTORS CORP.
